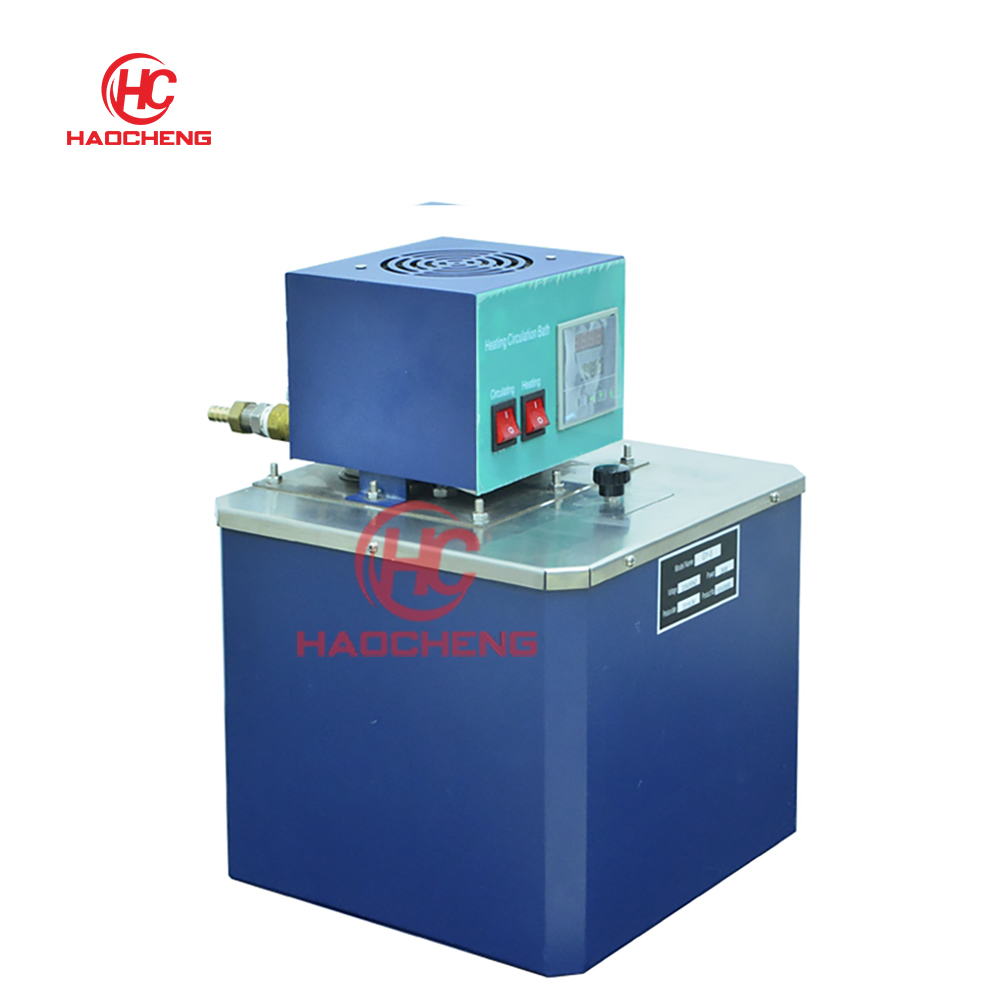

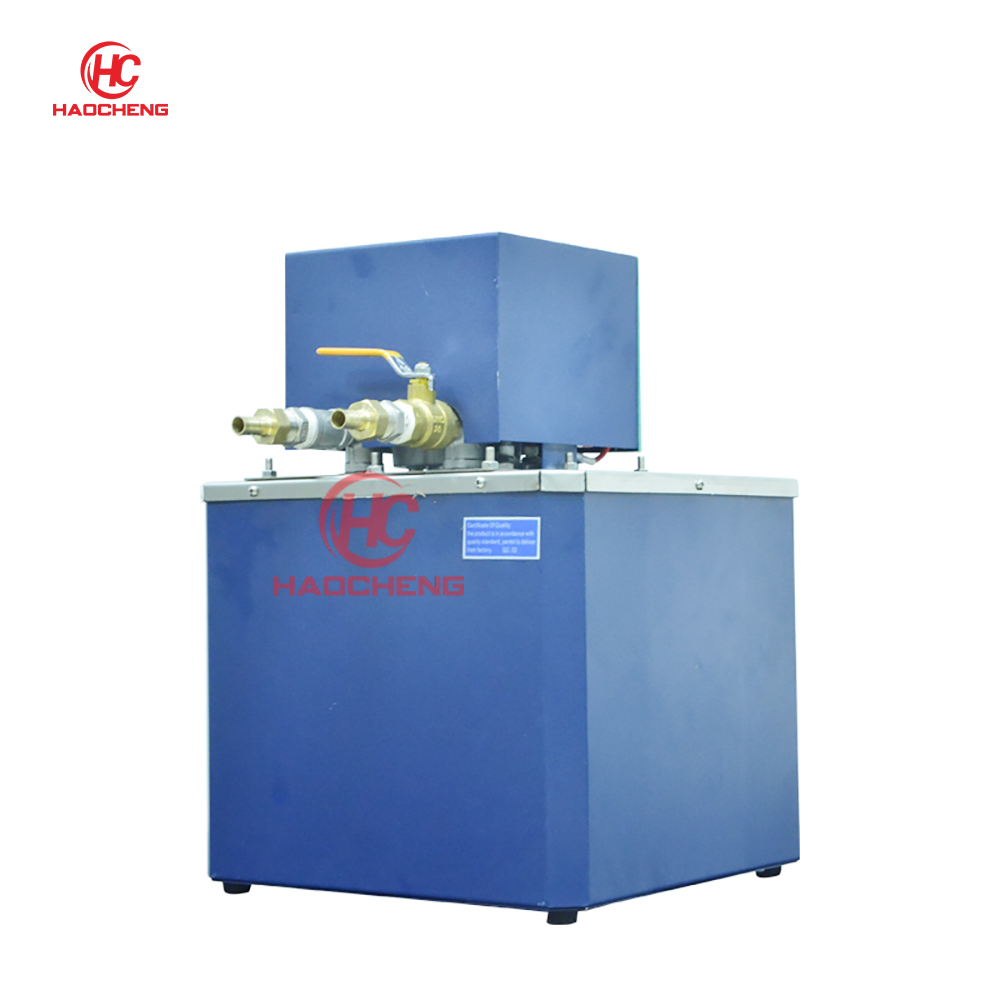

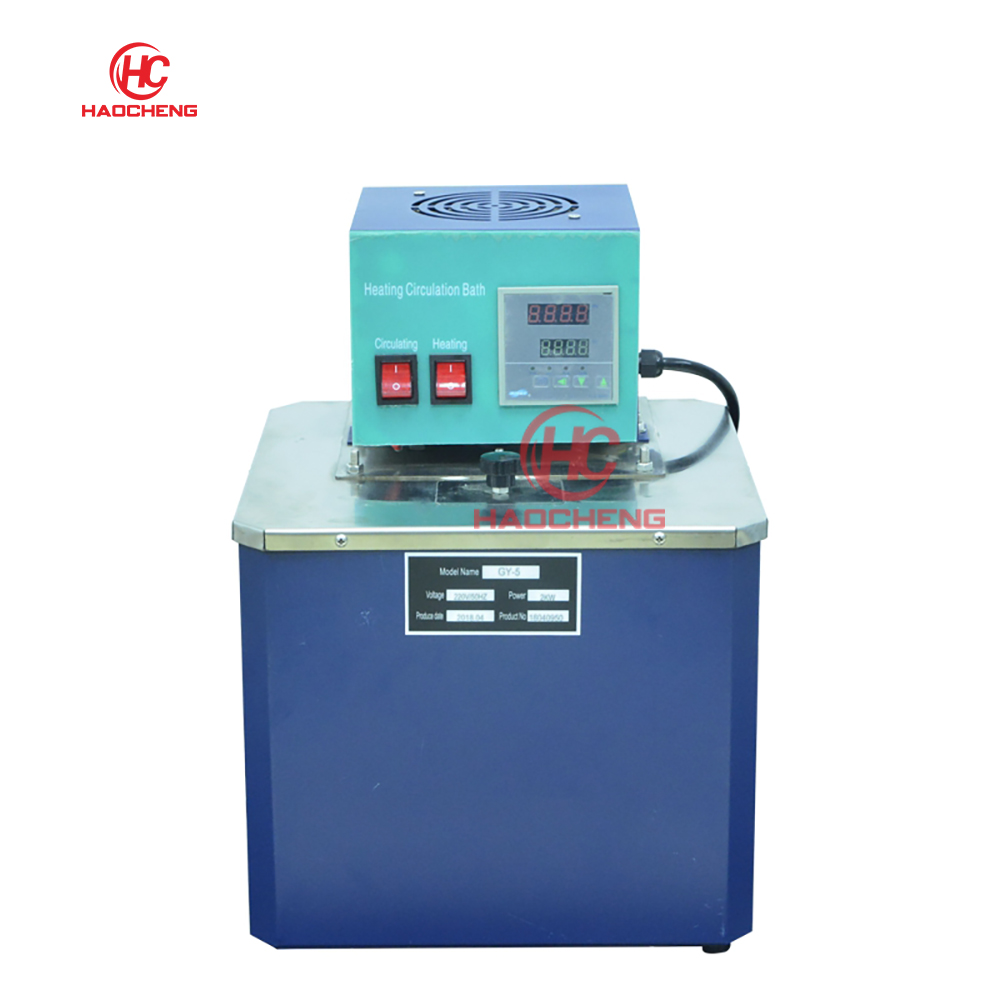

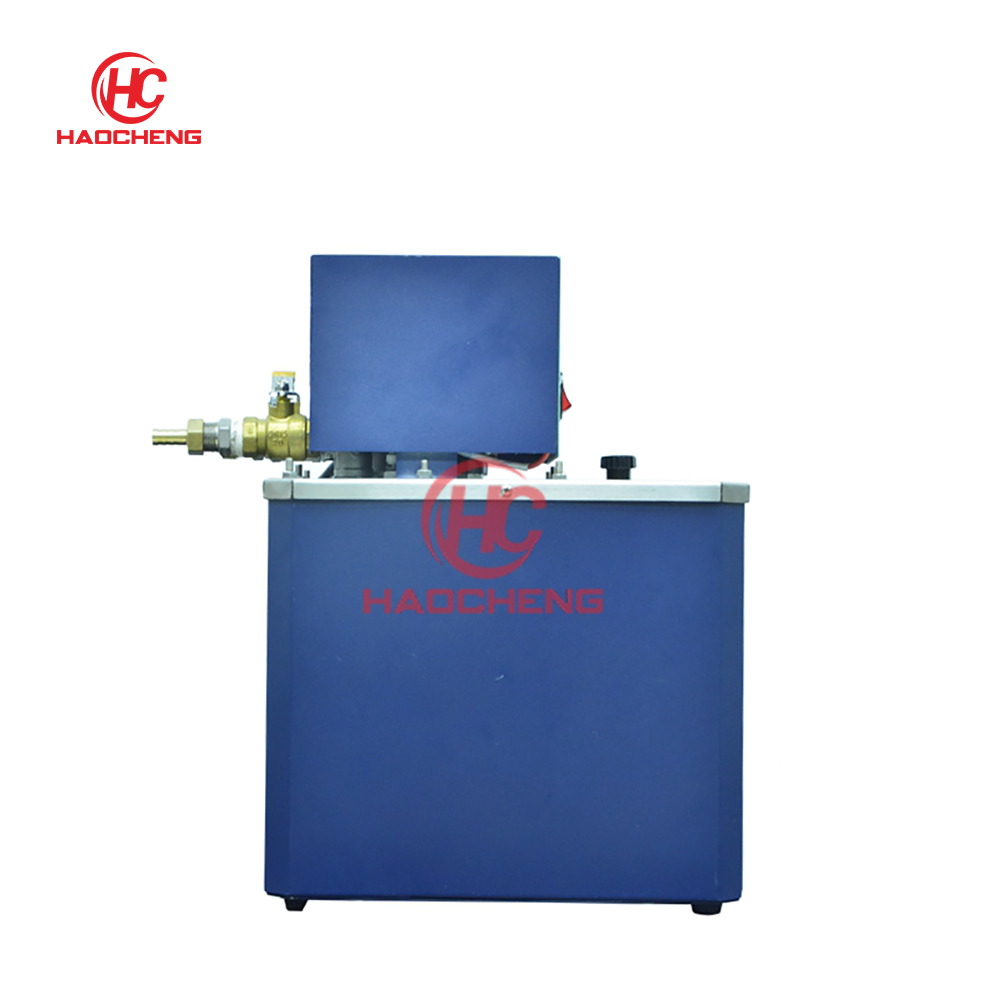

High Temperature Circulating Water/ Oil Bath

Introduction：

High Temperature Circulating Water/ Oil Bath

Print the current page

Tel： +86-134-2513-4344

Email：hcinstrument@163.com

Share：
Order

Introduction


High-temperature circulating oil baths are widely used in petroleum, chemical, electronic instrumentation, physics,

chemistry, biological engineering, medicine and health, life sciences, light industry food, physical testing and chemical

analysis research departments, universities, and enterprises for quality inspection and production. It can also be used

as a heat source for direct heating and auxiliary heating.


Features


◎ The pot is made of 304 stainless steel, and the outer shell is cold-sprayed.

◎ The heating tube is of upper and lower coil type, the heating temperature is more uniform, and the temperature

difference is smaller.

◎ The circulating pump is built-in, and the pump head is inside the bladder without oil leakage.

◎ The tilt button (ON-OFF) switch controls the heating and circulation functions respectively.

◎ Constant temperature bath temperature digital display, PT100 sensor + stainless steel probe.

◎ The upper part of the pot shell is equipped with a liquid inlet to observe the liquid level.

◎ This product is dual-purpose for water and oil. When the operating temperature is higher than 99 degrees, it needs to

be equipped with open high temperature methyl silicone oil. The lower the viscosity, the better the circulation effect.

Specification



Model

GY-5

GY-20

GY-50

GY-100

GY-200

Heating Power (W)

2000

3000

5000

8000

24000

Voltage

220V/110V

220V/110V

220V/110V

380V

380V

Flow (L/Min)

8

12

35

Lift (M)

4

7

20

Temperature Range

RT-250 ℃

Temperature Accurancy

+/-1 ℃

Bath Capacity

Φ250 x 250H

 (mm),12L

385 x 270 x 260

 (mm),27L

425x 410 x 270

 (mm),47L

480x 410 x 330

 (mm),65L

580x 580 x 580

 (mm),195L

Min Oil in Bath(L)

 9

17

30

45

150

Dimensions (W x H x D)

380 x380 x480mm

660 x570 x480mm

650 x570 x590mm

720 x650 x600mm

720x720x1200mm

Weight

18KG

34KG

38KG

45KG

103KG
