Model

DZ-1BC II

DZ-2BC II

DZ-3BC II

Heating Mode

Four walls heat conduction and decompression

Function

Temp. Range

RT+10-250 ℃

Useful Vacuum Degree Range

<133Pa

Temp. Resolution Ratio

0.1 ℃

Temp. Motion

±1 ℃

Heating-up Time

80min

100min

120min

Structure

Inner Chamber

High quality hairline stainless steel sheet;

Outer Shell

Cold rolling steel electrostatic spraying exterior

Insulation Layer

Aluminum silicate fiber

Heater

Stainless steel electric heating tube

Observation Window

Bullet proof glass, acrylic exterior protection

Vacuum Meter

Pointer type, accuracy class 2.5

Nozzle Diameter

10mm

Power Rating

0.8kW

1.4kW

2.0kW

Controller

Temp. Control Mode

Two temperature section PID intelligent

Temp. Setting Mode

Touch button setting

Temp. Display Mode

Measuring temperature: display on the four digital tubes upper row ; setting temperature: display on the lower row

Timer

0-9999min(with timing wait function)

Operation Function

Fixed temperature operation, timing function, auto stop

Additional Function

Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory

Sensor

pt100

Safety Device

Over temperature sound-light alarm

Space

Inner Chamber Size(W*L*H)(mm)

300*300*270

415*370*340

450*450*450

Exterior Size (W*L*H)(mm)

480*480*606

560*540*680

640*590*780

Packing Size (W*L*H)(mm)

590*550*750

704*620*814

739*700*889

Volume

24L

52L

91L

Number of Shelf

2

Load per Rack

15kg

Shelf Space

100mm

140mm

185mm

(50/60HZ)Current Rating

AC220V/3.6A

AC220V/6.3A

AC220V/9.1A

NW/GW (kg ）

42/52

67/92

82/105

Accessory

Shelf

2

Shelf Frame

4

Optional Accessories

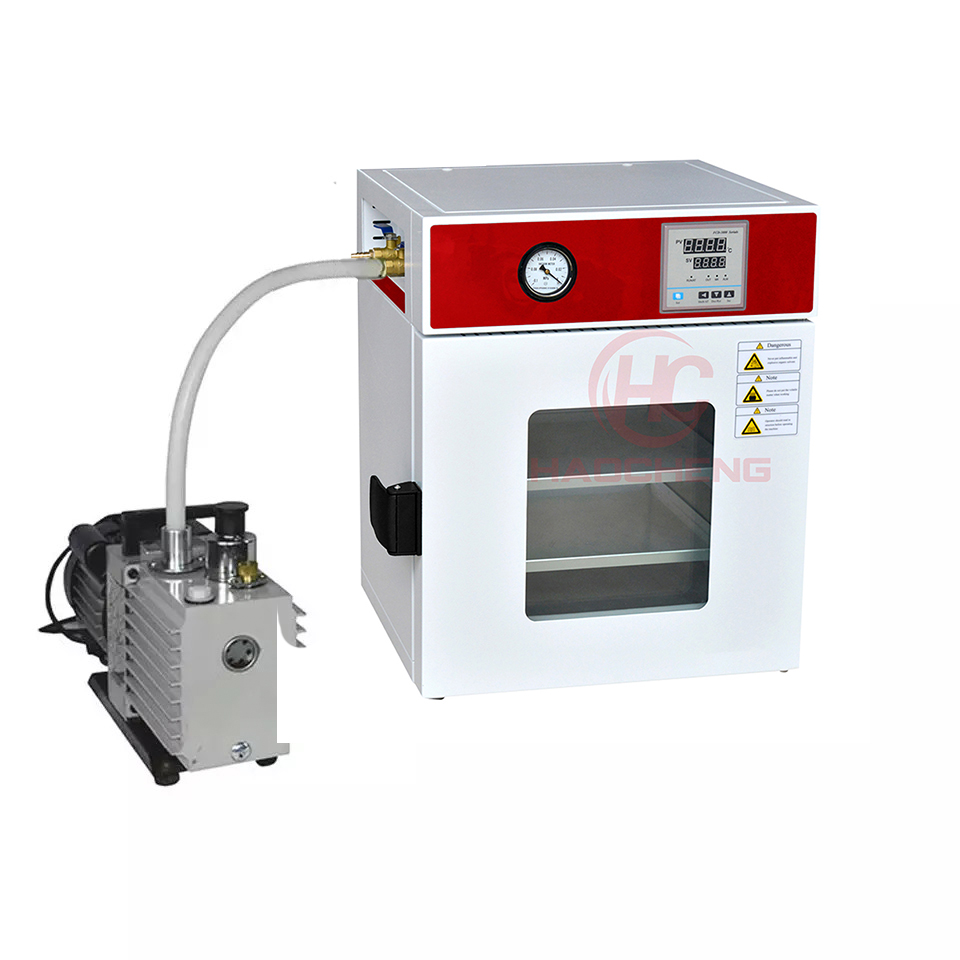

Silica gel connecting pipe, vacuum pump
