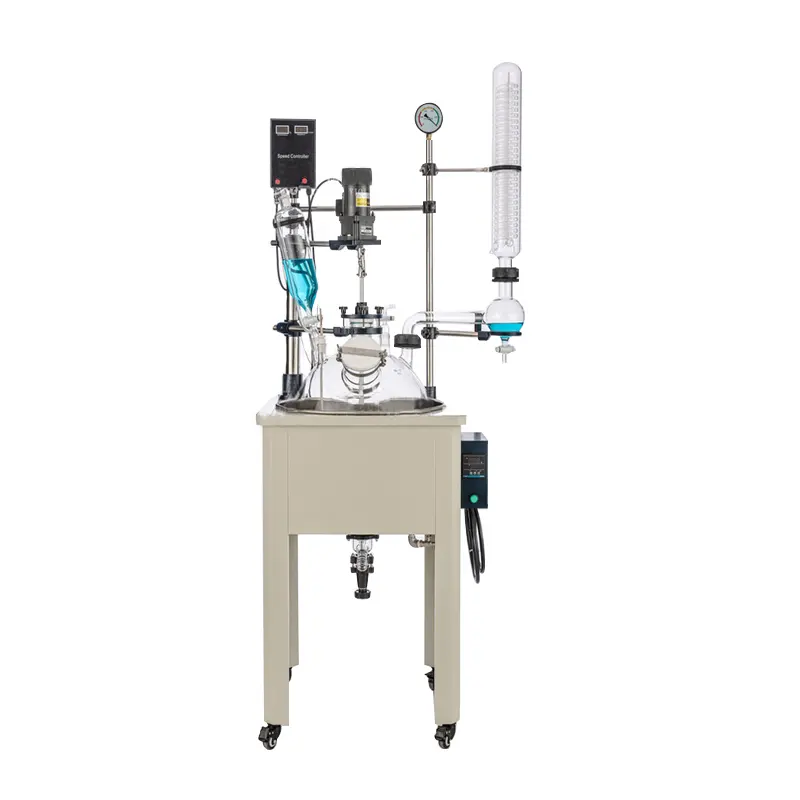

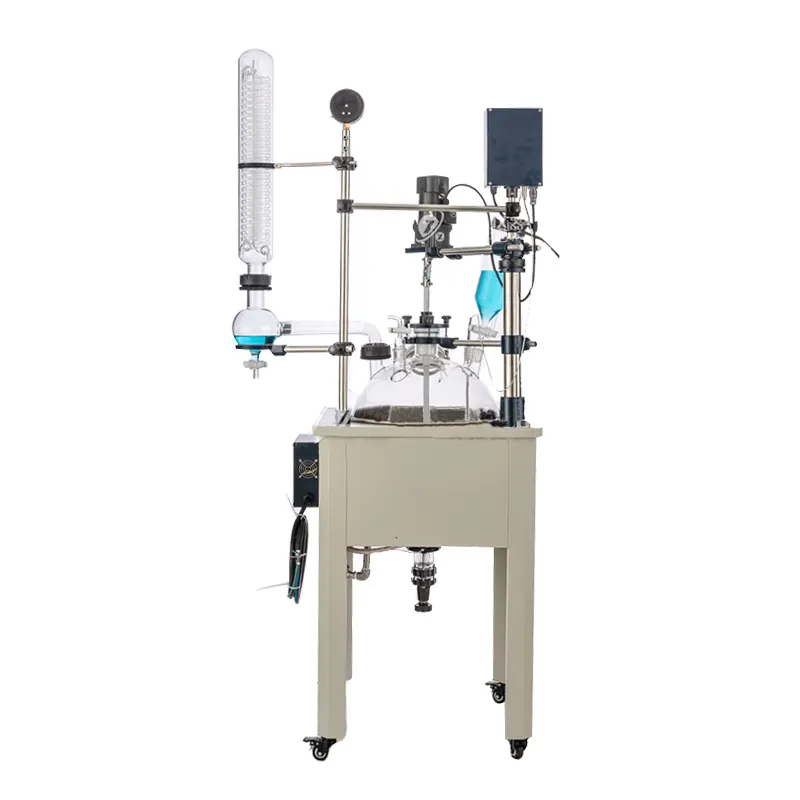

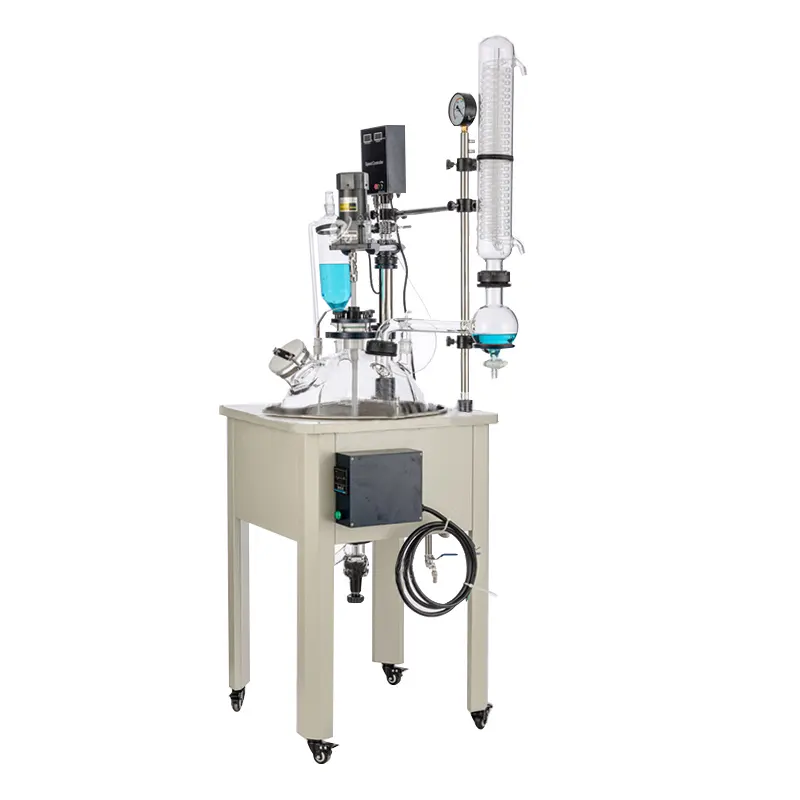

10L-200L Single Glass Reactor

Introduction：

10L-200L Single Glass Reactor

Print the current page

Tel： +86-134-2513-4344

Email：hcinstrument@163.com

Share：
Order

Introduction

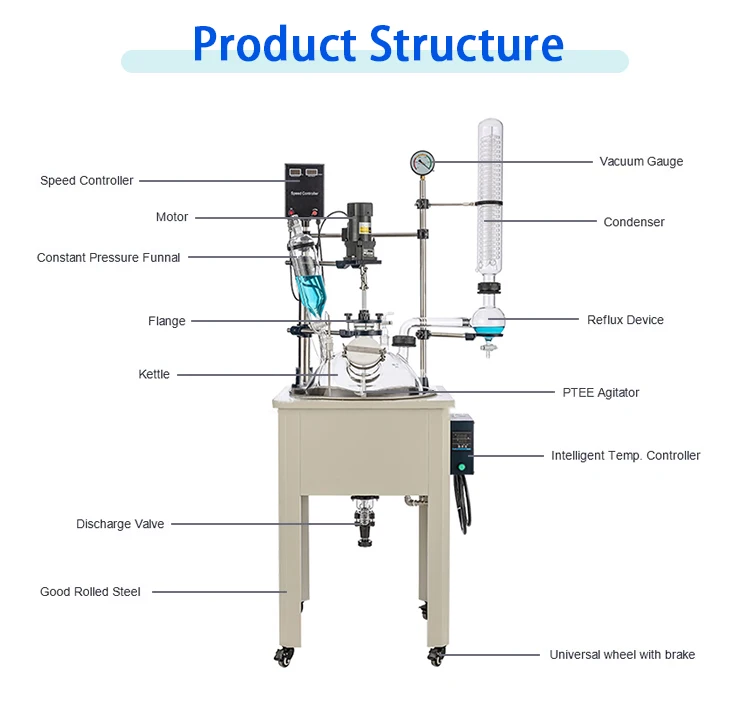

Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring,



oil/water heating or heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant



temperature condition. It is also a colsed system on the whole. Single glass reactor inner placed reaction solvent



which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the



same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and



distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new



materials, used for preparation experiment and production equipment.



Features


◎

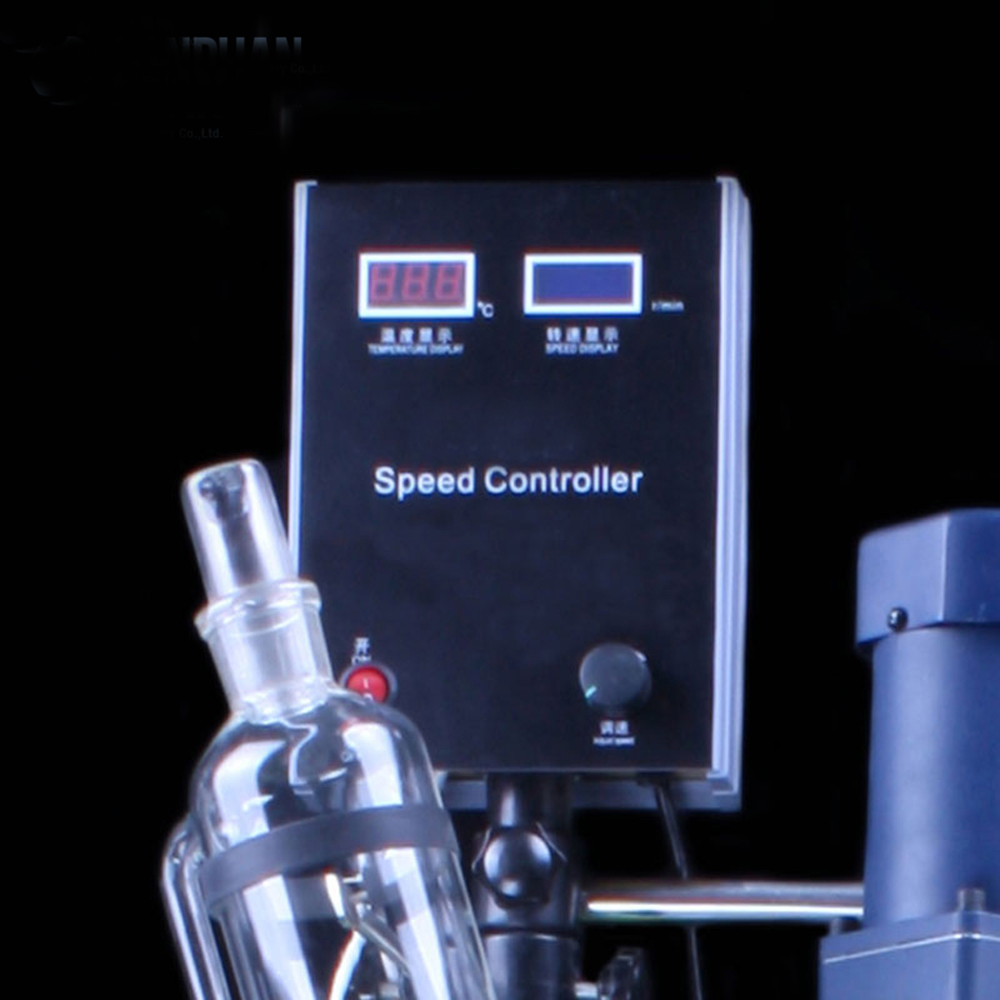

Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can



 work continuously;



◎

Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big



bottle design, hand out cleaning;



◎

PTFE mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among



 the similar products;



◎

Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel),



 compact and solid, stable and reliable without shaking when mixing;



◎

Casters with brake fixed, it is convenient and reliable for mobile use;



◎

The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;



◎

The intelligent PID control, temperature control is accurate and convenient;



◎

Integral structure is scientific design and beautiful appearance, convenient for operation;



◎

Explosion-proof series available. (Optional)

Specification



Model

HCF-1L

HCF-2L

HCF-3L

HCF-5L

HCF-10L

HCF-20L

HCF-50L

HCF-100L

HCF-200L

Capacity (L)

1L

2L

3L

5L

10L

20L

50L

100L

200L

Vacuum (Mpa)

0.098

Voltage

220V

380V

Heating Power

(W)

1500

1500

2000

2000

3000

5000

8000

8000

12000

Heating Mantle Power (W)

530

650

730

1100

2100

3000

5000

-

-

Stirring Power

(W)

40

40

90

120

200

750

Rotation Speed

RPM

0-800

0-450

0-280

Temperature Accurancy

+/-1

Stirring Rod

Φ80X350H(mm)

Φ80X400H(mm)

Φ90X500H(mm)

Φ90X530H(mm)

Φ150X600H(mm)

Φ190X650H(mm)

Φ190X900H(mm)

Φ240X1200H(mm)

Φ240X1300H(mm)

Temperature Using Range ℃

RT-250

RT-350

Reactor Body

Ball Body

Cylindrical Body
