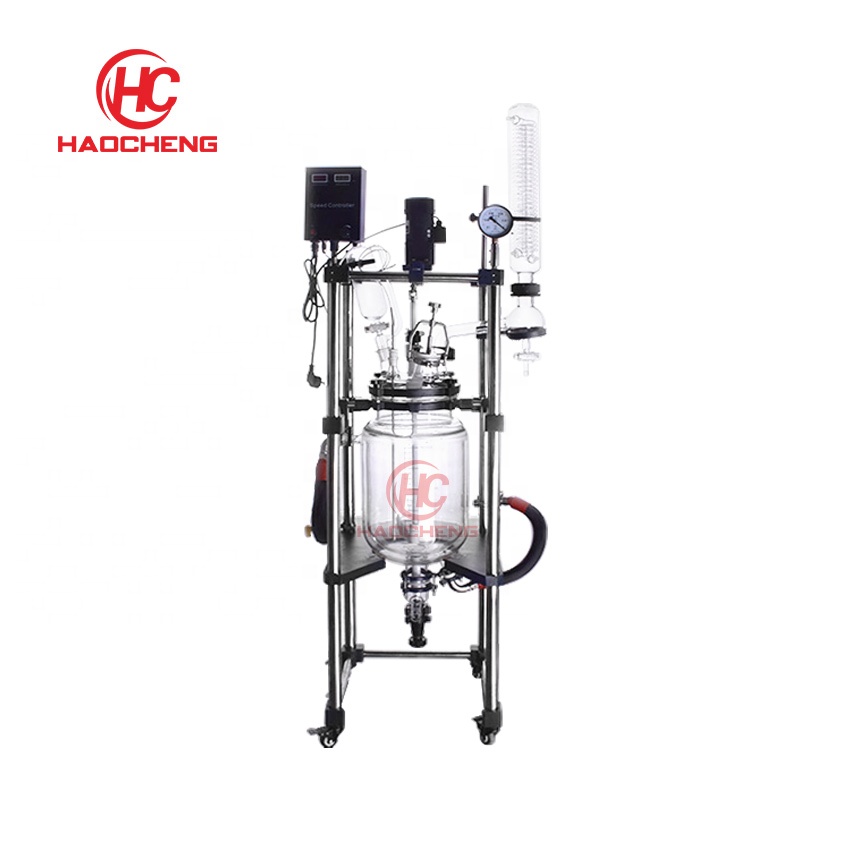

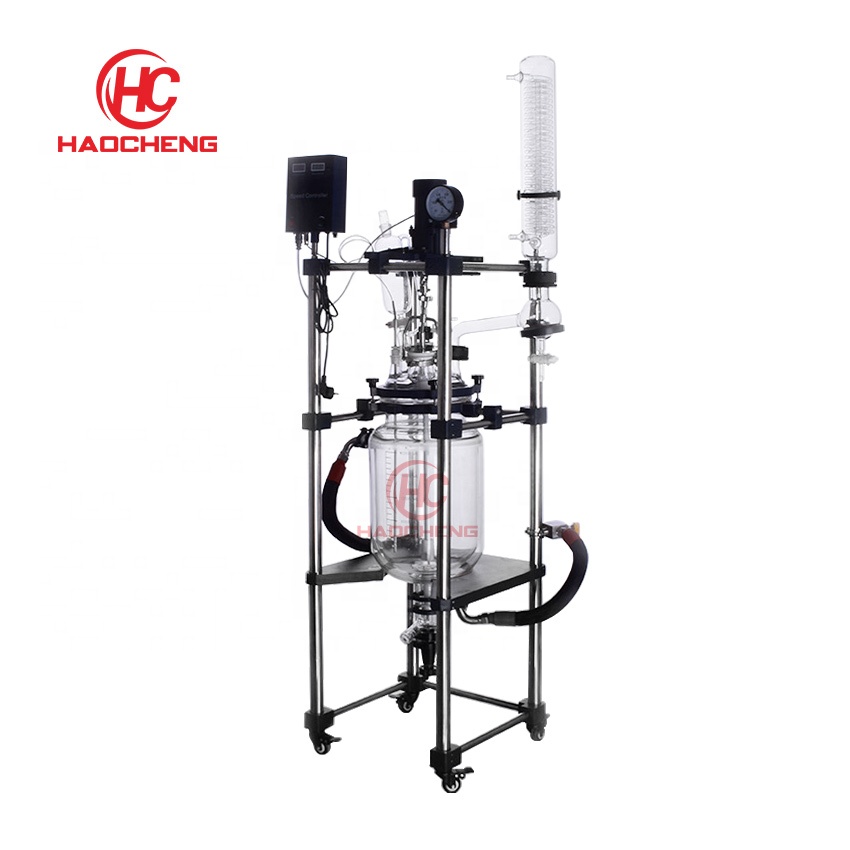

10L -200L Double Jacked Glass Reactor

Introduction：

Double Jacked Glass Reactor

Print the current page

Tel： +86-134-2513-4344

Email：hcinstrument@163.com

Share：
Order

Introduction


Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature



and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation,

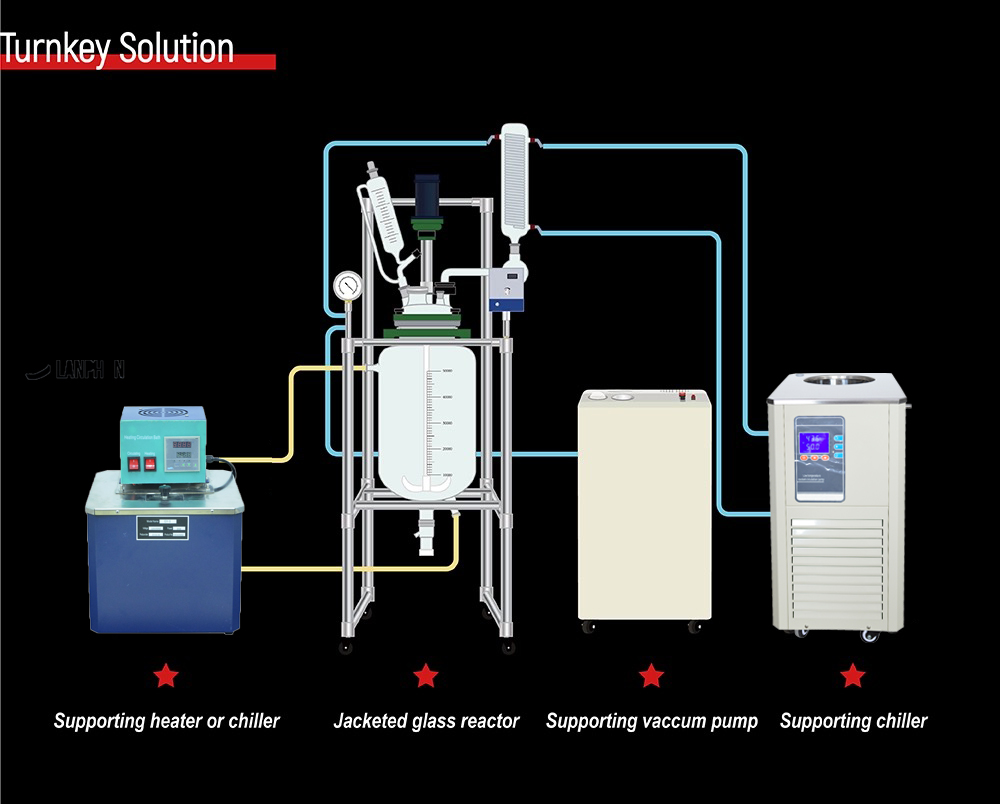

and hemoginization.Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials



created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal



for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.



Features




◎

Use PTFE composite seal, it can maintain high vacuum degree.



◎

Use efficient condenser to ensure high recovery rate.



◎

The complete set of glass use GG17 high borosilicate glass with good chemical and physical properties.



◎

The glass inter layer interface is added with hot oil, through the loop, it can do reaction under the condition of high



temperature; the glass inter layer interface added with cooling fluid can carry on reaction under the condition



of low-temperature.



◎

It can be added with tap water to quickly take away reaction heat.



◎

Discharged material has flanged opening and PTFE valve, without dead angle inside the container, it can be demounted



 to facilitate the discharge of solid materials.



◎

Digital mixing motor, frequency conversion control, matched with a torque increasing of reducer.



◎

Reasonable structure and selected materials. The mechanical components use stainless steel and aluminum-alloy



pieces, the glass pieces use high borosilicate glass with high temperature resistance and good chemical properties.



Electrical components parts: the main components use original imported devices.



◎

Explosion-proof series available. (Optional)

Specification



Model

HGS-1L

HGS-2L

HGS-3L

HGS-5L

HGS-10L

HGS-20L

HGS-50L

HGS-100L

HGS-200L

Reaction Kettle Capacity (L)

1L

2L

3L

5L

10L

20L

50L

100L

200L

Jacketed Volume (L)

0.4

0.5

0.6

0.8

6

8

12

25

40

Voltage

220V /110V

Stirring Power

(W)

40

40

90

120

200

750

Rotation Speed

RPM

0-1100

0-450

0-280

Temperature Accurancy

+/-1

Stirring Rod

Φ80X350H(mm)

Φ80X400H(mm)

Φ125X600H(mm)

Φ125X600H(mm)

Φ150X600H(mm)

Φ190X650H(mm)

Φ190X900H(mm)

Φ240X1200H(mm)

Φ240X1300H(mm)

Vacuum (Mpa)

0.098
