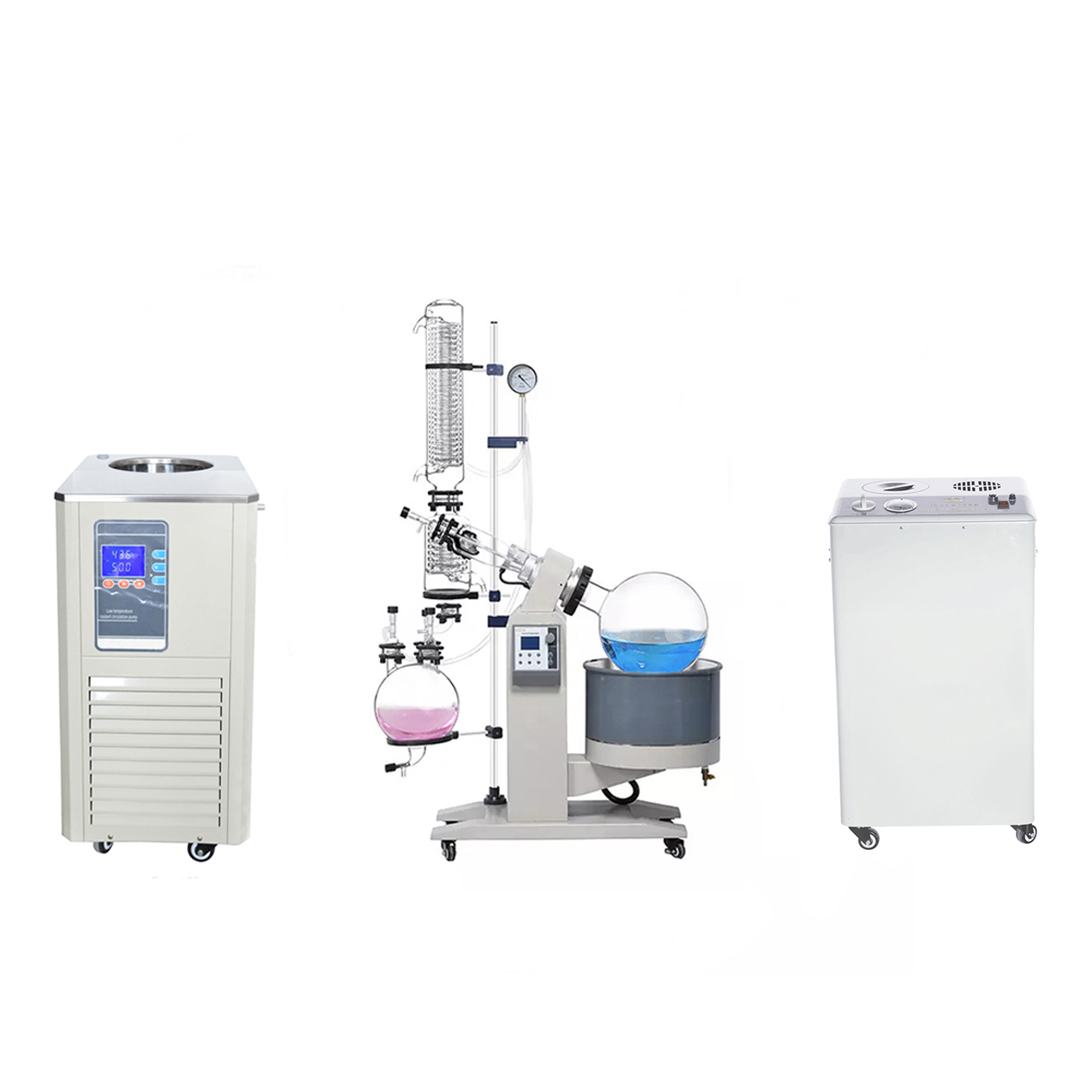

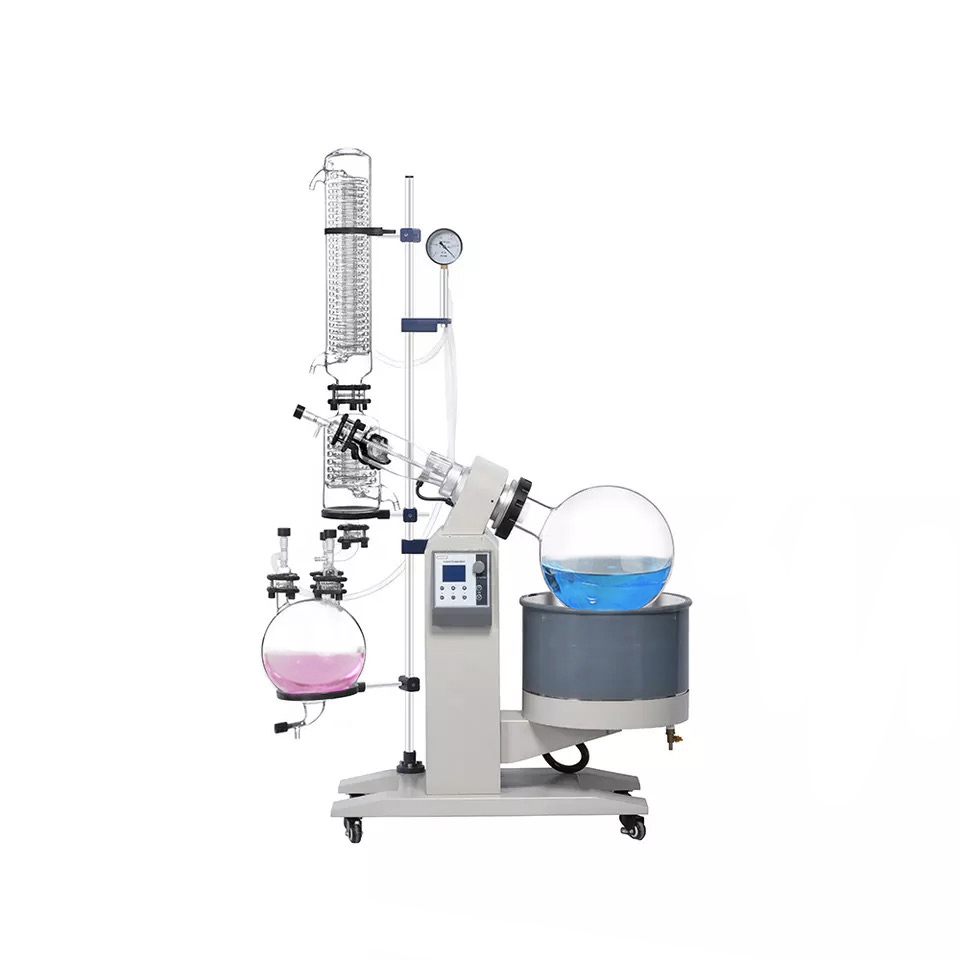

HEA-50 50L Rotary Evaporator with Electric Lift

Introduction:

HEA-50 50L Rotary Evaporator with Electric Lift

Print the current page

Tel: +86-134-2513-4344

Email:hcinstrument@163.com

Share:

Introduction


A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents



from samples by evaporation. It is widely applied in such experiments such as concentration, evaporation,



distillation, separation of chemical, using the rotating bottle to dry the powder and crystallization and so on.


Feature

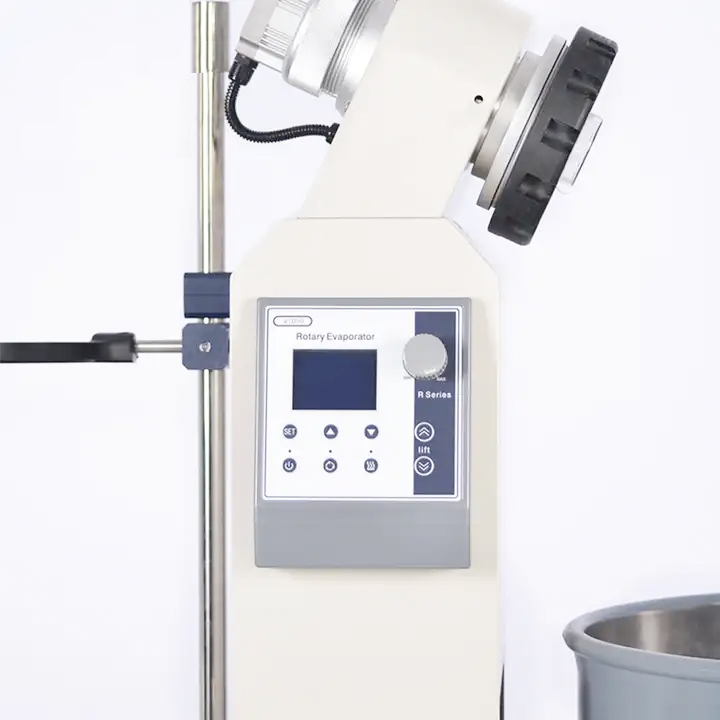

Built-in vacuum controller, High vacuum performance.

Electric lifting with easy and quick operation.

High borosilicate glass 3.3(GG-17), good physical and chemical properties.

PTFE sealing parts and tight sealing to offer high vacuum and high evaporation rate


Specification



Model

HEA-50

Condenser

Vertical Double Condenser

Collect Flask

20L

Rotary Flask

50L,Flange Size #125

Motor Power

250W

Power Voltage

380V/50HZ

Bath Power

8000 W

Bath Volume

Φ 550 *320H(mm), 76L

Bath Material

SS304

Evaporation Rate(Water)

10L/ H

Speed Range

0 - 120 RPM

Lift and Stroke

Electric Lifting, 180 mm

Glass Material

GG-17 Glass

Heating Temperature Range

Rm-99 Degree

Heat Control

PID

Heat control accuracy

±1 Degree

Ultimate Vacuum

0.098 Mpa

Weight

216kg

Dimensions (W x H x D)

1350*770*2360 mm
