Dual Set-up Rotary Evaporator

Introduction：

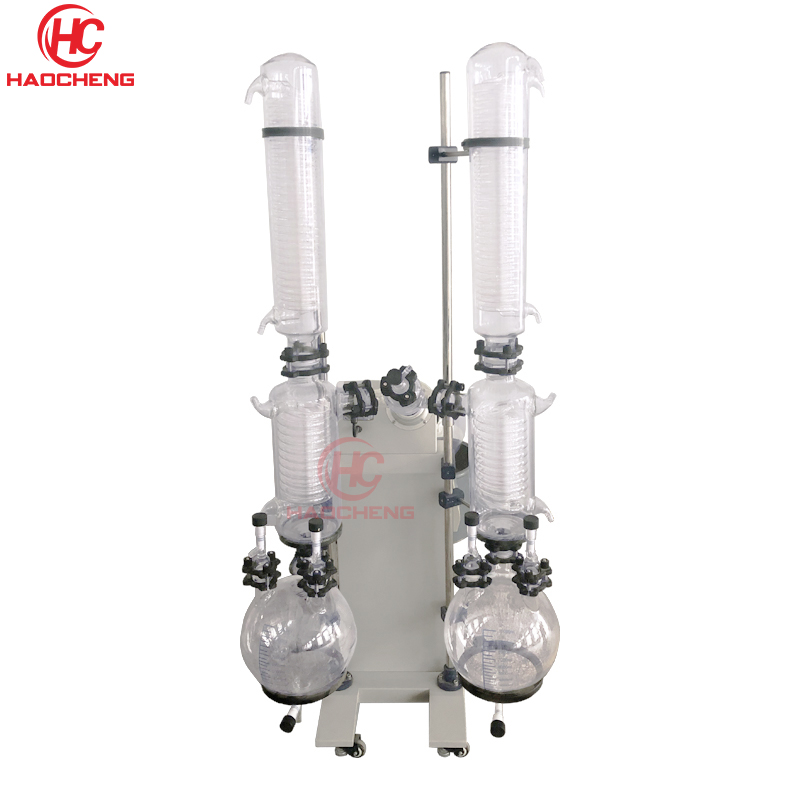

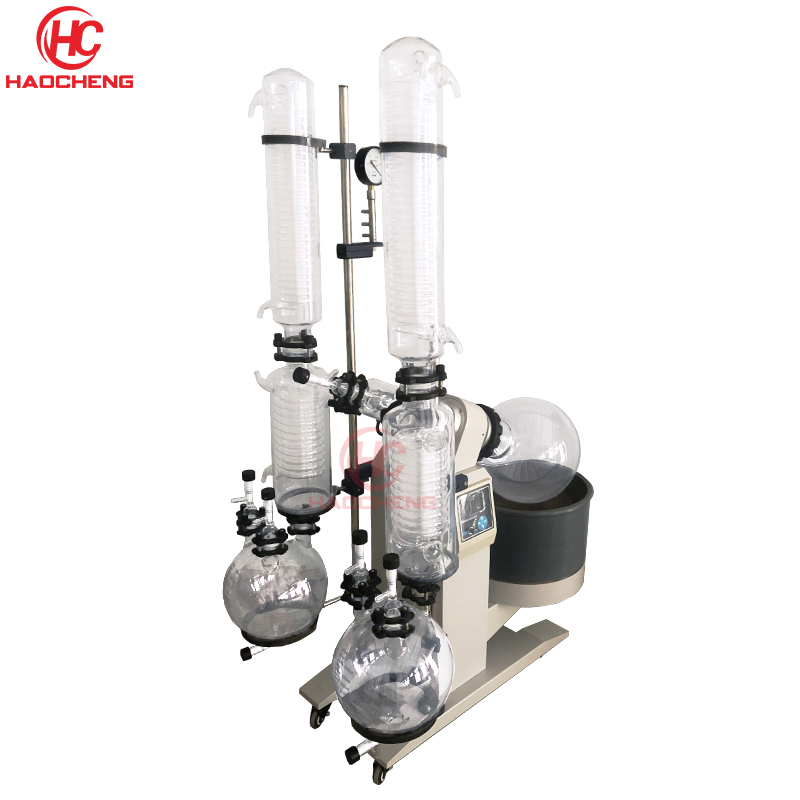

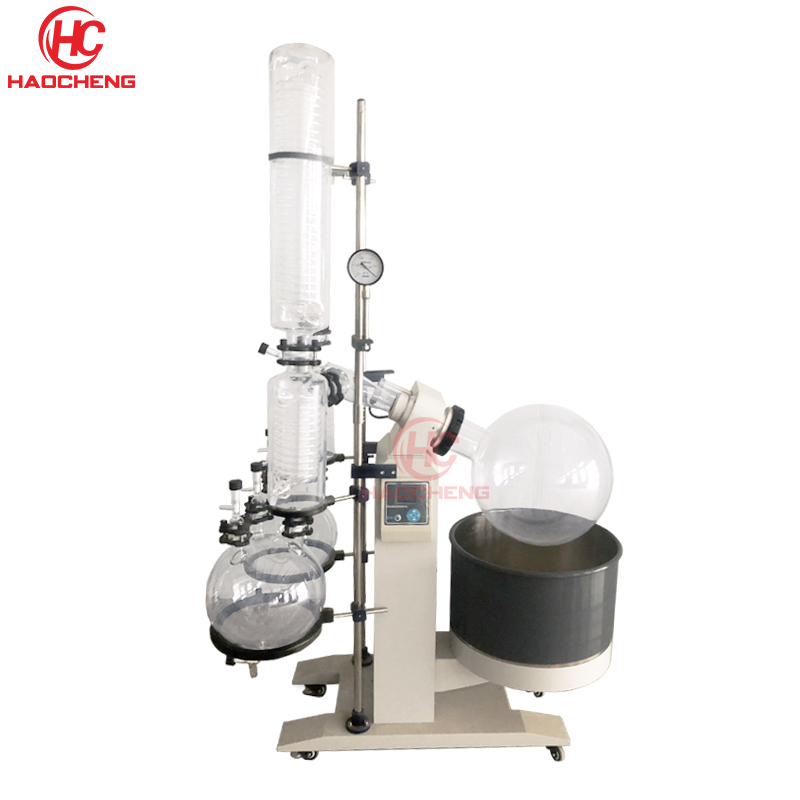

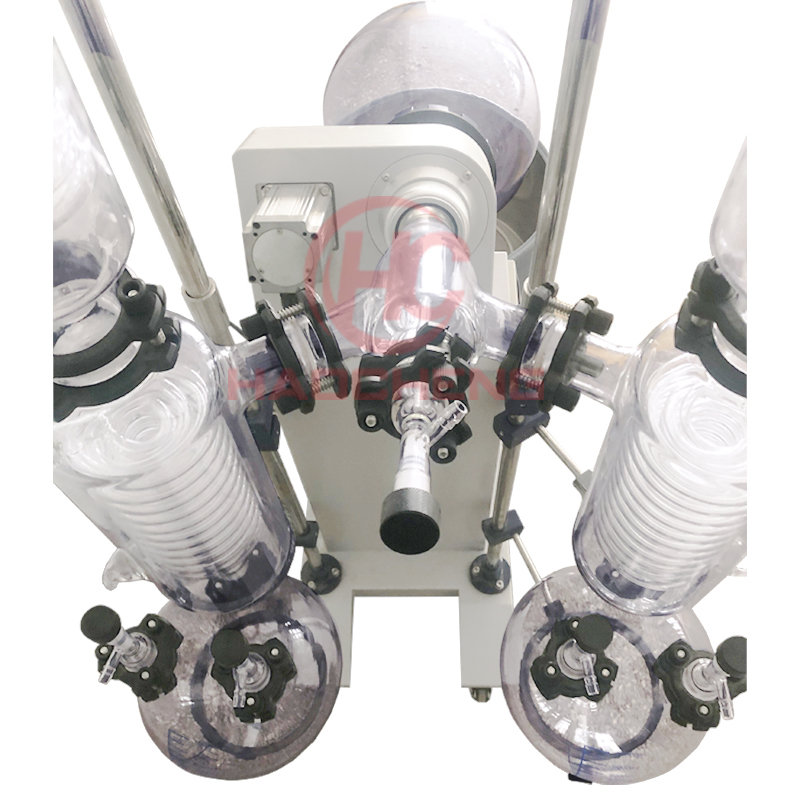

Dual Set-up Rotary Evaporator

Print the current page

Tel： +86-134-2513-4344

Email：hcinstrument@163.com

Share：
Order

Introduction


This unit provides consistent and repeatable results at an affordable price. With dual condensers and dual





receiving flasks made of GG-17 High Borosilicate Glass, all pieces have been designed for efficient use of





surface area and higher capacity's. This means faster recovery without compromising quality. Our





evaporators come standard with safety features such as over-temperature shut off and dry-run protection.





All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving  flask without breaking vacuum.




























Specification



Model

HEA-D10

HEA-D20

HEA-D50

Condenser

Vertical Double Main Condenser, Double Auxiliary Condenser

Collect Flask

5L*2pcs

10L*2pcs

20L*2pcs

Rotary Flask

10L,Flange Size #125

20L,Flange Size #125

50L,Flange Size #125

Motor Power

250W

Power Voltage

220V/50HZ

380V/50HZ

Bath Power

3000 W

4000 W

8000 W

Bath Volume

Φ 350 *220H(mm), 21L

Φ 450 *260H(mm), 41L

Φ 550 *320H(mm), 76L

Bath Material

SS304

Evaporation Rate(Water)

5L/ H

8L/ H

12L/ H

Speed Range

0 - 120 RPM

Lift and Stroke

Electric Lifting, 160 mm

Electric Lifting, 190 mm

Electric Lifting, 180 mm

Glass Material

GG-17 Glass

Heating Temperature Range

Rm-99 Degree

Heat Control

PID

Heat control accuracy

±1 Degree

Ultimate Vacuum

0.098 Mpa

Weight

126kg

156kg

210kg

Dimensions (W x H x D)

98*530*1150 mm

730*670*920 mm

1080*580*1220 mm

840*840*930 mm

1210*690*1390mm

1090*910*950 mm
