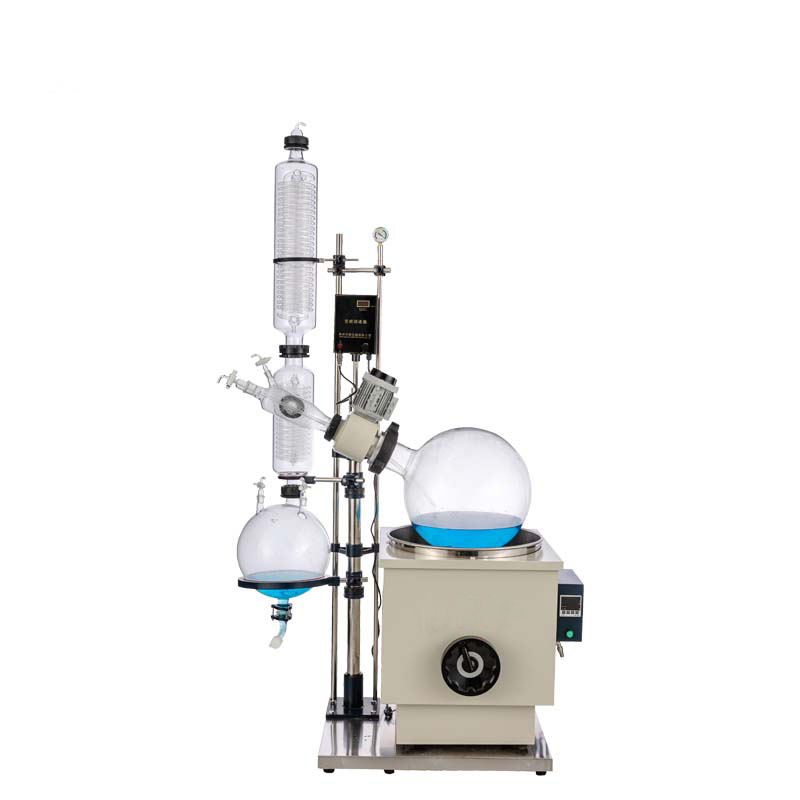

HEM-50 50L Rotary Evaporator with Manual Lift

Introduction:

HEM-50 50L Rotary Evaporator with Manual Lift

Print the current page

Tel: +86-134-2513-4344

Email:hcinstrument@163.com

Share:

Introduction



A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents



from samples by evaporation. It is widely applied in such experiments such as concentration, evaporation,



distillation, separation of chemical, using the rotating bottle to dry the powder and crystallization and so on.


Feature


Built-in vacuum controller, High vacuum performance.

Manual lifting with easy and quick operation.

High borosilicate glass 3.3(GG-17), good physical and chemical properties.

PTFE sealing parts and tight sealing to offer high vacuum and high evaporation rate



Specification


Model

HEM-50

Condenser

Vertical Double Condenser

Collect Flask

20L

Rotary Flask

50L,Flange Size #125

Motor Power

180W

Power Voltage

Rotation Voltage: 220V/50HZ;Heating Bath: 380V/50HZ

Bath Power

8000 W

Bath Volume

Φ 550 *320H(mm), 76L

Bath Material

SS304

Evaporation Rate(Water)

10L/ H

Speed Range

0 - 120 RPM

Lift and Stroke

Water Bath Lifting with Manual Control, 180 mm

Glass Material

GG-17 Glass

Heating Temperature Range

Rm-99 Degree

Heat Control

PID

Heat control accuracy

±1 Degree

Ultimate Vacuum

0.098 Mpa

Weight

196kg

Dimensions (W x H x D)

1450×820×750 mm 850×750×950 mm
