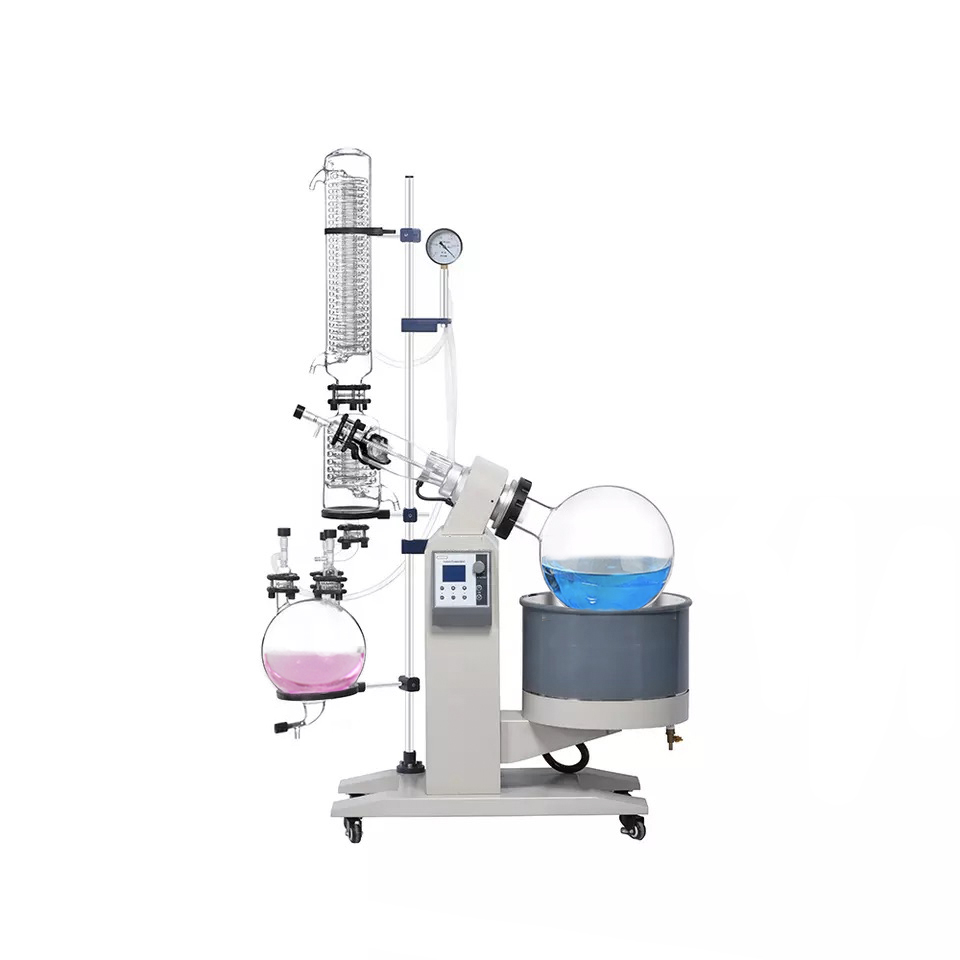

HEA-20 20L Rotary Evaporator with Electric Lift

Introduction:

20L Rotary Evaporator with Electric Lift

Print the current page

Tel: +86-134-2513-4344

Email:hcinstrument@163.com

Share:

Introduction



The rotary evaporator can be rotated under constant temperature and under negative pressure to form a film,and is condensed and recovered in the evaporation solvent. It is especially suitable for concentration,crystallization, separation and recovery of heat sensitive materials. It is an important equipment for scientific research, pilot test and production in bio-pharmaceutical,chemical, food and other industries.


Feature


Built-in vacuum controller, High vacuum performance.

Manual lifting with easy and quick operation.

High borosilicate glass 3.3(GG-17), good physical and chemical properties.

PTFE sealing parts and tight sealing to offer high vacuum and high evaporation rate

Specification


Model

HEA-20

Condenser

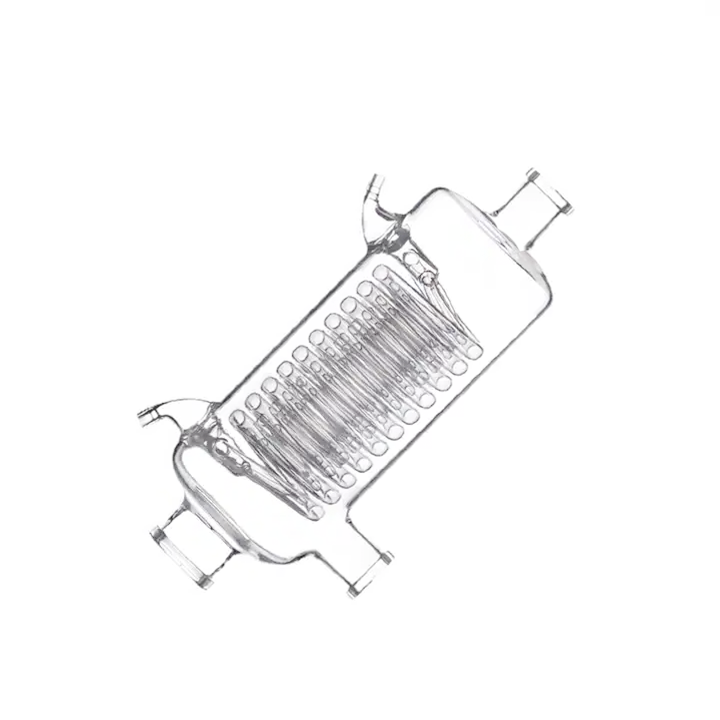

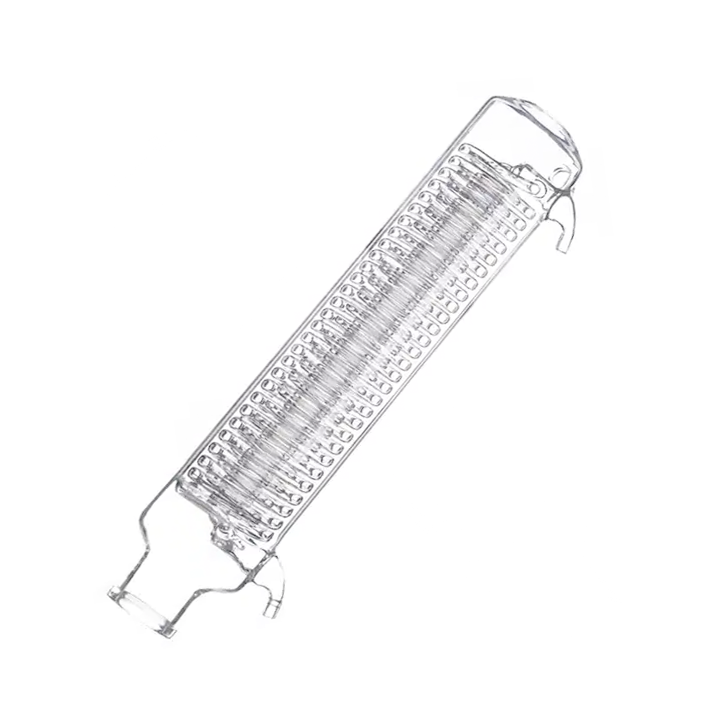

Vertical Double Condenser

Collect Flask

10L

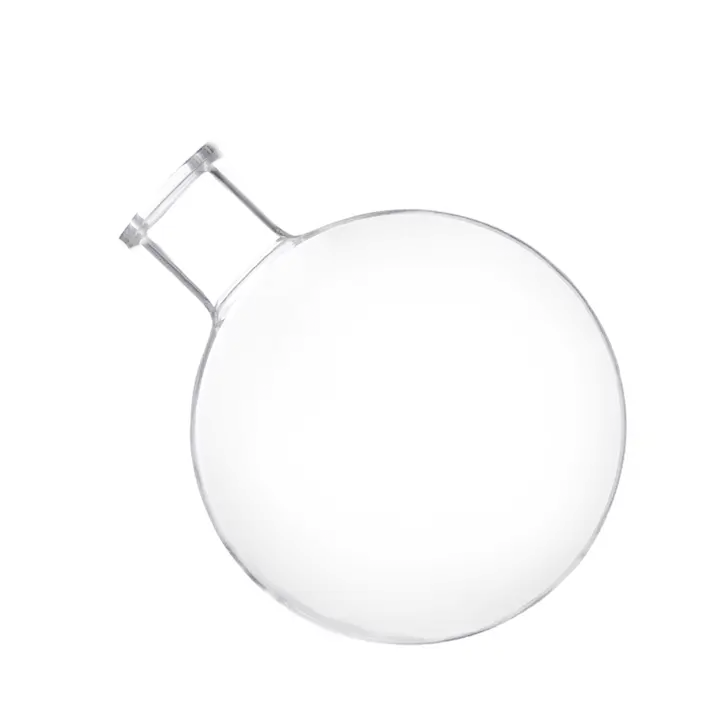

Rotary Flask

20L, Flange Size #125

Motor Power

250W

Power Voltage

220V/50HZ

Bath Power

4000 W

Bath Volume

Φ 450 *260H(mm), 41L

Bath Material

SS304

Evaporation Rate(Water)

5L/ H

Speed Range

0 - 120 RPM

Lift and Stroke

Electric Lifting, 190 mm

Glass Material

GG-17 Glass

Heating Temperature Range

Rm-99 Degree

Heat Control

PID

Heat control accuracy

±1 Degree

Ultimate Vacuum

0.098 Mpa

Weight

138kg

Dimensions (W x H x D)

1350×690×920 mm,890×850×790mm
