Your location:Home > Products > Rotary Evaporator > HEA-05 5L Rotary Evaporator with Electric Lift

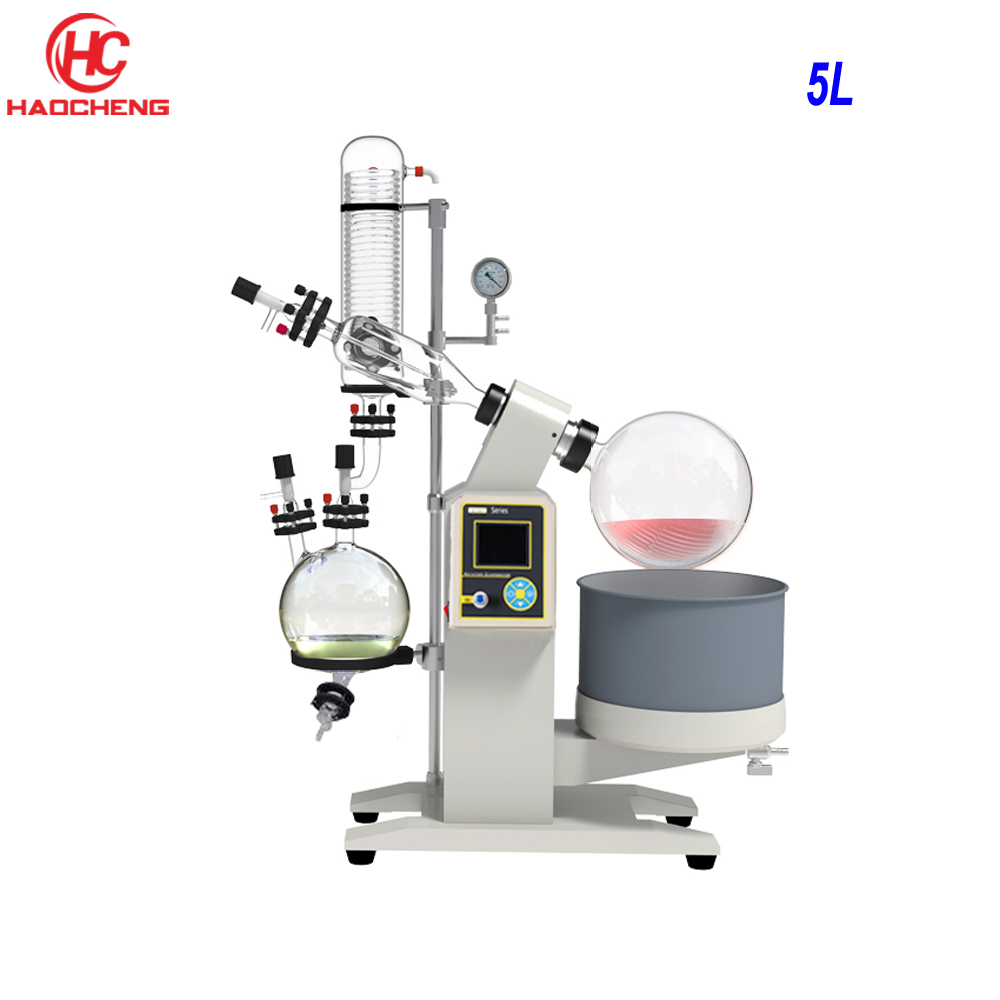

HEA-05 5L Rotary Evaporator with Electric Lift

Introduction:

1. Electric Lift 2. Rotating Flask : 5L 3. Speed range 0 - 120 rpm

Print the current page

Tel: +86-134-2513-4344

Email:hcinstrument@163.com

Share:

  Introduction

The equipment for purification distillation test rotates and shapes a thin film in negative pressure conditionby heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.



Feature


Built-in vacuum controller, High vacuum performance.

Electrical lifting with easy and quick operation.

High borosilicate glass 3.3(GG-17), good physical and chemical properties.

PTFE sealing parts and tight sealing to offer high vacuum and high evaporation rate



Specifications

Model

HEA-05

Condenser

Vertical Condenser

Collect Flask

3L

Rotary Flask

5L

Motor Power

70W

Power Voltage

220/110V for Optional

Bath Power

2000 W

Bath Volume

Φ 300 *170H(mm), 12L

Bath Material

SS304

Evaporation Rate(Water)

≥2L/ H,

Speed Range

0 - 140 RPM

Lift and Stroke

Electric Lifting, 100 mm

Glass Material

GG-17 Glass

Heating Temperature Range

Rm-99 Degree

Heat Control

PID

Heat control accuracy

±1 Degree

Ultimate Vacuum

0.098 Mpa

Dimensions (W x H x D)

1100×860×550 mm

Weight

85 kg































































Previous: HEA-03 3L Rotary Evaporator with Electric Lift

Next: HEA-10 10L Rotary Evaporator with Electric Lift
