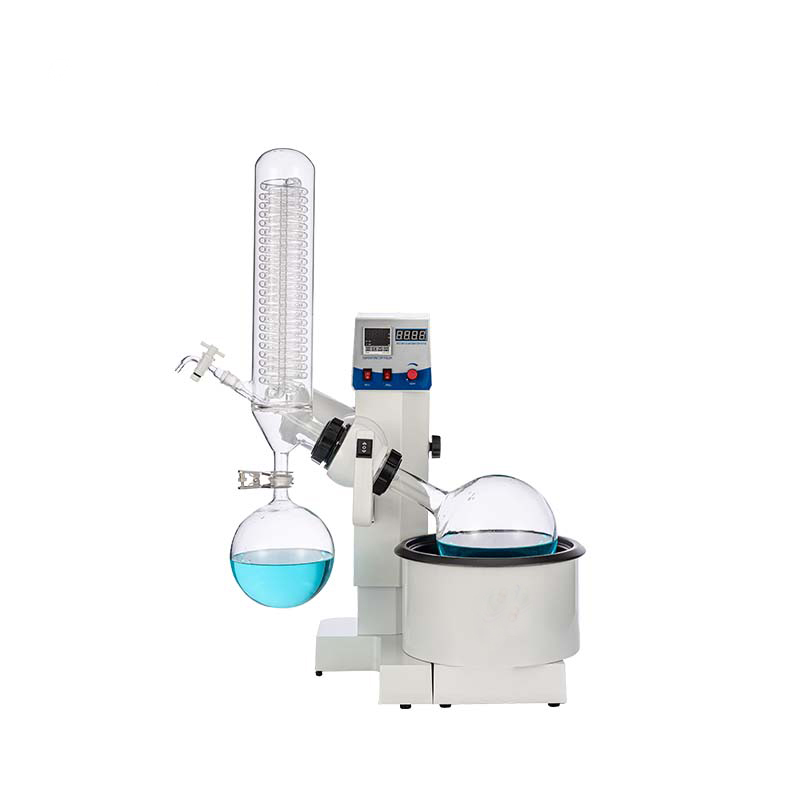

HEA-03 3L Rotary Evaporator with Electric Lift

Introduction:

1. Electric Lift 2. Rotating Flask : 3L 3. Speed range 0 - 200 rpm

Print the current page

Tel: +86-134-2513-4344

Email:hcinstrument@163.com

Share:

  Introduction

The equipment for purification distillation test rotates and shapes a thin film in negative pressure conditionby heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.



Feature


Built-in vacuum controller, High vacuum performance.

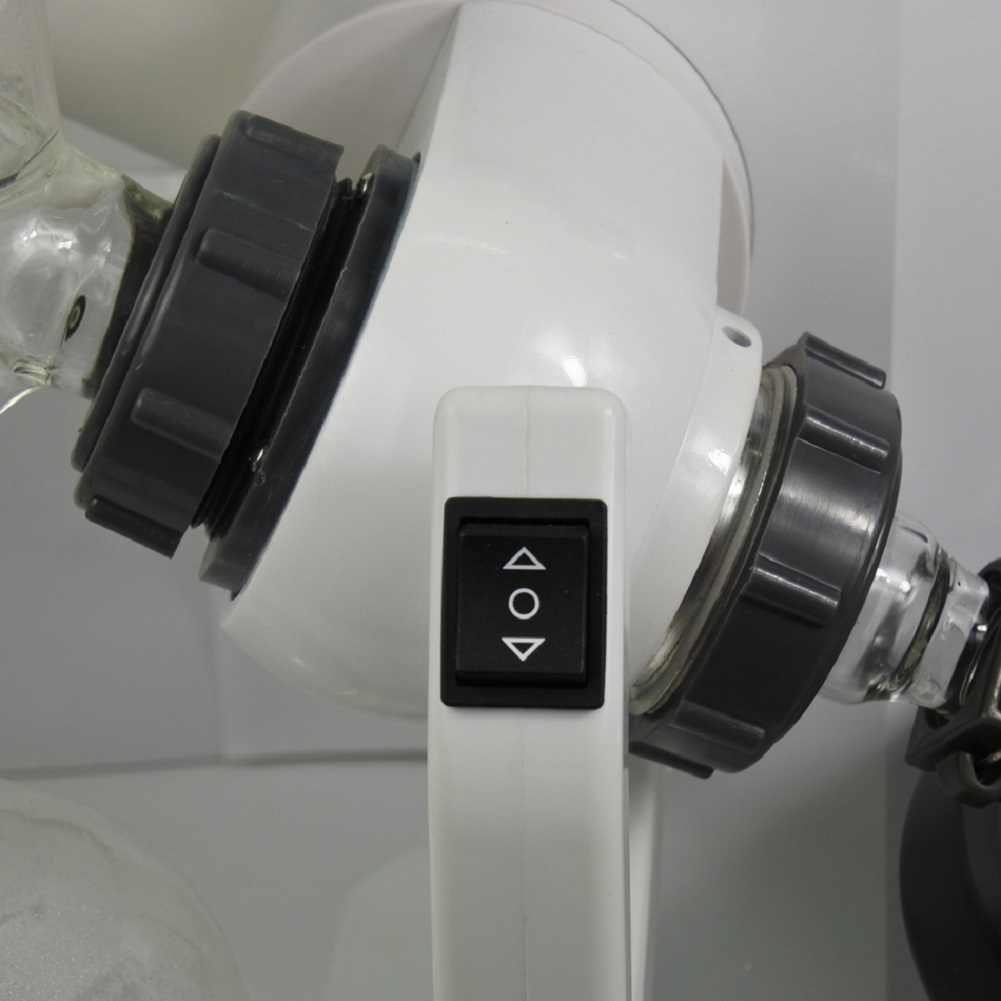

Automatic lifting with easy and quick operation.

High borosilicate glass 3.3(GG-17), good physical and chemical properties.

PTFE sealing parts and tight sealing to offer high vacuum and high evaporation rate



Specifications

Model

HEA-03

Condenser

Vertical Condenser,Φ100X530H (mm)

Collect Flask

2L

Rotary Flask

3L,Flange size, Φ50

Motor Power

60W

Power Voltage

220/110V for Optional

Bath Power

1500 W

Bath Volume

Φ255X155H (mm),7.9L

Bath Material

SS304 Combined Bath &Teflon Material Completely Closed Heated

Evaporation Rate(Water)

≥1.5L/ H

Speed Range

0 - 200 RPM

Lift and Stroke

Automatic Control, 150 mm

Glass Material

GG-17 Glass

Heating Temperature Range

Rm-99 Degree

Heat Control

PID

Heat control accuracy

±1 Degree

Ultimate Vacuum

0.098 Mpa

Dimensions (W x H x D)

650×520×650 mm

Weight

30kg
