Your location:Home > Products > Rotary Evaporator > HEA-10 10L Rotary Evaporator with Electric Lift

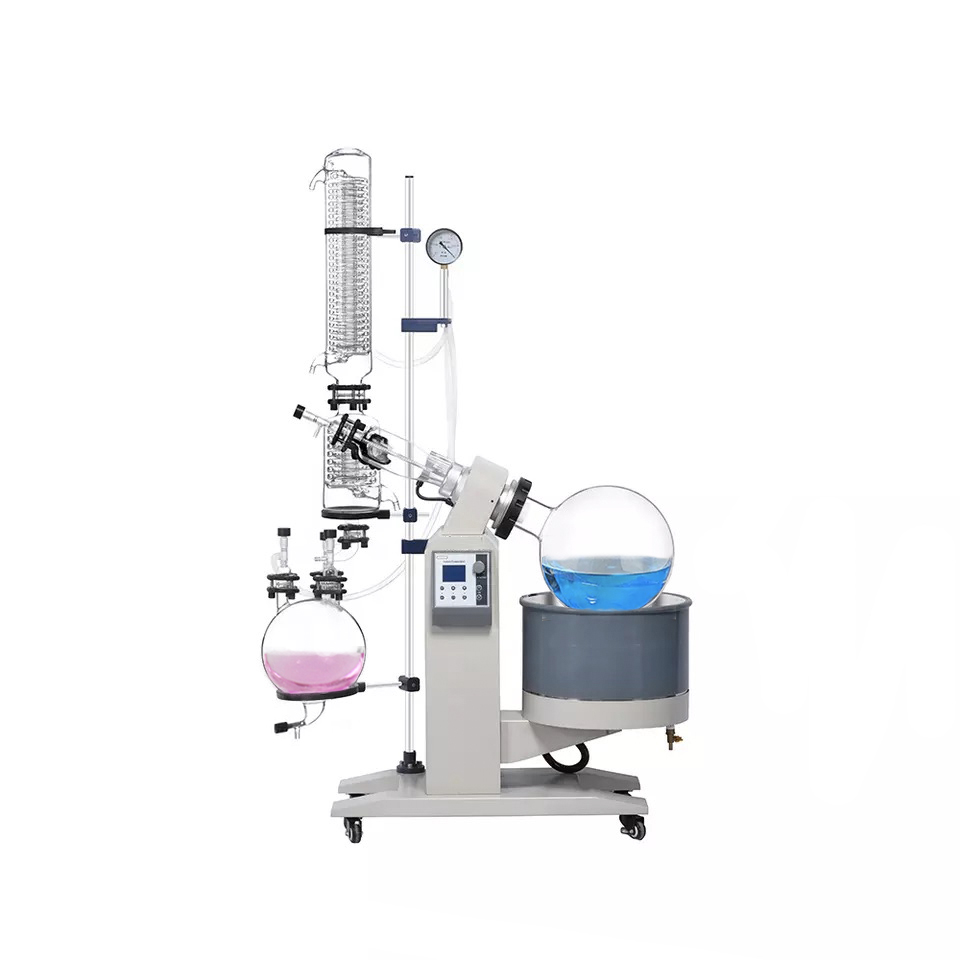

HEA-10 10L Rotary Evaporator with Electric Lift

Introduction:

1. Electric Lift 2. Rotating Flask : 10L 3. Speed range 0 - 120 rpm

Print the current page

Tel: +86-134-2513-4344

Email:hcinstrument@163.com

Share:

  Introduction


A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents

from samples by evaporation.Rotary evaporation is most often and conveniently use d to separate "low -

boiling" solvents such a n-hexane or ethyl acetate from compounds which are solid at room temperature and

pressure. R otary evaporator also allows removal of a solvent from a sample containing a liquid compound if

there is minimal co-evaporation (azeotropic behavior),and a sufficient difference in boiling points at the chosen

temperature and reduced pressure.





















Feature




































Built-in vacuum controller, High vacuum performance.

Auto lifting with easy and quick operation.

High borosilicate glass 3.3(GG-17), good physical and chemical properties.

PTFE sealing parts and tight sealing to offer high vacuum and high evaporation rate



Specifications


Model

HEA-10

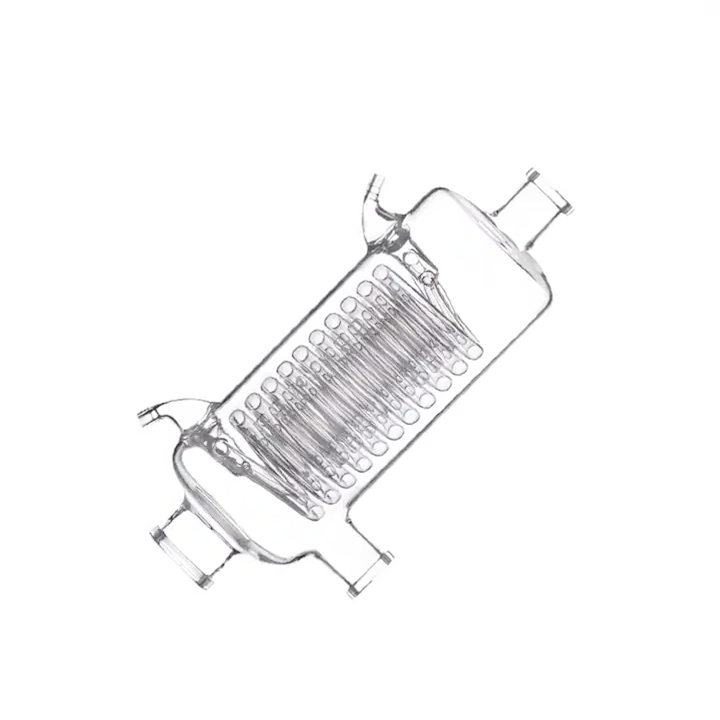

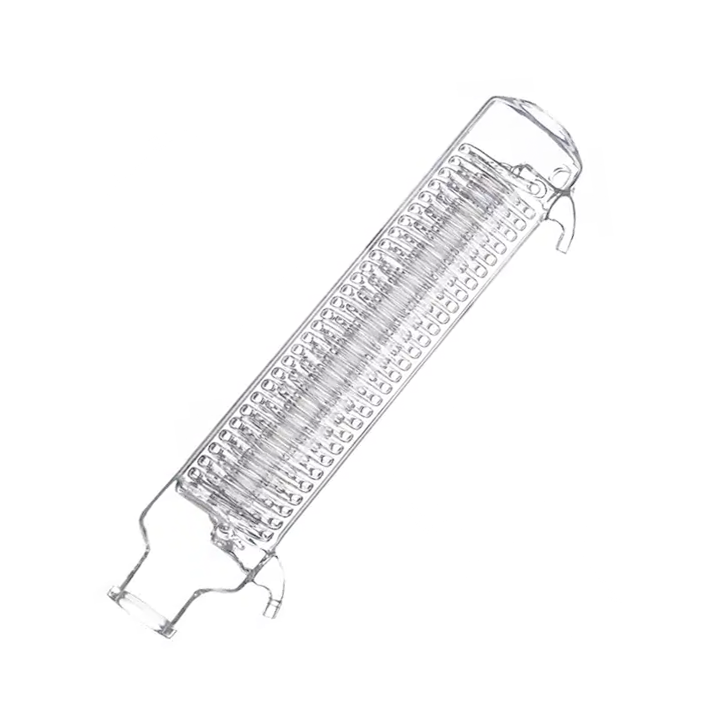

Condenser

Vertical Double Backflow Integration Standard Condenser

Collect Flask

5L

Rotary Flask

10L, Flange size #125

Motor Power

70W

Power Voltage

220/110V for Optional

Bath Power

3000 W

Bath Volume

Φ 350 *220H(mm), 21L

Bath Material

SS304

Evaporation Rate(Water)

3L/ H

Speed Range

0 - 140 RPM

Lift and Stroke

Electric Lifting, 160 mm

Glass Material

GG-17 Glass

Heating Temperature Range

Rm-99 Degree

Heat Control

PID

Heat control accuracy

±1 Degree

Ultimate Vacuum

0.098 Mpa

Weight

118kg
