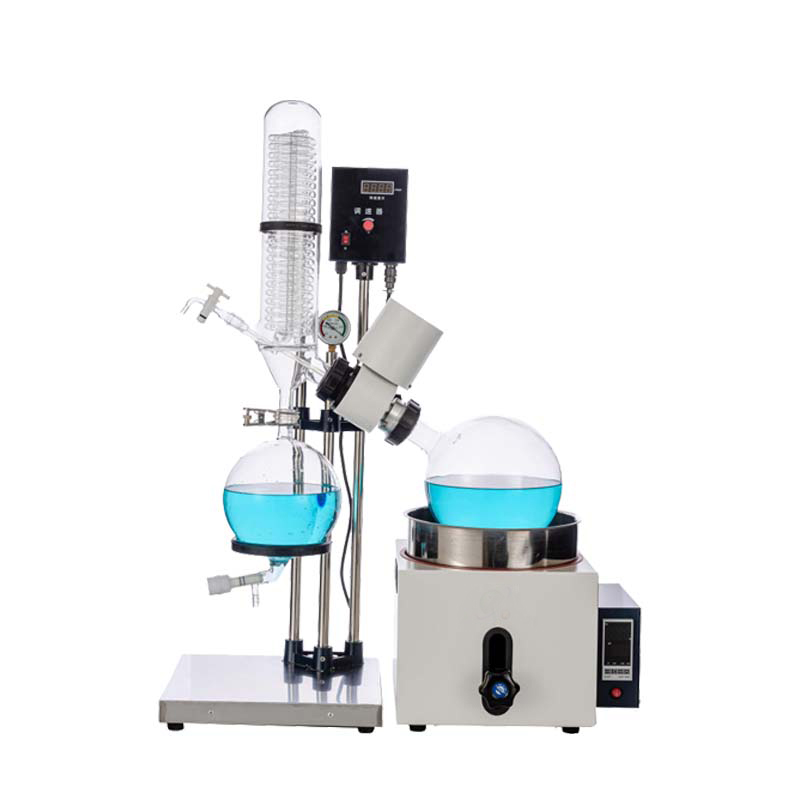

HEM-05 5L Rotary Evaporator with Manual Lift

Introduction：

1. Manual Lift 2. Rotating Flask : 5L 3. Speed range: 0-120rpm 4. Collecting Flask :3L

Print the current page

Tel： +86-134-2513-4344

Email：hcinstrument@163.com

Share：
Order

Application:

Rotary evaporator used rotary evaporation bottle (flask), increasing the evaporation area in the water under the pressure.It's retating while heating, so that the bottle solution can be diffusion and evaporation. It is the ideal essential basic equipment in chemical industry, pharmaceutical industry, institutions of higher learning and scientific research laboratories and other units for the manufacture and analysis of experiments on the concentration, drying, recycling.

Feature


◎ Built-in vacuum controller, High vacuum performance.

◎ Manual lifting with easy and quick operation.

◎ High borosilicate glass 3.3(GG-17), good physical and chemical properties.

◎ PTFE sealing parts and tight sealing to offer high vacuum and high evaporation rate






Specifications



Model

HEM-05

Condenser

Vertical Condenser, Φ100X530H (mm)

Collect Flask

3L Φ 195MM,Top #35, Bottom DN20

Rotary Flask

5L #50 Flange size and Φ 230mm

Motor Power

40W

Power Voltage

220/110V for Optional

Bath Power

2000 W

Bath Volume

Φ 280 *170H(mm), 10.5L

Bath Material

SS304

Evaporation Rate(Water)

≥2L/ H

Speed Range

0 - 120 RPM

Lift and Stroke

Water Bath Lifting with Manual Control, 200 mm

Glass Material

GG-17 Glass

Heating Temperature Range

Rm-99 Degree

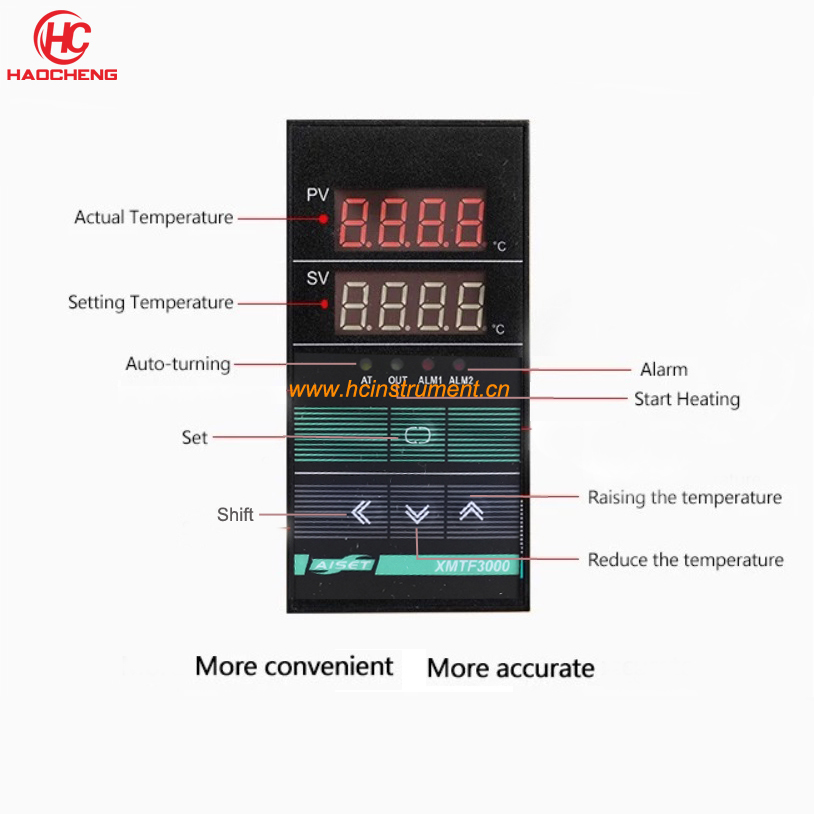

Heat Control

PID

Heat control accuracy

±1 Degree

Ultimate Vacuum

0.098 Mpa

Dimensions (W x H x D)

1030×480×650 mm

Weight

48 kg
