Your location:Home > Products > Rotary Evaporator > HEM-03 3L Rotary Evaporator with Manual Lift

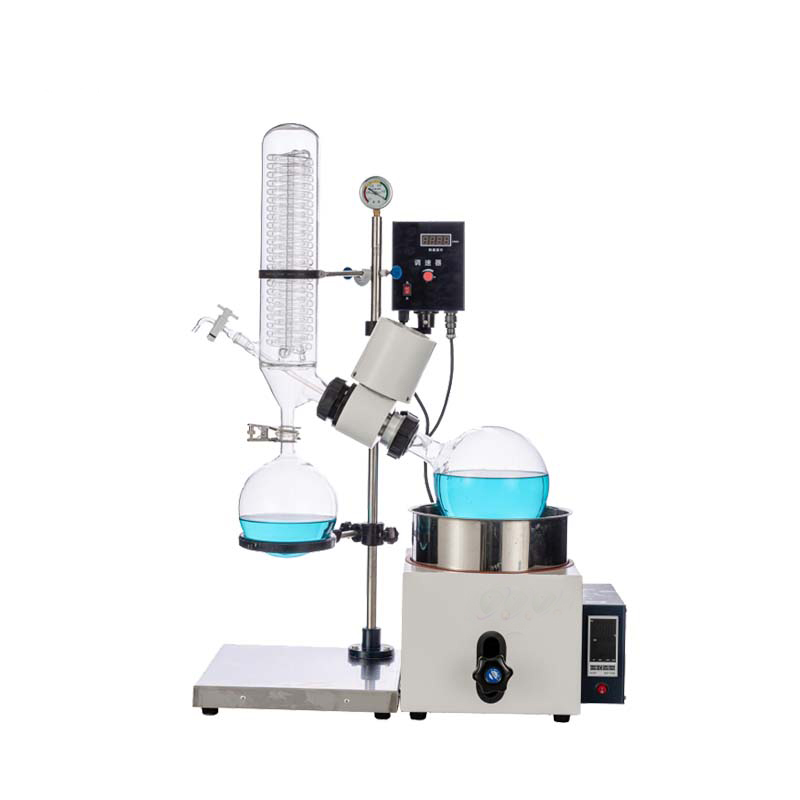

HEM-03 3L Rotary Evaporator with Manual Lift

Introduction:

1. Manual Lift Heating Bath 2. 3L Rotary Flask 3. Heating Power:2000W

Print the current page

Tel: +86-134-2513-4344

Email:hcinstrument@163.com

Share:



Application:



           Rotary evaporator used rotary evaporation bottle (flask), increasing the evaporation area in the water under the pressure.It's retating while heating, so that the bottle solution can be diffusion and evaporation. It is the ideal essential basic equipment in chemical industry, pharmaceutical industry, institutions of higher learning and scientific research laboratories and other units for the manufacture and analysis of experiments on the concentration, drying, recycling.

Specifications

Model

HEM-03

Condenser

Vertical Condenser,Φ100X530H (mm)

Collect Flask

2L

Rotary Flask

3L,Flange size #50

Motor Power

40W

Power Voltage

220/110V for Optional

Bath Power

2000 W

Bath Volume

3L

Bath Material

SS304

Evaporation Rate(Water)

≥1.5L/ H

Speed Range

0 - 120 RPM

Lift and Stroke

Water Bath Lifting with Manual Control, 200 mm

Glass Material

GG-17 Glass

Heating Temperature Range

Rm-99 Degree

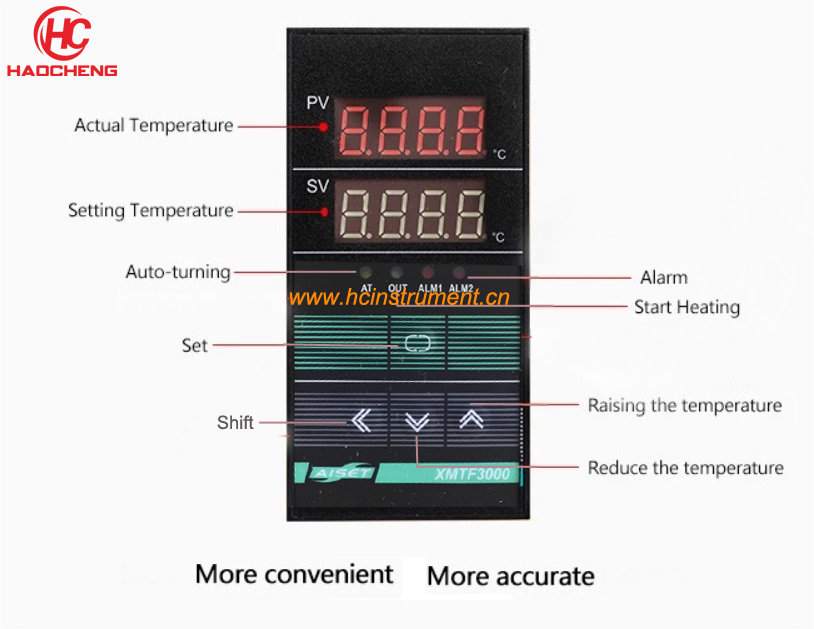

Heat Control

PID

Heat control accuracy

±1 Degree

Ultimate Vacuum

0.098 Mpa

Dimensions (W x H x D)

1030×520×650 mm

Weight

45 kg










































Previous: HEM-01 2L Rotary Evaporator with Manual Lift

Next: HEM-05 5L Rotary Evaporator with Manual Lift
