Your location：Home > Products > Rotary Evaporator > HEM-01 2L Rotary Evaporator with Manual Lift

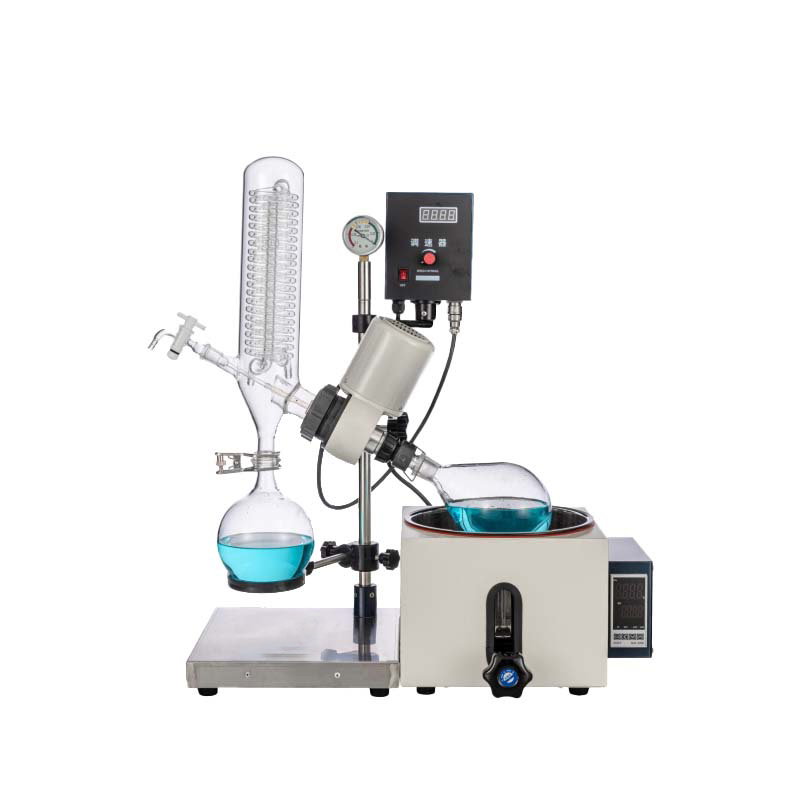

HEM-01 2L Rotary Evaporator with Manual Lift

Introduction：

1. Manual Lift 2. Rotating Flask : 2L 3. Rotation Speed： 0-120RPM 4. Vacuum： 0.098Mpa

Print the current page

Tel： +86-134-2513-4344

Email：hcinstrument@163.com

Share：
Order

        The  new distilling system completes the existing series by adding a functional basic model. The manual lift, with ambidextrous design, allows for precise positioning of the glassware. Digital displays for rotation speed and heating bath temperature allow for optimal control of all distilling processes. New clamp mechanism to simplify the changing of evaporation flasks. This package comes with heating bath and Set of glassware, (vertical)



Features;

1. Manual lift with integrated safety “lift-out-function“

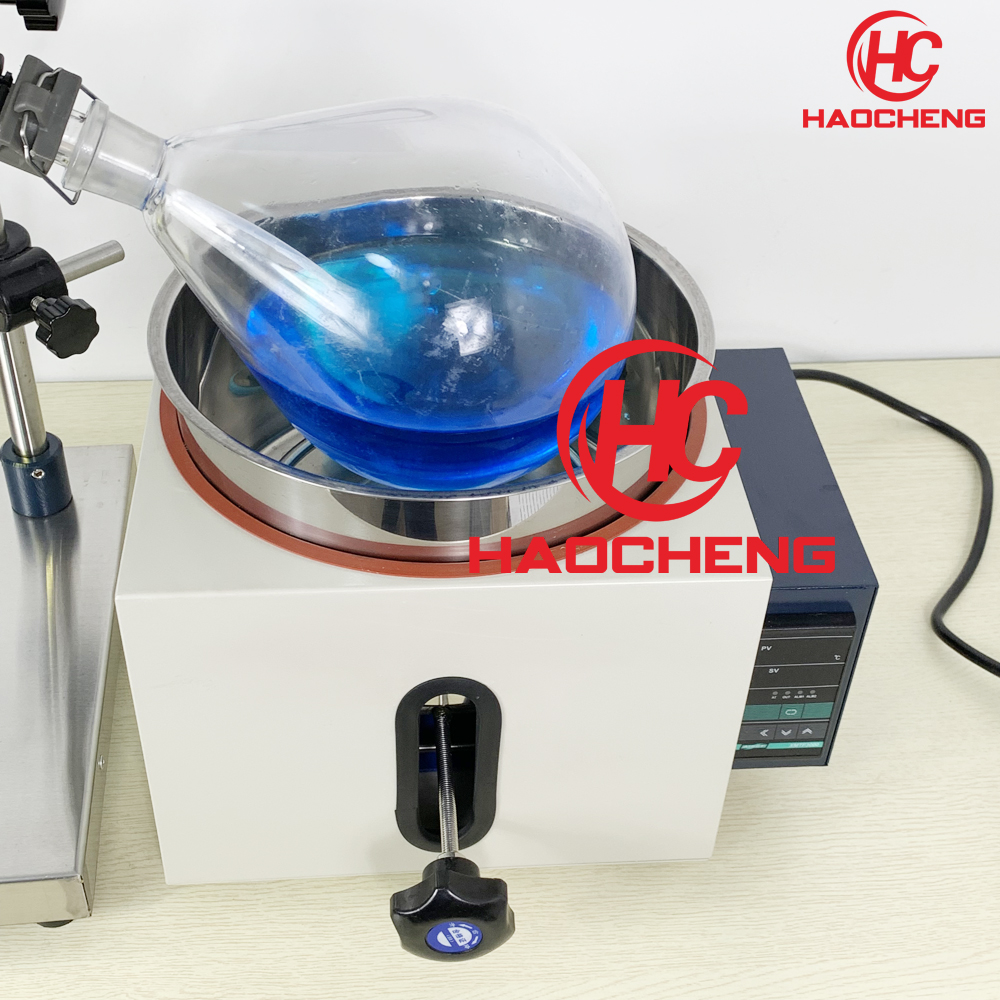

2. Water/oil heating bath with integrated ergonomic carrying handles

3. Key-button with locking function for the heating bath temperature

4. Adjustable immersion angle

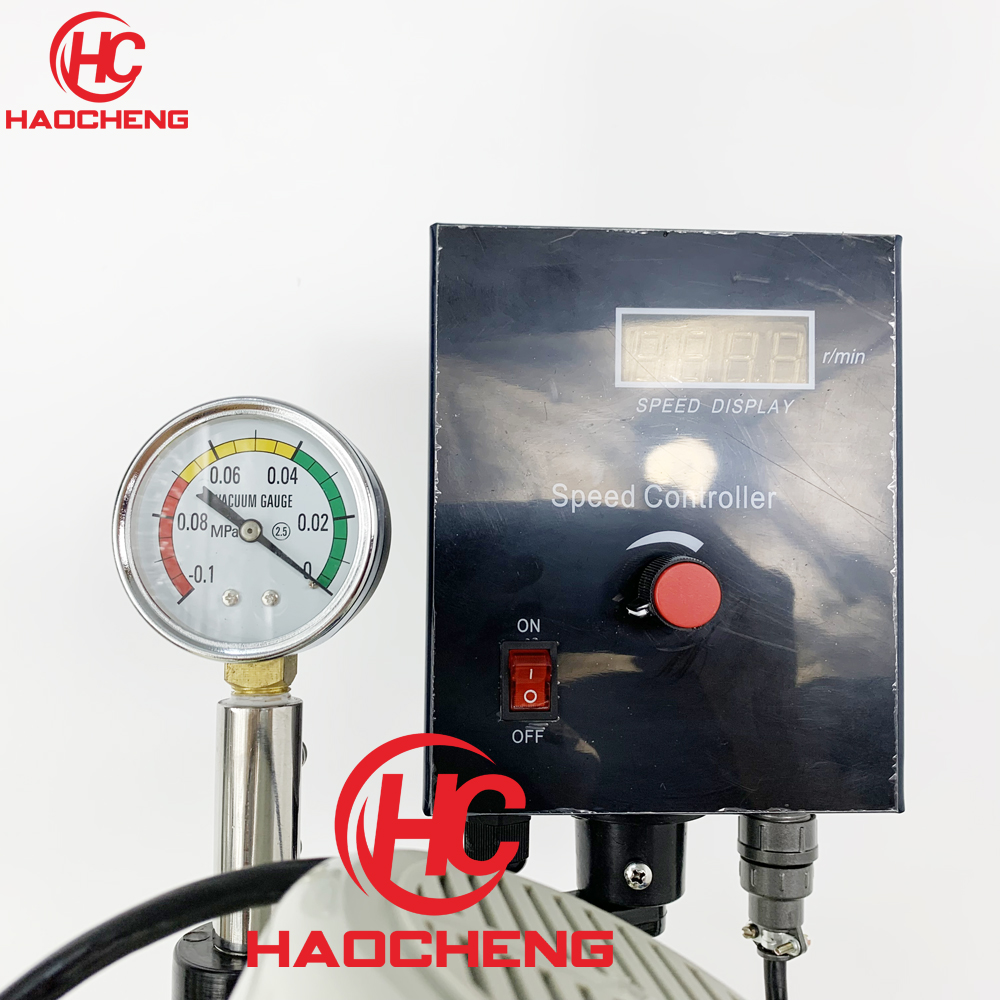

5. Digital displays for rotation speed and heating bath temperature

6. Single-hand operation; ambidextrous design

7. Speed range 0 - 120 rpm

8. Compatible with the complete range of HEM-01 series glassware

  ◎ The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition  by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.

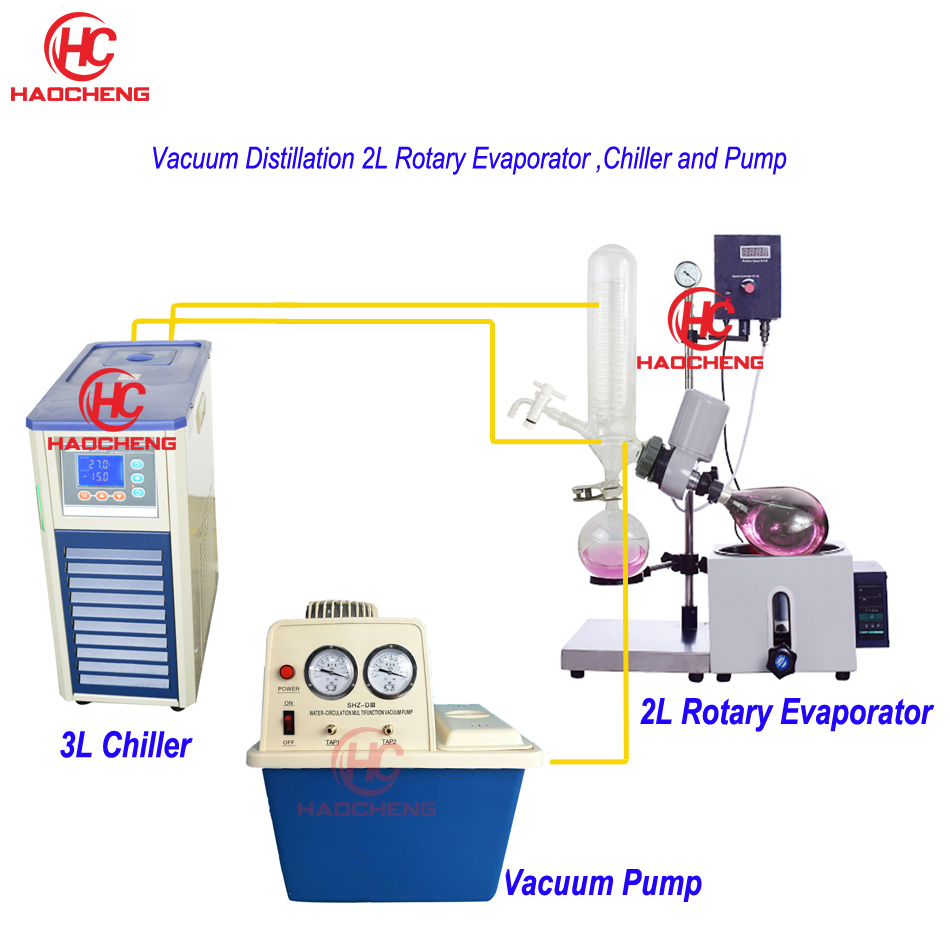

◎ The rotary evaporator can be made into system devices with Circulating Water Vacuum Pump , Vacuum  Pump , Low Temperature Circulating Pump, Circulating Cooler, Constant Temperature Reaction Bath , Low Temperature Cooling Liquid Circulating Pump.



Specifications ：

Model

HEM-01

Condenser

Vertical Condenser, Φ85X430H (mm)

Collect Flask

1L

Rotary Flask

2L, #24

Motor Power

40W

Power Voltage

220/110V for Optional

Bath Power

1500 W

Bath Volume

Φ245X140H (mm),6.6L

Bath Material

SS304 Combined Bath &Teflon Material Completely Closed Heated

Evaporation Rate(Water)

≥1L/ H

Speed Range

0 - 120 RPM

Lift and Stroke

Water Bath Lifting with Manual Control, 200 mm

Glass Material

GG-17 Glass

Heating Temperature Range

Rm-99 Degree

Heat Control

PID

Heat control accuracy

±1 Degree

Ultimate Vacuum

0.098 Mpa

Dimensions (W x H x D)

450×520×650 mm

Weight

21 kg







Previous： HEA-01 2L Rotary Evaporator with Electric Lift

Next： HEM-03 3L Rotary Evaporator with Manual Lift
