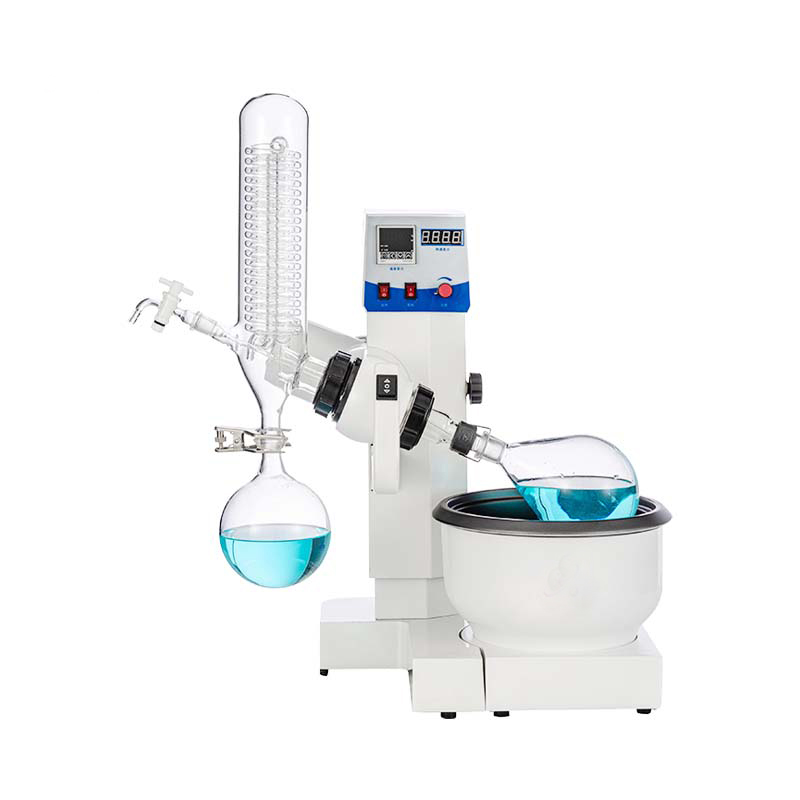

HEA-01 2L Rotary Evaporator with Electric Lift

Introduction:

1. Electric Lift 2. Rotating Flask : 2L 3. Speed Range 20 - 200 rpm

Print the current page

Tel: +86-134-2513-4344

Email:hcinstrument@163.com

Share:

The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition  by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.

Features:

◎  Built-in vacuum controller, High vacuum performance.


◎  Automatic lifting with easy and quick operation.


◎  High borosilicate glass 3.3(GG-17), good physical and chemical properties.


◎  PTFE sealing parts and tight sealing to offer high vacuum and high evaporation rate



Specifications:

Model

HEA-01A

HEA-01B

Condenser

Vertical Condenser,Φ85X430H (mm)

Collect Flask

1L

Rotary Flask

1L

2L

Motor Power

40W

Power Voltage

220/110V for Optional

Bath Power

1500 W

Bath Volume

Φ235X145H (mm),6.2L

Bath Material

SS304

Evaporation Rate (Water)

1L/ H

Speed Range

0 - 200 RPM

Lift and Stroke

Automatic Control, 150 mm

Glass Material

GG-17 Glass

Heating Temperature Range

Rm-99 Degree

Heat Control

PID

Heat control accuracy

±1 Degree

Ultimate Vacuum

0.098 Mpa

Dimensions (W x H x D)

650×520×650 mm

Weight

29 kg
