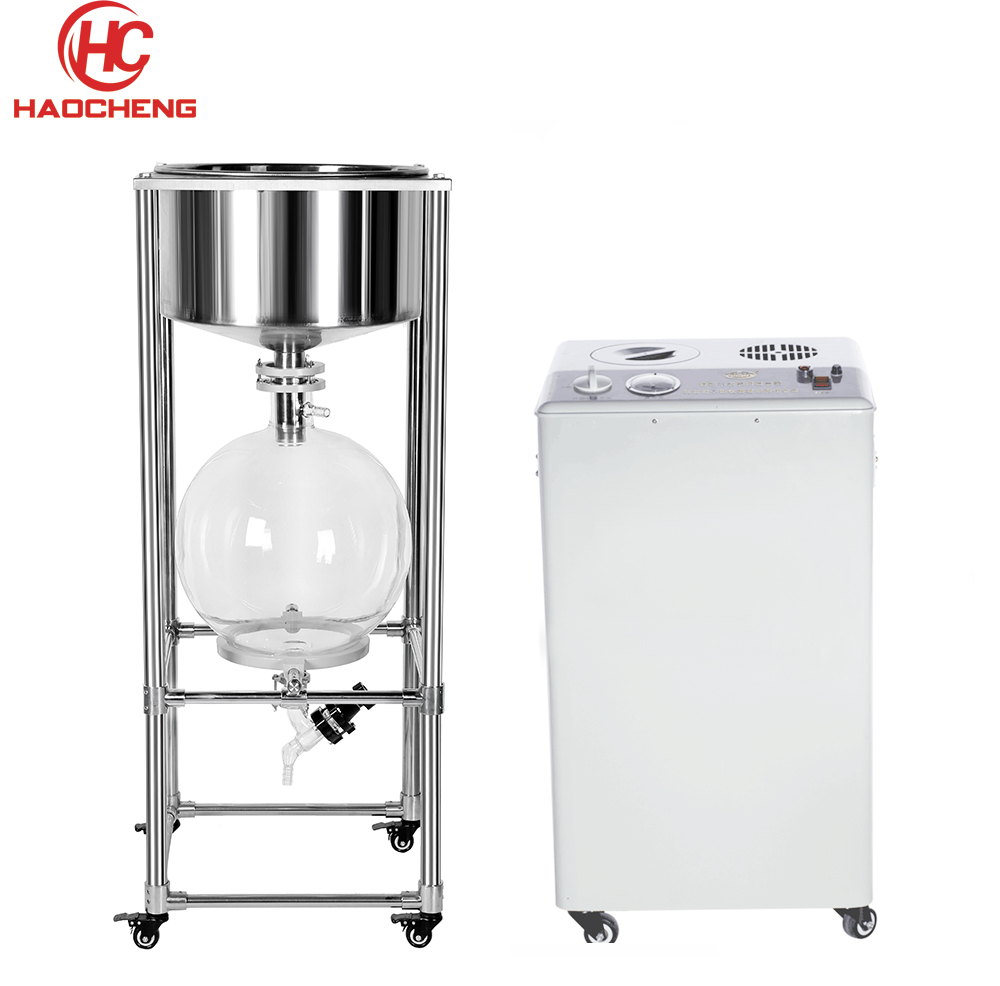

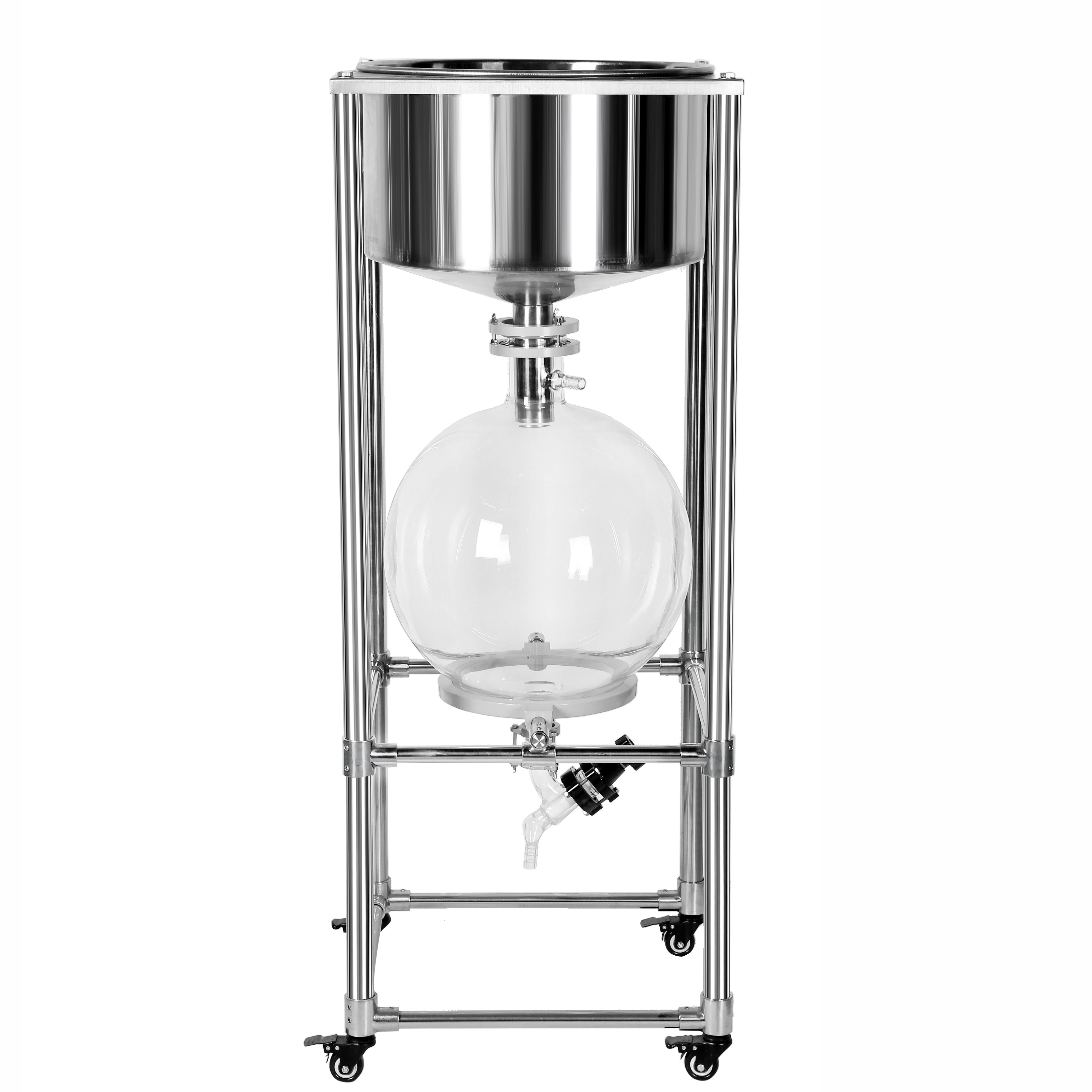

Lab Vacuum Filter With Stainless Steel 304 Buchner Funnel

Introduction：

Capacity: 10L,20L,30L,50L,100L

Print the current page

Tel： +86-134-2513-4344

Email：hcinstrument@163.com

Share：
Order

Introduction


HVF Vacuum filter is a special filter for laboratory. It is equipped with microporous membranes of different pore sizes,

and then adopts vacuum filtration. It can be used for scientific research chemical analysis, instrument analysis, health

inspection, pharmaceutical industry and agricultural machinery, automobiles, and construction machinery. Liquid

filtration to detect and remove particles and bacteria in liquids, such as: sterility test, sterilization filtration of culture

medium, cleaning of medium and small power internal combustion engines, jet fuel and hydraulic system solid particle

pollutants, etc. gravimetric determination, such as distribution The grid film is also suitable for the counting method

determination of hydraulic oil, aviation kerosene, high-purity reagents and water quality.

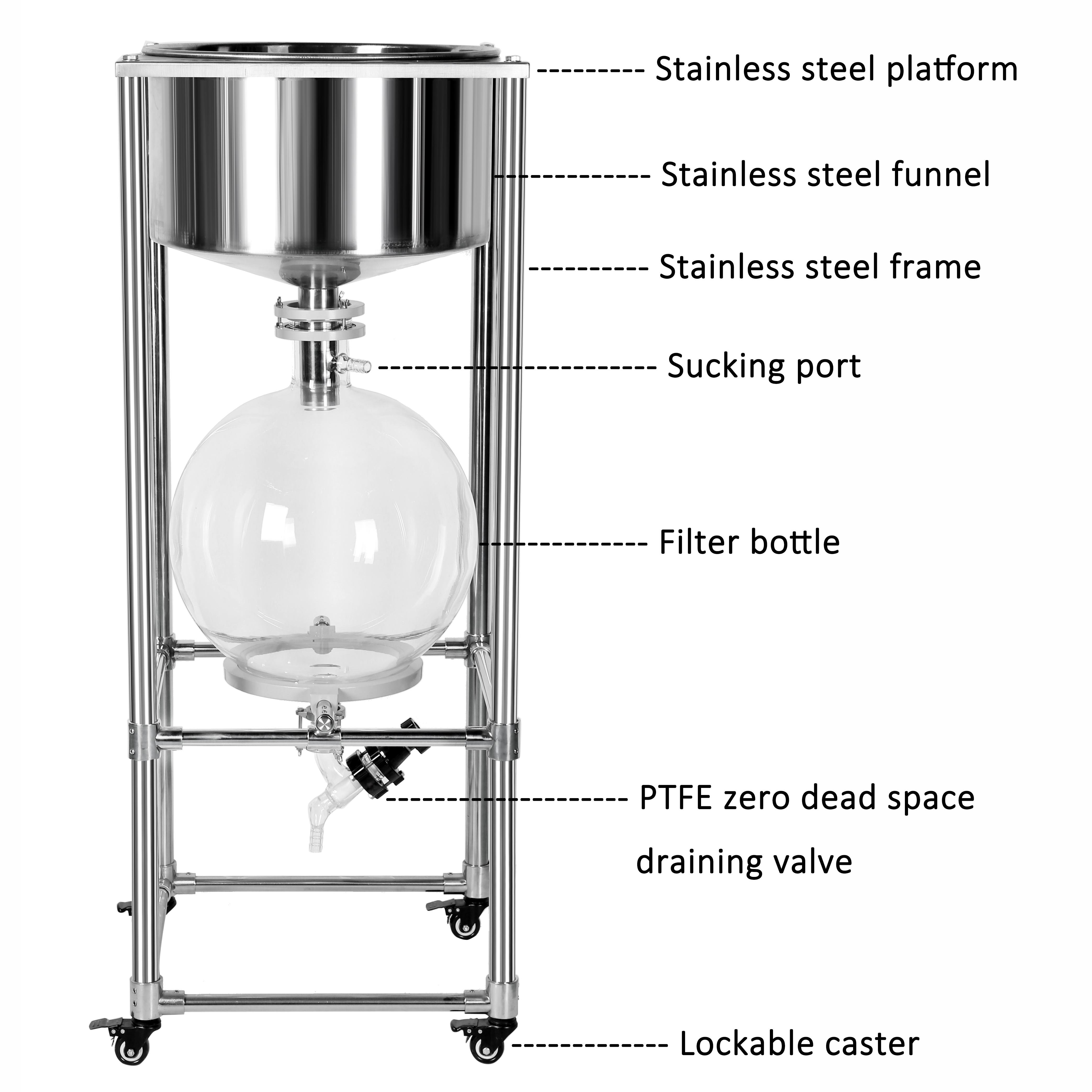

Features


◎ High quality Borosilicate glass 3.3 with excellent physical and chemical properties for glass parts.

◎ Perfect sealing property and no dead corner design for charging solution or power more easily.

◎ One vacuum valve for connecting vacuum pump for processing vacuum filtration.

◎ Cost-saving modular design and can be customized by clients’ requirements.

◎ Safe in operation, easy to move around with lockable casters.

  Specification


Model

HVF-10 L

HVF -20L

HVF - 30L

HVF -5 0L

HVF - 100L

Funnel Size

Φ 350*220H(mm)

21L

Φ 350*220H(mm)

21L

Φ 4 50*250H(mm)

39L

Φ 4 50*250H(mm)

39L

Φ 5 50*320H(mm)

76L

Funnel Material

Stainless steel 304

Frame Material

Stainless steel 304

Glass Material

GG-17

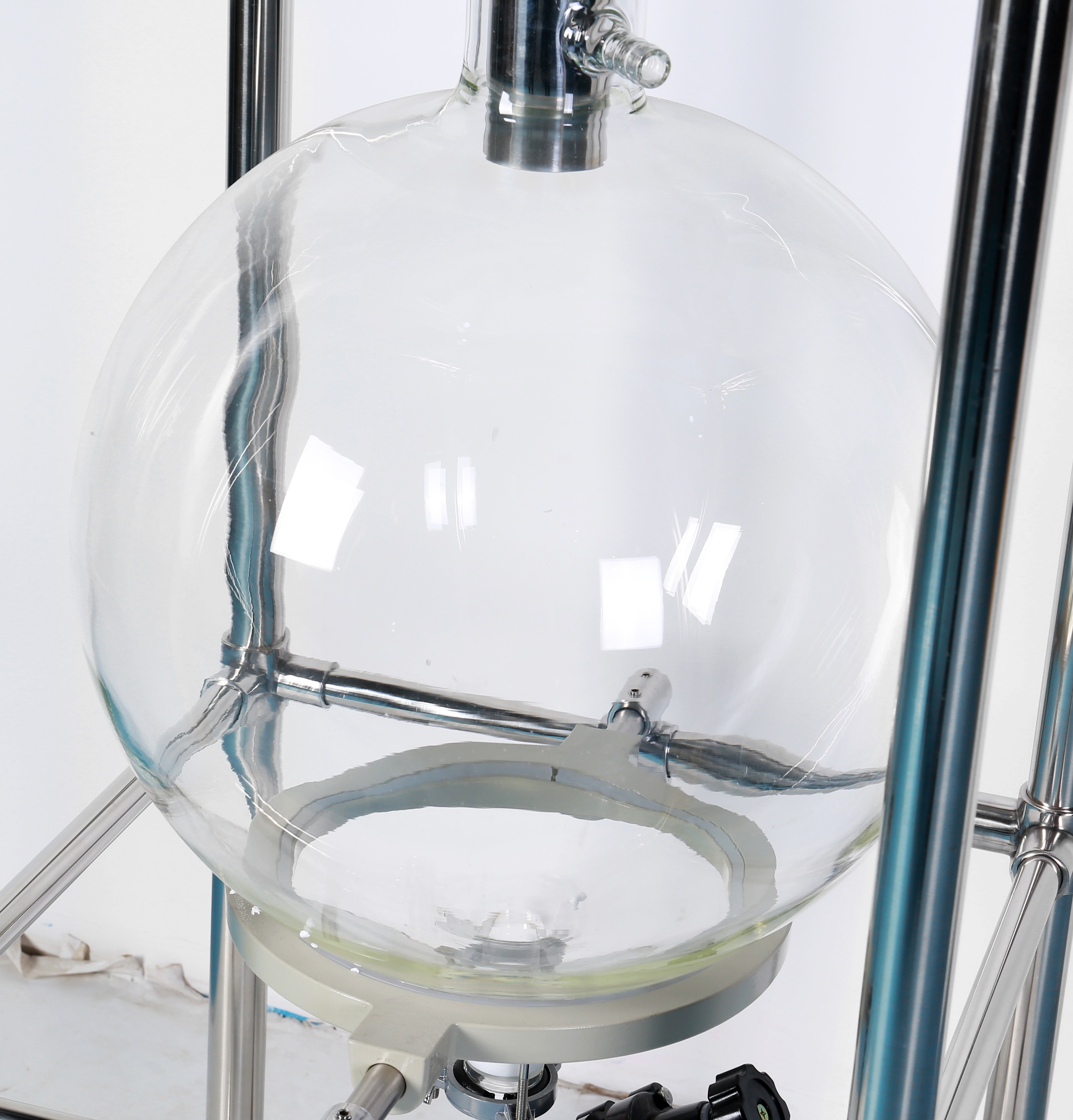

Suction Filter Bottle

10L Ball

20L Ball

30L Ball

50L Ball

100L Ball

Max Vacuum

0.098 Mpa

Unloading Method

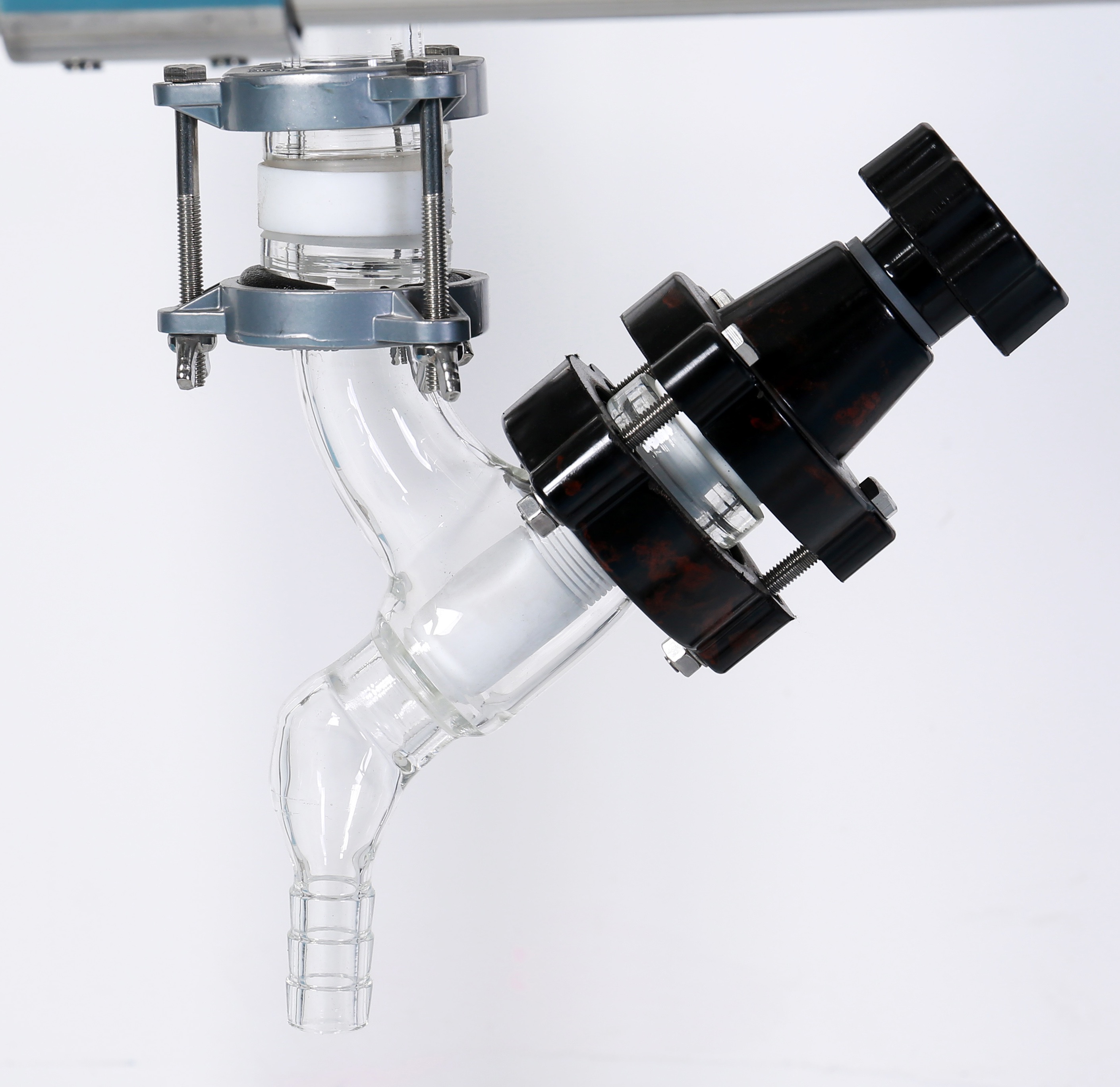

Glass discharge valve, flange port

Mobile Way

Swivel casters with brake

Dimensions (WxHxD)

1330*580*660mm

1400*580*660mm

1490*640*720mm

1490*660*750mm

1850*640*880mm

Weight

54KG

58KG

66KG

66KG

96KG
