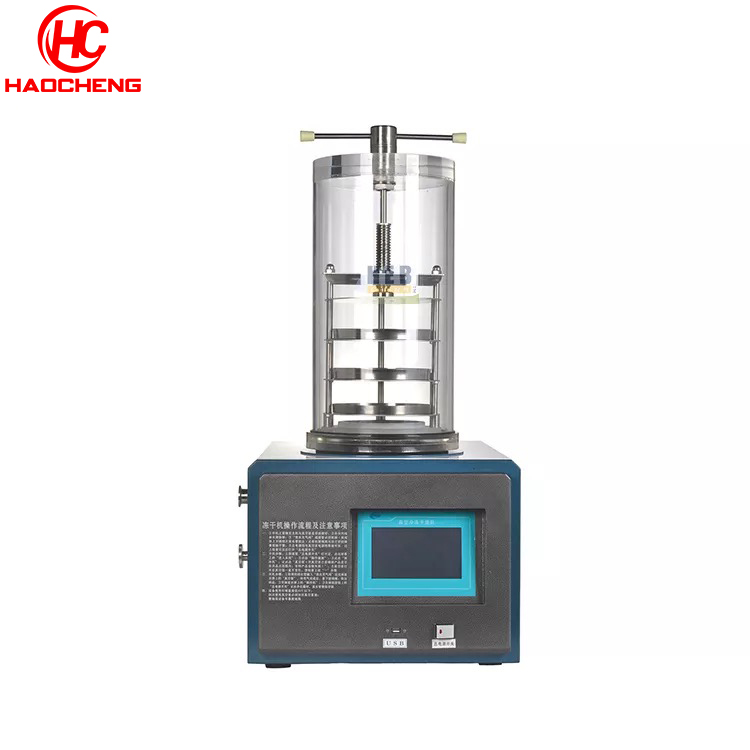

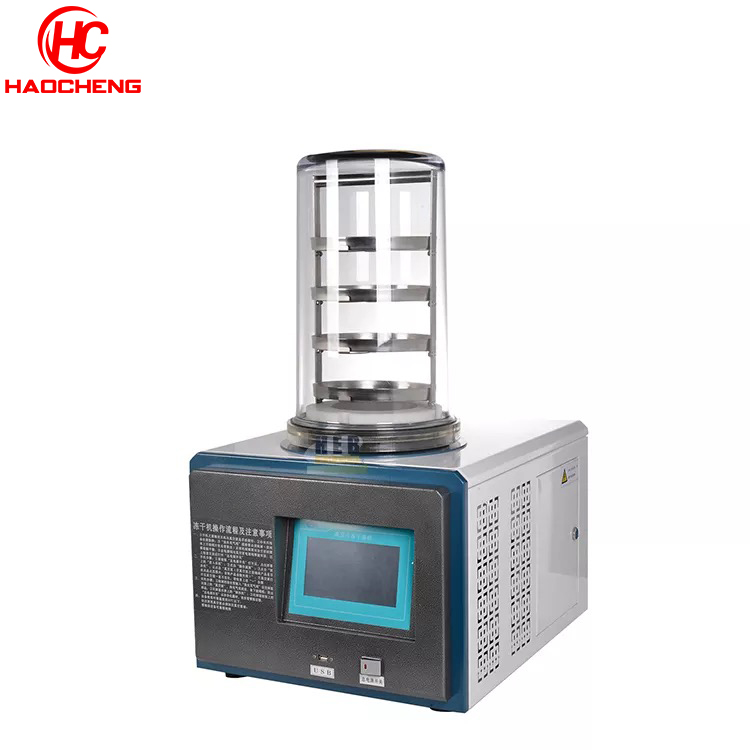

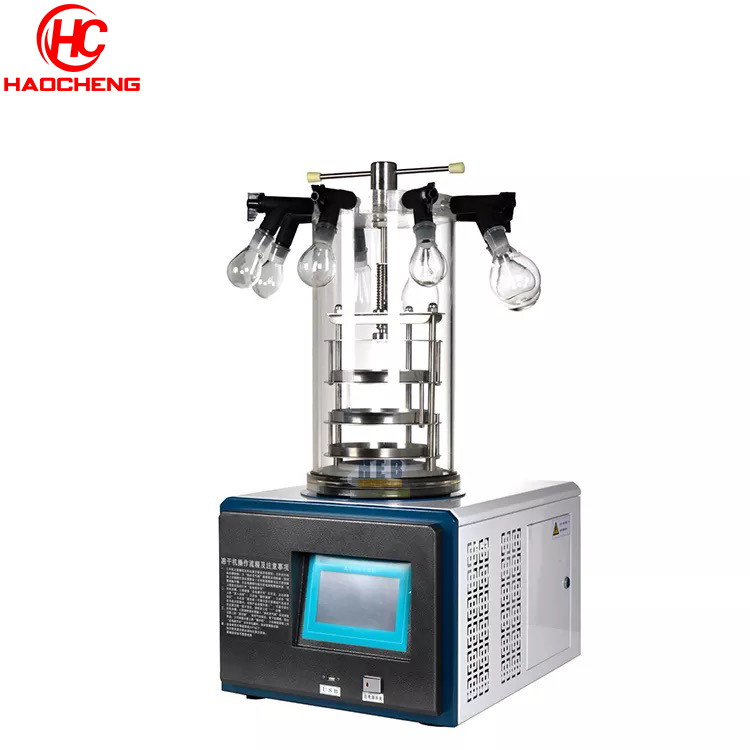

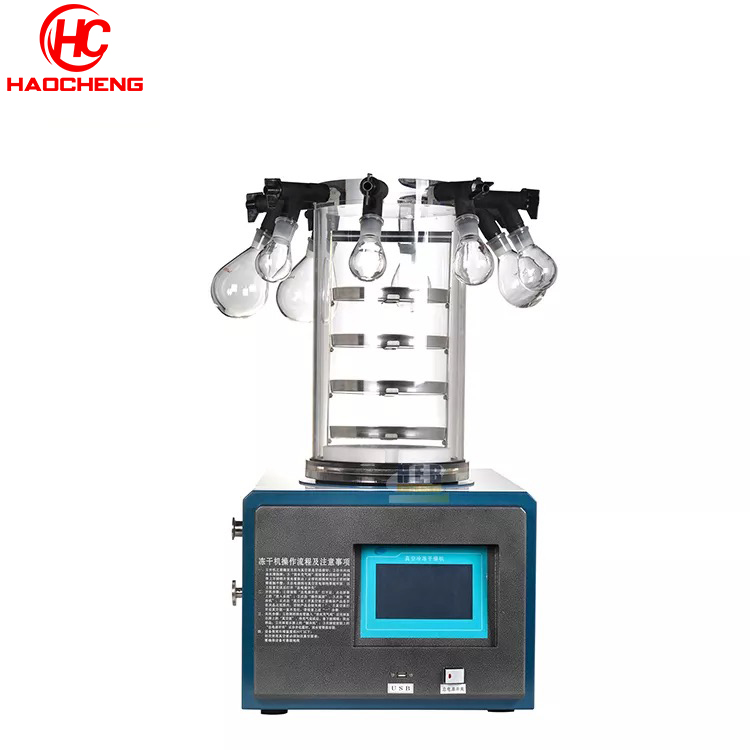

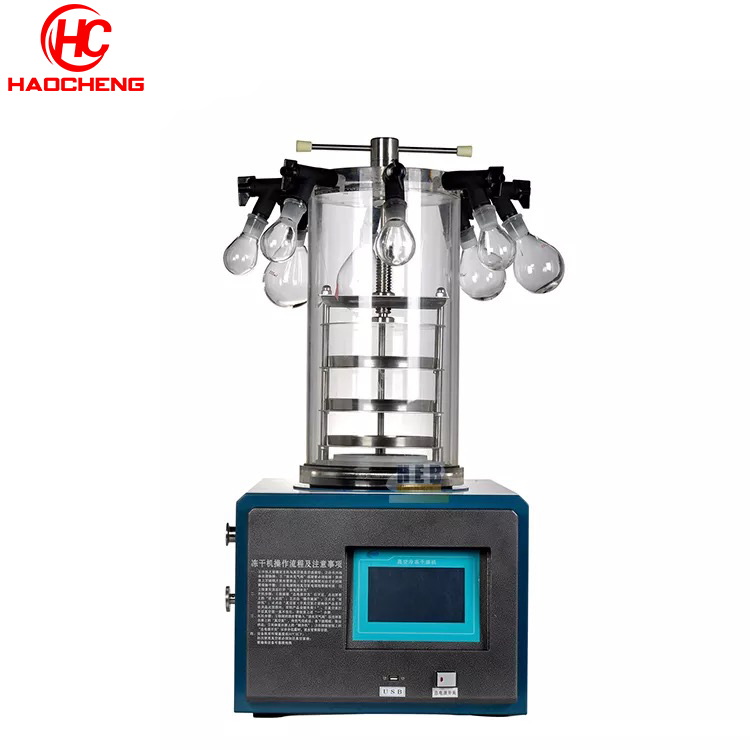

Lab Freeze Dryer

Introduction：

1）-55℃ or -80℃(Optional) 2）3-4KG/24H

Print the current page

Tel： +86-134-2513-4344

Email：hcinstrument@163.com

Share：
Order

Introduction


Freeze dryer is a type of drying equipment. It has double refrigeration system and the temperature of its cold trap can

be reduced to -55 ℃ , suitable for the manufacture of certain heat-sensitive substances that are not heat-resistant or

unstable in aqueous solutions, but are stable in dry conditions and have a long shelf life, such as antibiotics,

vaccines, blood products and other biological tissues.


Features


◎ Seven inch true color industrial touch screen, high control precision, stable performance, easy operation

without manual.

◎ International famous brand compressor, high efficiency and energy saving, more stable

◎ The filling valve, water release valve and high vacuum safety diaphragm valve can be connected with inert

gas to extend the material shelf life.

◎ Monitoring screen; real time monitoring of diaphragm temperature, cold trap temperature, vacuum degree and

other operating conditions.

◎ Data record mode, data record multiple choice, data export and other functions.

◎ Freeze drying curve query function, you can view temperature, vacuum and other curves at any time.

Specification

Model

TYPE A

TYPE B

TYPE C

TYPE D

Lyophilized area

0.1 ㎡

0.08 ㎡

0.1 ㎡

0.08 ㎡

Sample tray （ mm ）

180mm*4

180mm*3

180mm*4

180mm*4

Overall power

950W

Cryo-temperature

-55 ℃ or -80 ℃ (Optional)

Limit vacuum

＜ 5 Pa

Plate spacing

70mm

100mm

70mm

100mm

Pumping rate (L)

2L/S

Water capture capacity

3-4kg/24h

Cooling mode

Air cooling

Host weight

48kg

Supply voltage

220V±10% 50Hz

Operating conditions ambient temperature

10 ℃ ~30 ℃

Relative humidity

≤70%
