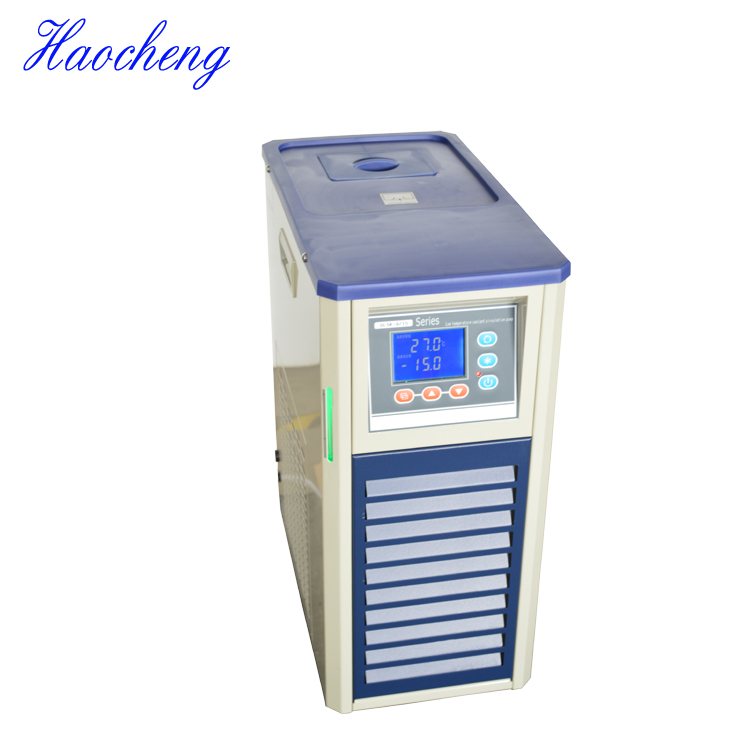

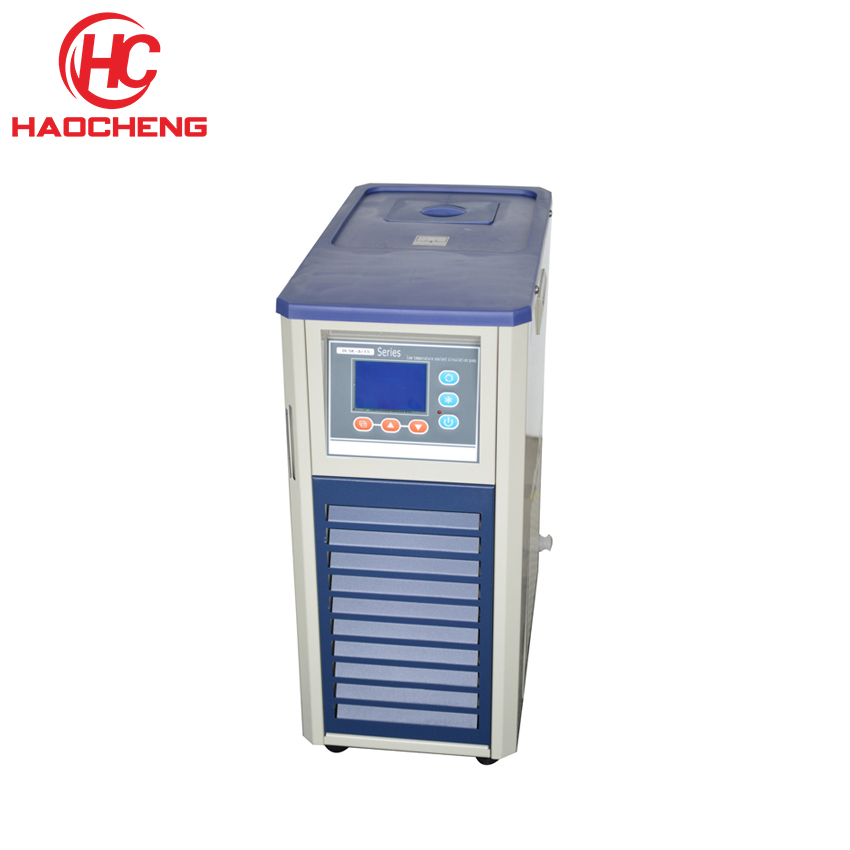

3L Low-temp Circulating chiller

Introduction：

1）3L / -20 ℃. 2）Imported Compressor . 3) LCD digital display . 4) Stainless Steel 304 for Bath

Print the current page

Tel： +86-134-2513-4344

Email：hcinstrument@163.com

Share：
Order

             HC series is ideal for internal and external temperature control when heating and/or cooling are required. This compact,space-saving design offers consistent system performance and easy operation at an unbeatable low price.



             This unit can be utilized for a variety of end-user and OEM applications,including electron microscopes, general laboratory apparatus and cooling, water-jacketed incubators, rotary evaporators, electrophoresis , spectrophotometers, enzyme and protein assays, laser cooling and more.



Main features



1)The microprocessor-based PID controller increase heat/cool responsiveness to ensure constant temperature.

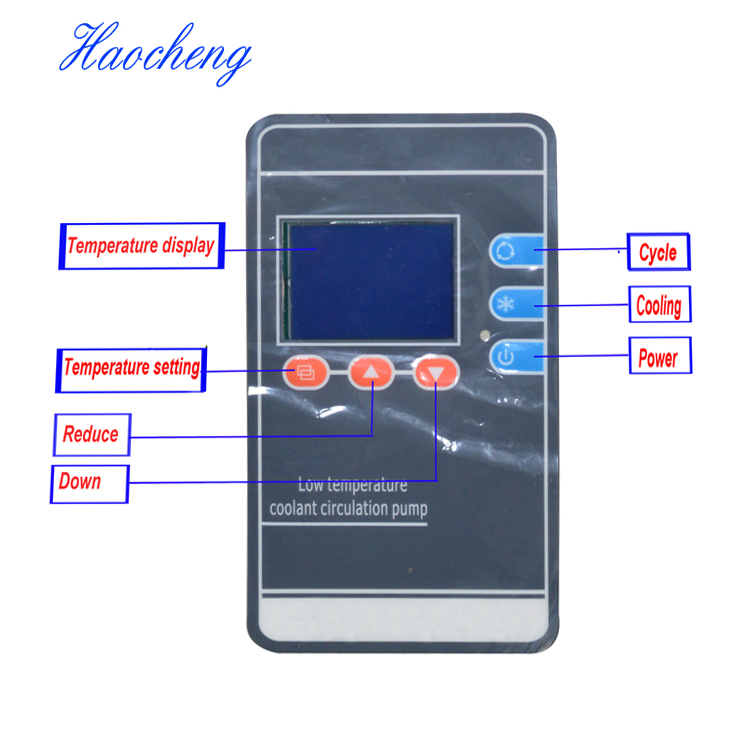

2)The unique LCD display panel and environmental control system features part-load sound levels below

that of conventional speech at a distance of two meters



3)Environmental technology also optimize compressor and evaporator performance, reducing overall energy consumption and prolonging compressor life.



4)QDC fittings and stainless steel reservoir facilitate user-friendly operation and simple maintenance.

The vinyl feet ensure stable placement on your benchtop.

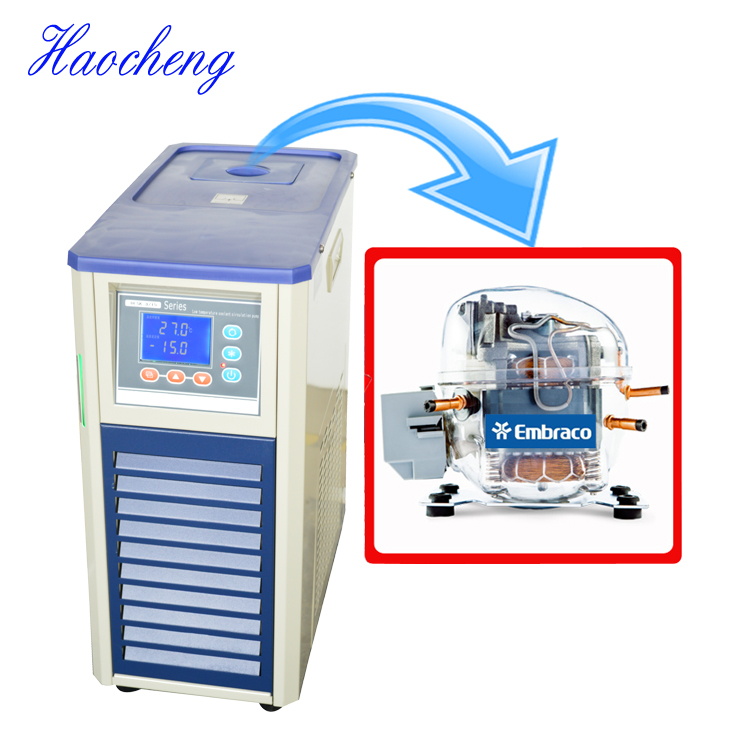

5) Used famous compressor Brand--Brazil Embraco Aspera hermetic compressors





 Model  HC-3/20
 Electrical requirements  110V 60Hz 1-PH or 220V 50/60Hz, 500 watts
 Compressor  Make: Embraco (Brazil)
 Power: 115V 60Hz 1 HP
 Number of compressor: one
 Refrigerant: R404A
 Cooling capacity at 0°C/32°F: 400 W
 Recirculating pump  Output: 15 watts
 Power: 110V 50/60Hz 310mA 2650-3100 rpm
 Pumping speed: 17 L/min or 4.5 gallon/min
 Maximum head: 6.6 feet or 2 meter
 Maximum pressure: 2.9 psi

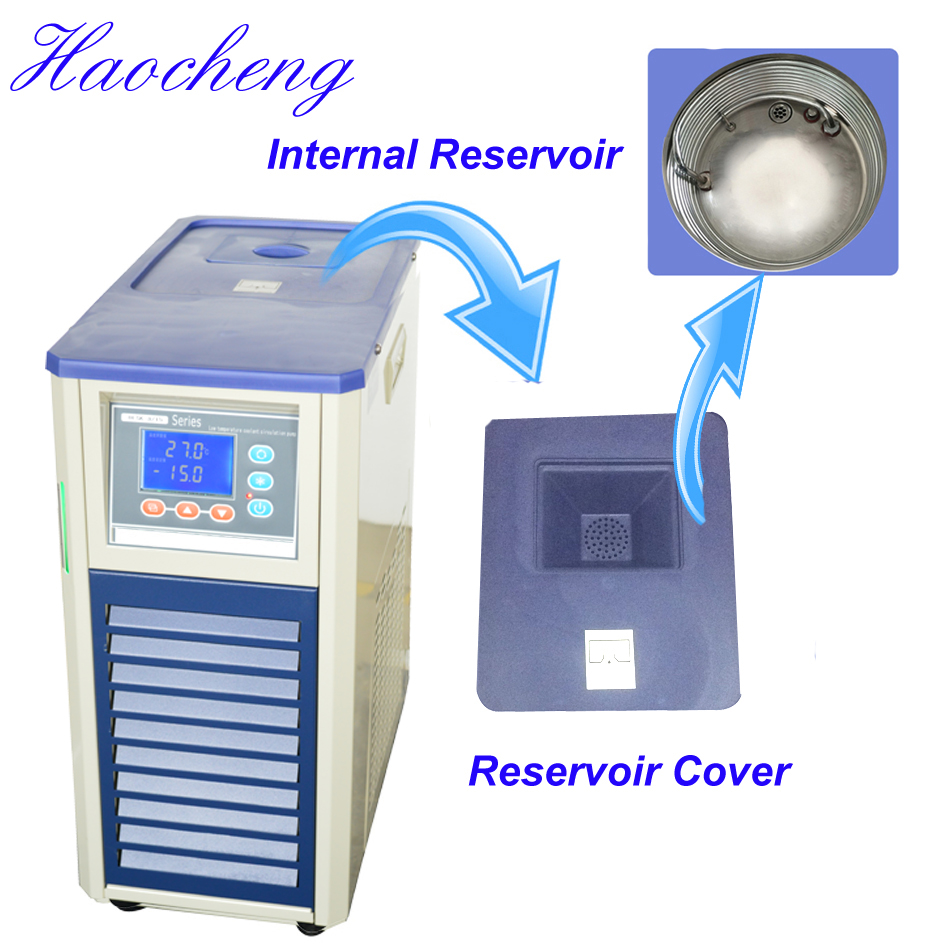

 Reservoir  Dimensions: 5 x 11 x 5" (WxDxH)
 Material: Type 304 stainless steel, polished
 Chilling fluid connection: 3/8" hose barb x 2
 Capacity: 3 liters or 0.8 gallons
 Temperature controller

 Type: Digital microprocessor PID controlled
 Display unit: Degree Celsius °C
 Temperature accuracy: +/- 2°C
 Temperature range: Ambient to -20°C

 Temperature sensor type

 Pt100

 Housing  Powder coated type 42 stainless steel
 Recommended coolant  For 50°F/10°C or higher:
            distilled water
 Between 50°F/10°C and 5°F/-20°C:
            50% ethylene glycol (or propylene glycol) + 50% distilled water
 Working environment  -15°C/5°F to 25°C/77°F, at <66% humidity
 Built-in swivel casters  No
 Unit/shipping dimensions    16 x 9 x 22" / 24 x 14 x 30" (WxDxH)
 Unit/shipping weight  60 Lbs / 105 Lbs
 Safety  Compressor over-temp protection
 Short circuit and ground protection
 Over-current protection
