50L Low Temperature Recirculating Chiller

Introduction:

(1).50L (2).Imported Compressor (3). LCD digital display (4). Stainless Steel for Bath

Print the current page

Tel: +86-134-2513-4344

Email:hcinstrument@163.com

Share:



Introduction



Chiller is usually used to provide constant low temperature condition for inspections, chemical, biological and

physical experiments which need to be carried on under low temperature. It can be combined with the rotary

evaporator, glass reactor and other instruments to proceed kinds of chemical reactions.

  Feature

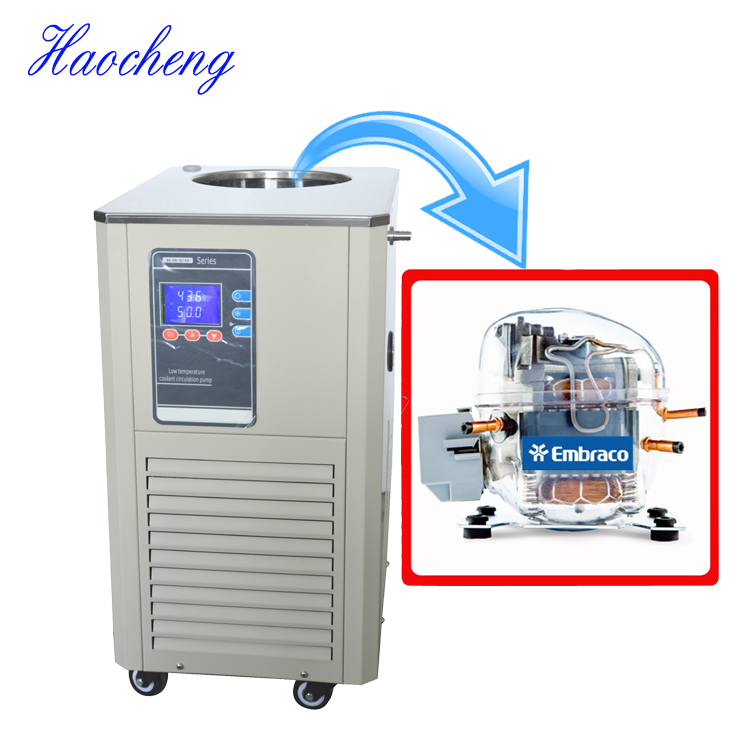

Used imported famous cooling compressors,such as Embraco compressors and can work for a long time


◎  Combine with Rotary Evaporator and Vacuum Pump to form a complete small experimental facility.

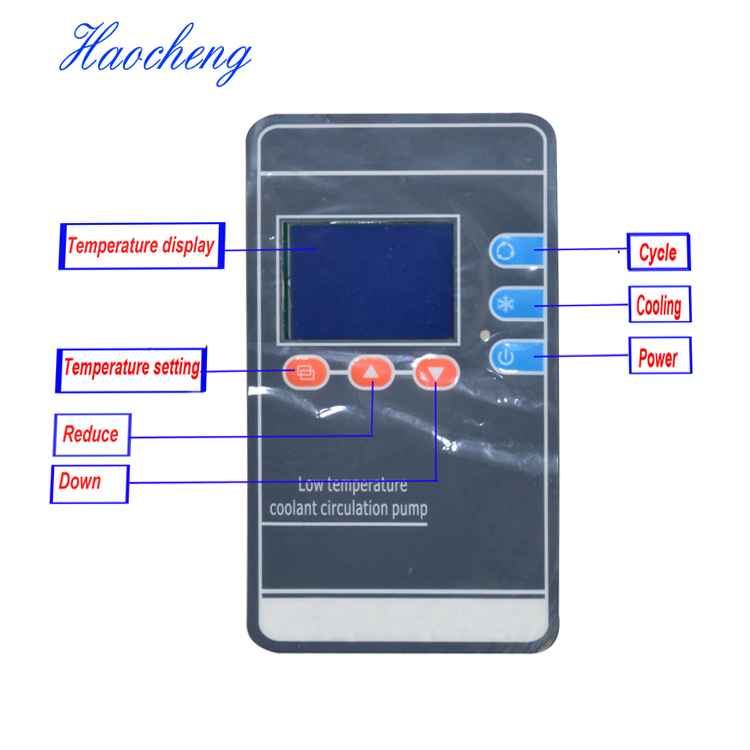

  ◎  Digital LCD display make the temperature setting simple

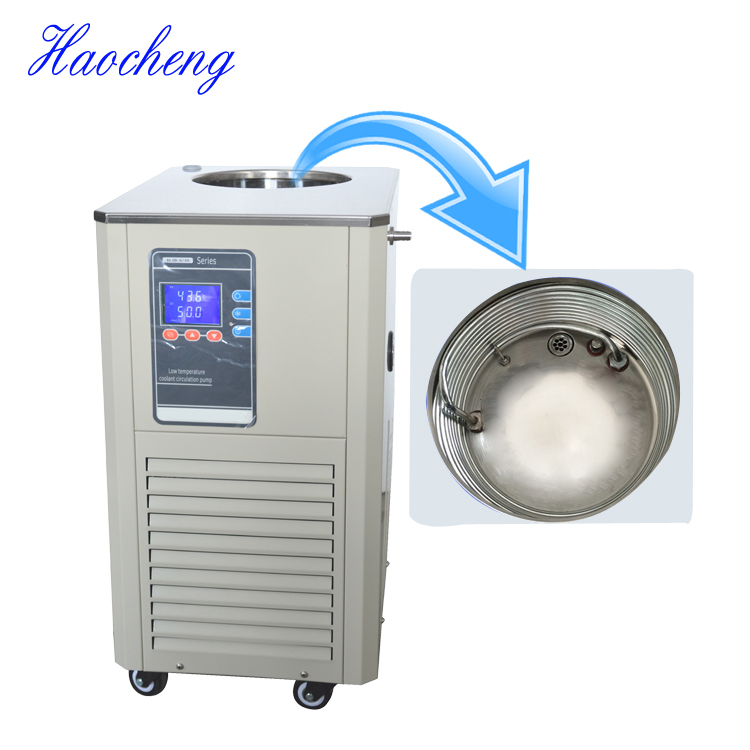

  ◎  Stainless steel reservoir facilitate user friendly operation and simple maintenance







Specifications



Model  HC-50/-30
Volume (L) 50
Lowest Temp (°) -30


Compressor Brand

Embraco Aspera(Original in Brazil)

Working Condition   Temperature  range (°) -30 ˜ 20
Envirnmental Temperature (°)  ≤ 25
Relative Humidity(%) ≤ 60
Power supply

AC380V±10%,50/60Hz,

AC220v,± 10%,60Hz.



Temperature

Control

Temp Display LCD Digital Display
Temp Accuracy (°) ± 2
Thermocouple Type PT100
Meter Adjustment Range  ± 50
Safety protection  Delay Time ,Overcurrent, overheating
Cooling Capacity (w) 10° 8200
7500
-10° 4600
-20° 2570
-30 1040
Cooling Unit  power(w) 3235
Current(A) 8.2
Refrigerants R22
Circulating Pump  Power (w) 280
Flow(L/ MIN )  30
Lift (m) 12
Outer Loop interfaces  4/5″ stainless steel valves
Reservoir Dia(mm) ¢500x 280
Material  1 Cr18Ni9Ti.
Machine size (mm)  790 x 610 x 1150mm
Net Weight ( Kg)  160
Standard Outfits Vacuum Insulation Tube 4m
Technical Documents 1pc
