Your location：Home > Products > Magnetic Stirrer & Heating Mantle > TWCL-B Series Magnetic Hotplate Stirrer

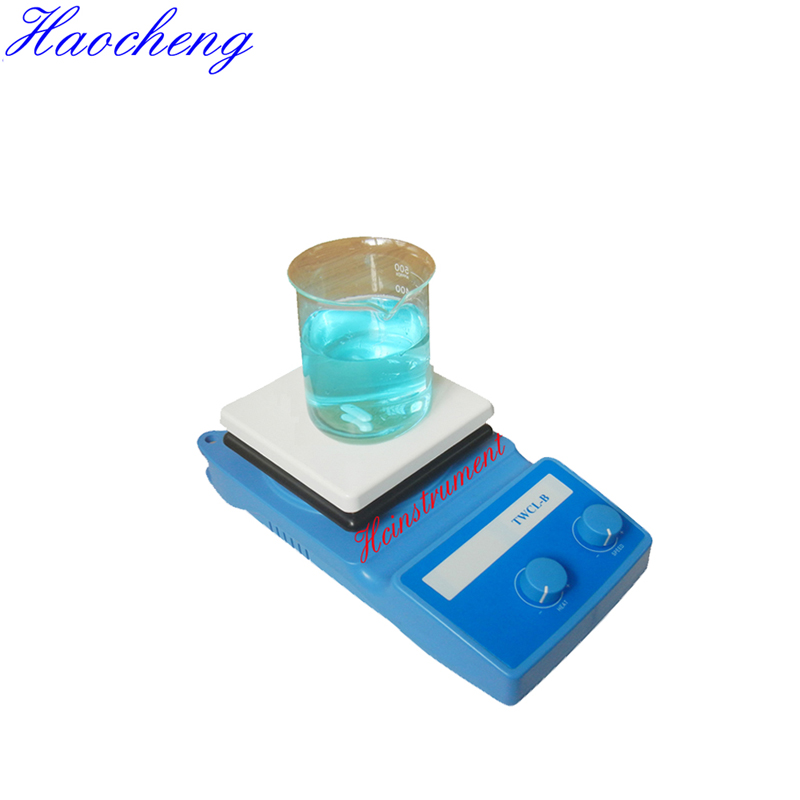

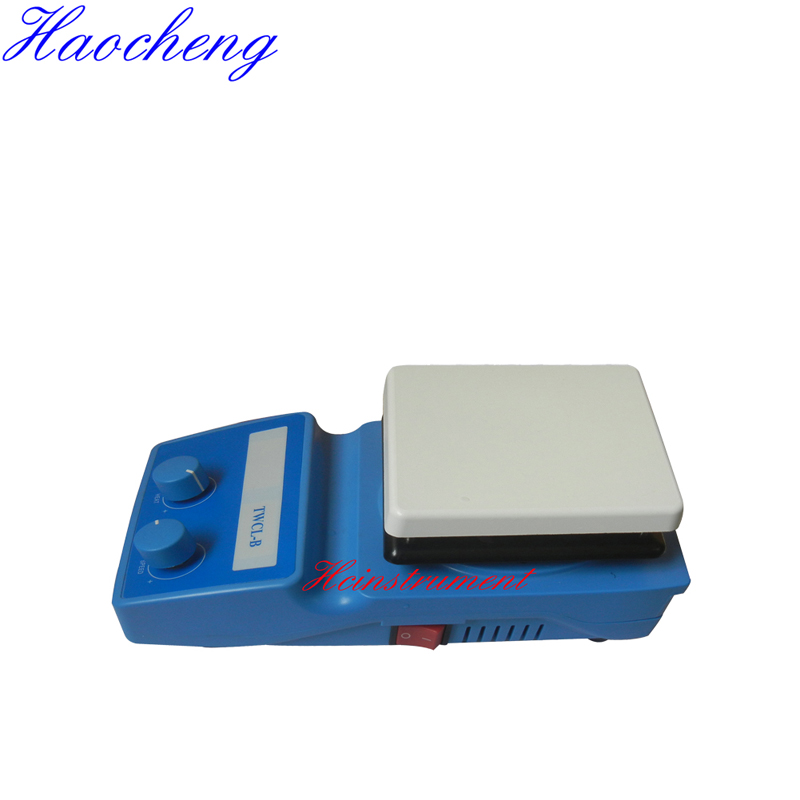

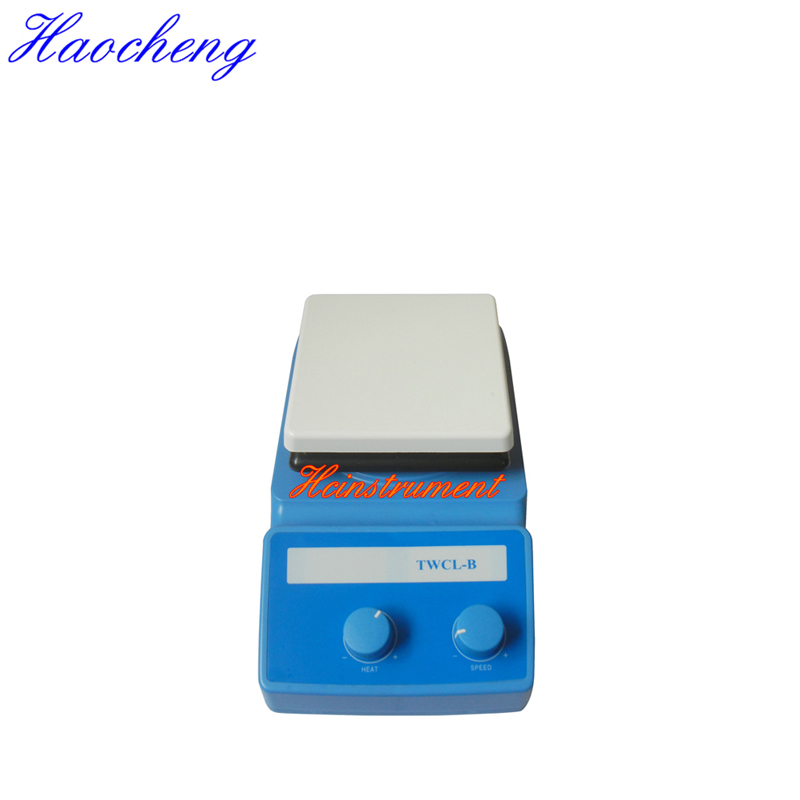

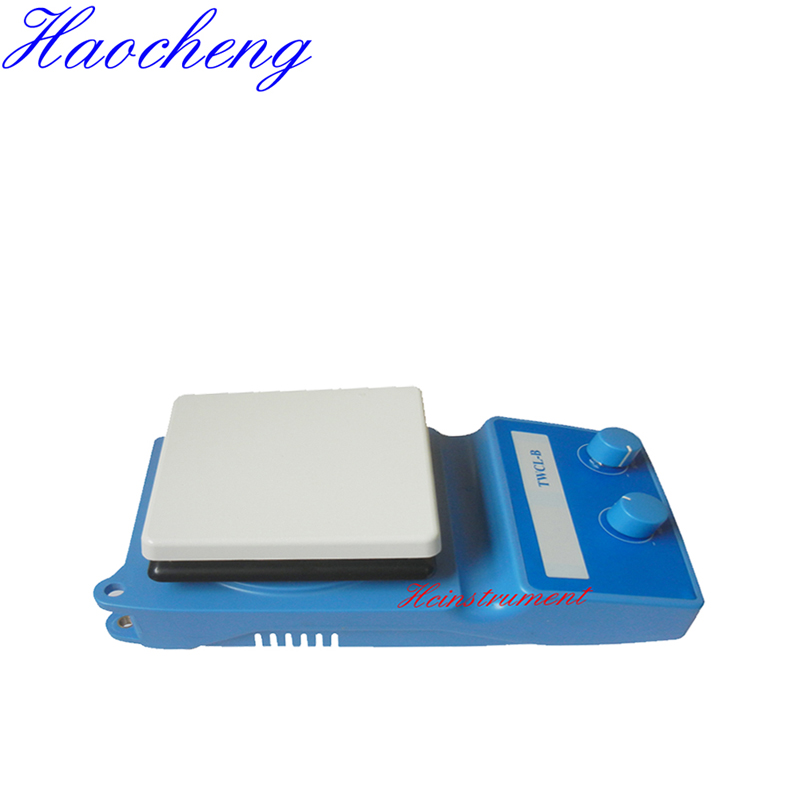

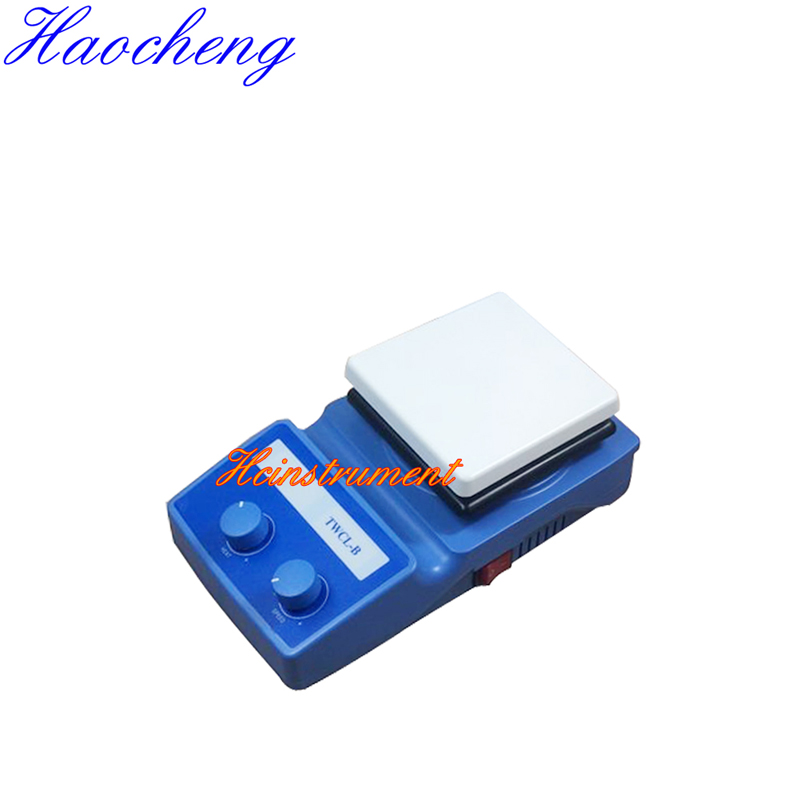

TWCL-B Series Magnetic Hotplate Stirrer

Introduction：

1). Heating Function: Rt-380Degree 2). Magnetic Stirrer: 0-1800 RPM 3). 2L ,5L,10L,15L

Print the current page

Tel： +86-134-2513-4344

Email：hcinstrument@163.com

Share：
Order

Introduction


Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven motorized

stirrers because they are quieter, more efficient, and have no moving external parts to break or wear out

(other than the simple bar magnet itself). Because of its small size, a stirring bar is more easily cleaned

and sterilized than other stirring devices. They do not require lubricants which could contaminate the

reaction vessel and the product. They can be used inside hermetically closed vessels or systems, without

the need for complicated rotary seals.  Magnetic stirrers may also include a hot plate or some other means

for heating the liquid.



Features


◎ Very compact and simple to operate

◎ Knob Control , Heating temperature: Rt-380 Degree and mixing speed :100-1800 RPM

◎ Heat and corrosion resistant industrial plastic housing for durability

◎ Ceramic coated aluminum heating plate for great heat distribution and corrosion resistance

◎ Specially designed housing prevents spill from damaging the electronic components inside

◎ Secondary heat insulation plate prevents heat loss and eliminates heat damage to electronic components

◎ Adjustable temperature and rotation speed



Specification


Model

TWCL-B1140

TWCL-B1180

TWCL-B1230

TWCL-B1280

Volume

2L

5L

10L

15L

Heating Plate (MM)

140*140

180*180

230*230

280*280

Heating Power(W)

450

550

750

1000

Heating Plate Material

Ceramic Coated Aluminum (White or Black)

Temperature Range

Rt-380 °C

Mixing Speed

100-1800RPM

Temperature Control

PID Auto Control

Thermocouple Probe(Sensor)

PT100, with Inner and Outer Thermocouple

Permissible Working Temperature

Rt to 40°C

Voltage

220V/ 110V Optional

Dimensions (MM)

350 X250 X 150

440X 290X 180

500X 400X 350

550X 420 X 380

Weight (KG)

3.5

5.5

7.5

9















































Previous： CJB-A Series Magnetic Stirrer

Next： ZNCLBS Series Digital Display Magnetic Hotplate Stirrer
