Your location：Home > Products > High and Low Temperature Circulating Heater Chiller > GDSZ Series Circulating Heater Chiller, 200 Degree

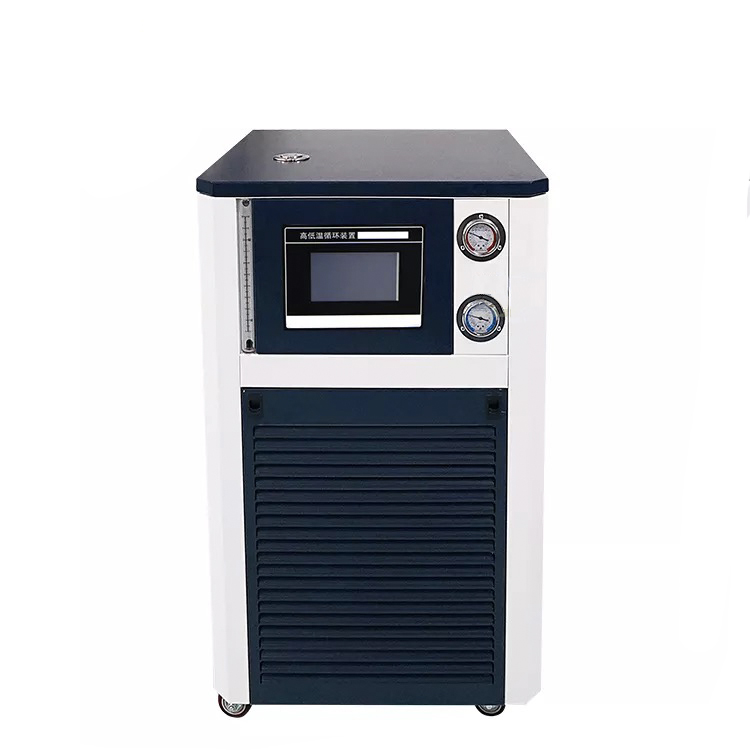

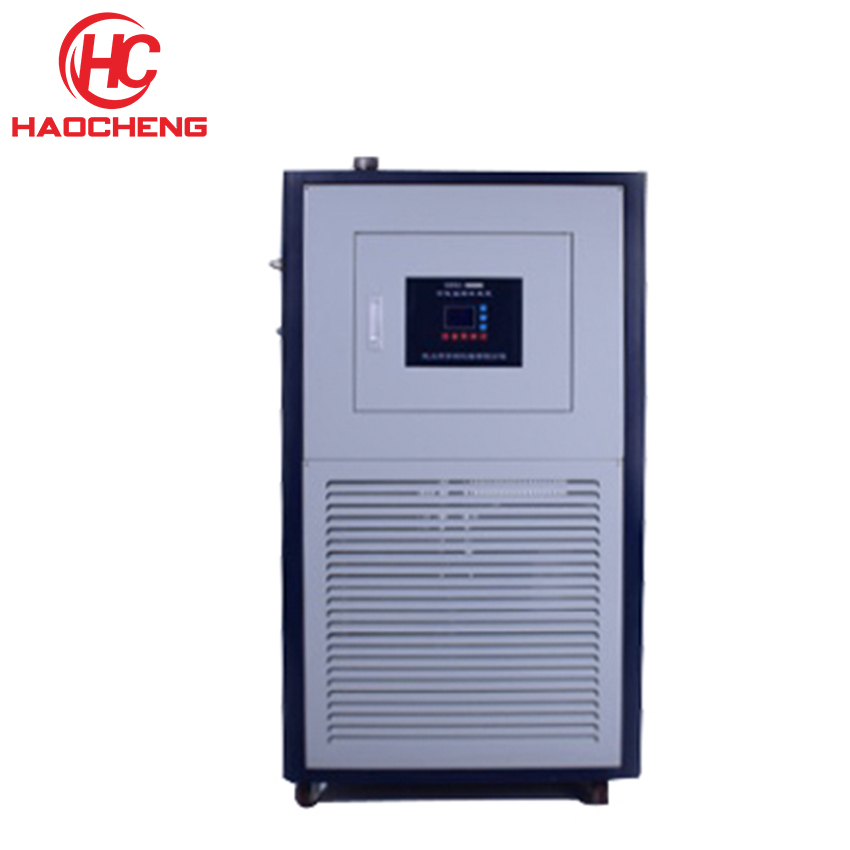

GDSZ Series Circulating Heater Chiller, 200 Degree

Introduction：

1) Capacity: 5L -100L 2) Max Temperature: 200 Degree 3) Min Temperature: -20,-30,-40,-60,-80

Print the current page

Tel： +86-134-2513-4344

Email：hcinstrument@163.com

Share：
Order

Introduction


This product has both cooling function and heating function. It is composed of refrigeration unit, heating unit,

circulation system and control system.The refrigeration part is mechanically refrigerated with a fully enclosed

compressor, matching with air-cooled condenser, plate-type heat exchanger, expansion valve, pressure protector,

etc. to meet the cooling requirements. The heating part is to use an electric heating tube to heat the circulating fluid.

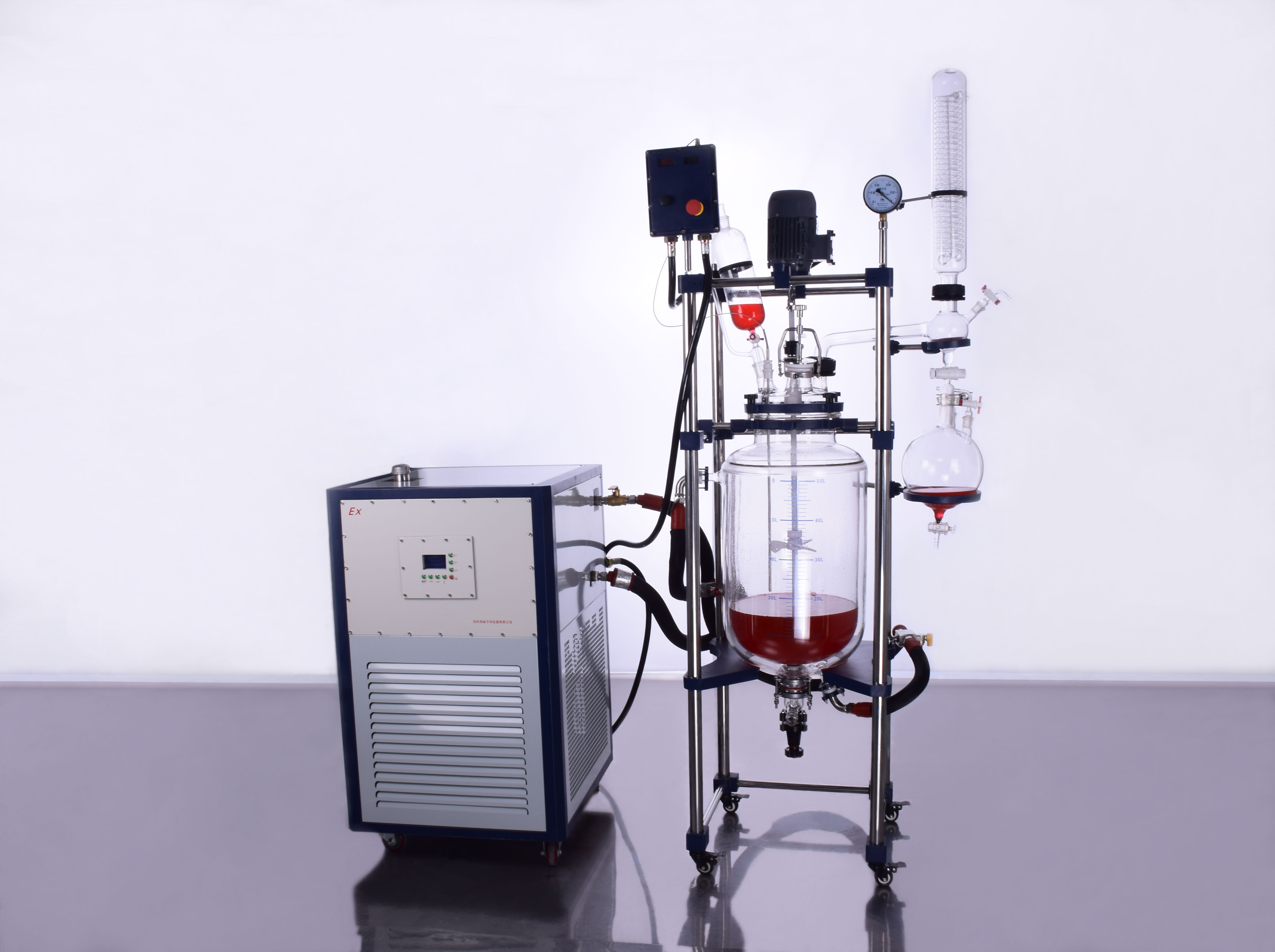

The refrigerant or the heating medium is transported to the interlayer of the supporting equipment through the

built-in circulation pump and the external circulation pipeline, indirectly cooling and heating the materials in the

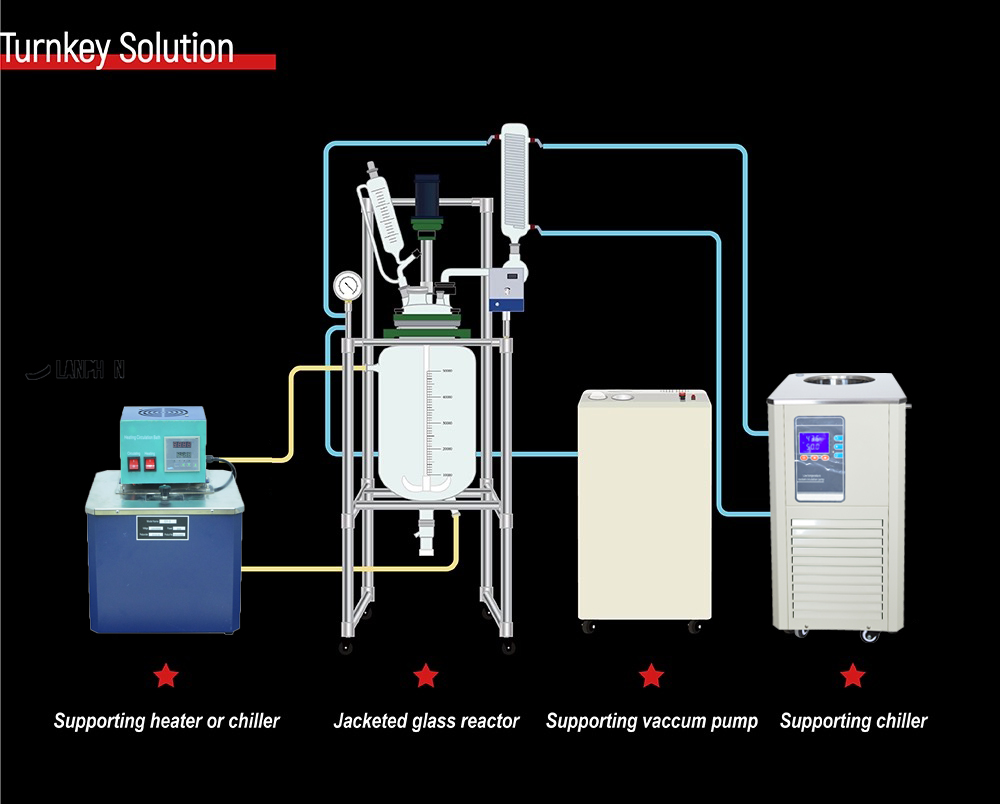

reactor.During external circulation, the upper outlet pipeline of this product is connected to the lower inlet pipeline

of the kettle body, and the circulating fluid is returned from the upper circulation port through the pipeline to the

lower return port of the product to form a complete circulation.



Specification



Model

GDSZ-0520

GDSZ-1020

GDSZ-2020

GDSZ-3020

GDSZ-5020

GDSZ-10020

Machine type

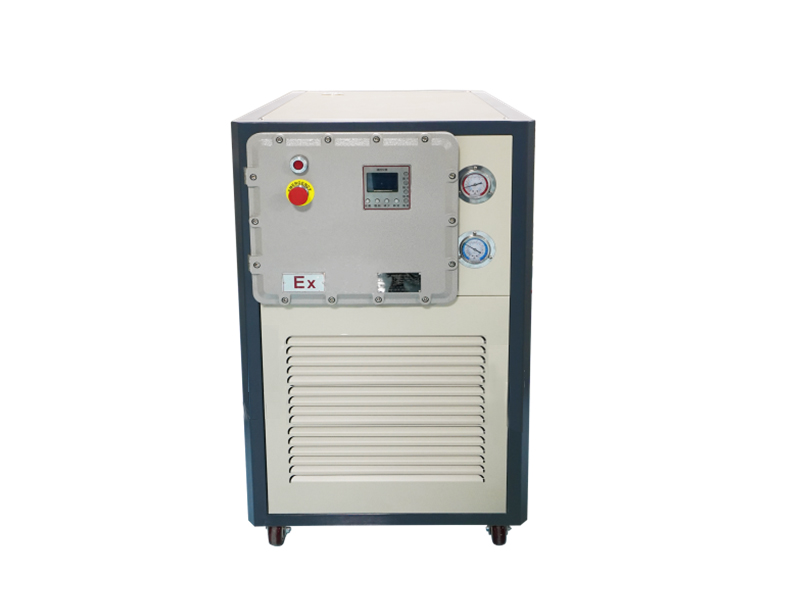

Normal type / Explosion-prof type

Circulation type

Enclosed circulation

Temp control

-20 ℃ to +200 ℃

Cooling capacity

0.735kw

1.1kw

1.5kw

1.8kw

2.2kw

5.15kw

Max lift

4-6m

4-6m

4-6m

4-6m

15m

15m

Max flow

20-40 L/min

20-40 L/min

20-40 L/min

20-40 L/min

30L/min

30L/min

Temp control

Intelligent PID control

Interface

Sensor Interface,USB Interface(stand type)

Heater power

3KW

3KW

3KW

6KW

6KW

9KW

Refrigerant

R410A/R22/R404A

Temp sensor

(RTD)platinum resistor pt100

Power supply

220V/50HZ

380V/50HZ

Work temp

5 ℃ -30 ℃

Note: Every capacity has several different temperature range, such as -20,-40,-80 and so on.
