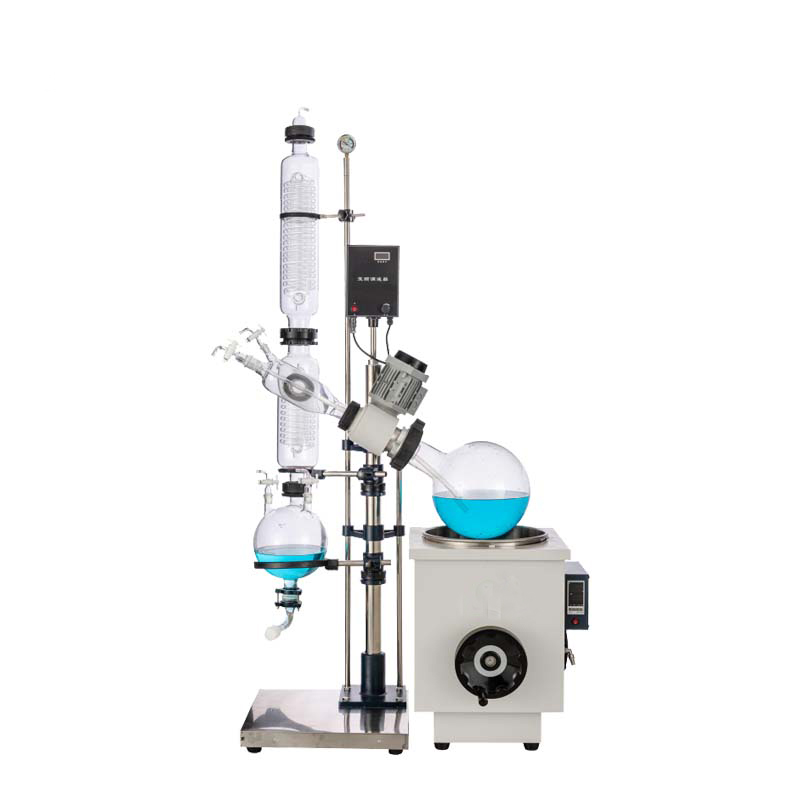

HEM-10 10L Rotary Evaporator with Manual Lift

Introduction:

Rotary Evaporator with Manual Lift

Print the current page

Tel: +86-134-2513-4344

Email:hcinstrument@163.com

Share:

Introduction



HEM-10 Rotary Evaporator is used for continuous distillation of volatile solvent under vacuumconditions. It is a common instrument for labs, composed of a motor, distilling flask, heating bath,condenser tube and etc.



Feature


Built-in vacuum controller, High vacuum performance.

Manual lifting with easy and quick operation.

High borosilicate glass 3.3(GG-17), good physical and chemical properties.

PTFE sealing parts and tight sealing to offer high vacuum and high evaporation rate



Specification



Model

HEM-10

Condenser

Vertical Double Backflow Integration Standard Condenser

Collect Flask

5L

Rotary Flask

10L,Flange size #95

Motor Power

120W

Power Voltage

220/110V for Optional

Bath Power

3000 W

Bath Volume

Φ 350 *220H(mm), 21L

Bath Material

SS304

Evaporation Rate(Water)

≥ 3L/ H

Speed Range

0 - 120 RPM

Lift and Stroke

Water Bath Lifting with Manual Control, 180 mm

Glass Material

GG-17 Glass

Heating Temperature Range

Rm-99 Degree

Heat Control

PID

Heat control accuracy

±1 Degree

Ultimate Vacuum

0.098 Mpa

Weight

109kg
