Your location：Home > Products > Low-temp Circulating Chiller > 20L Low Temperature Recirculating Chiller

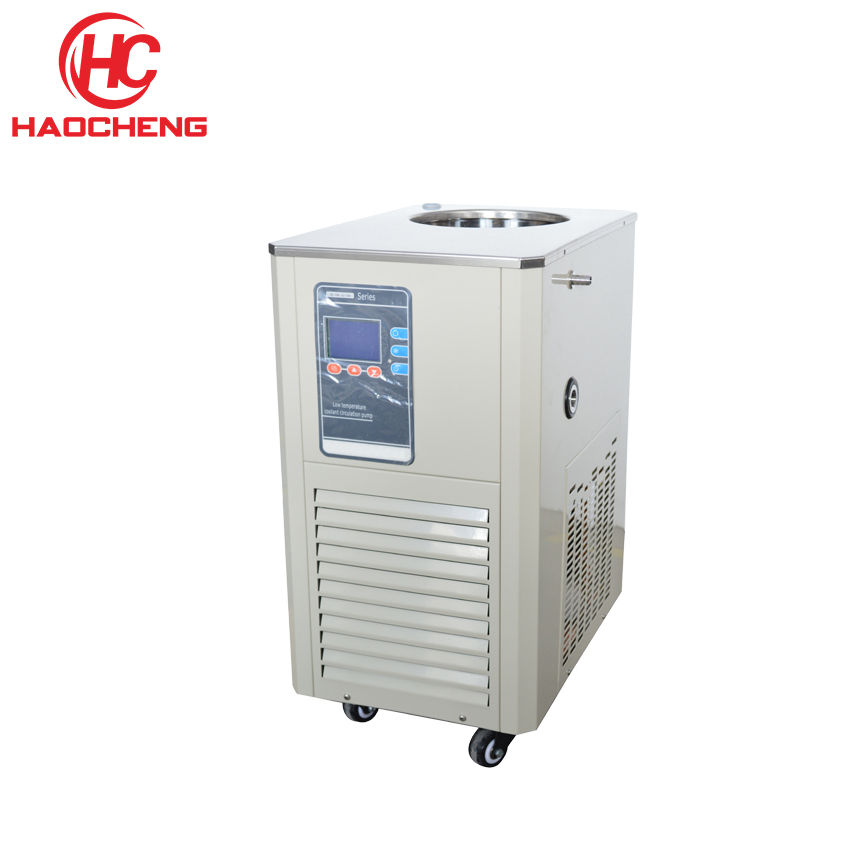

20L Low Temperature Recirculating Chiller

Introduction：

(1). 20L (2). Imported Compressor (3) LCD digital display 4). Stainless Steel for Bath

Print the current page

Tel： +86-134-2513-4344

Email：hcinstrument@163.com

Share：
Order

Introduction



Chiller is usually used to provide constant low temperature condition for inspections, chemical, biological and

physical experiments which need to be carried on under low temperature. It can be combined with the rotary

evaporator, glass reactor and other instruments to proceed kinds of chemical reactions.

  Feature

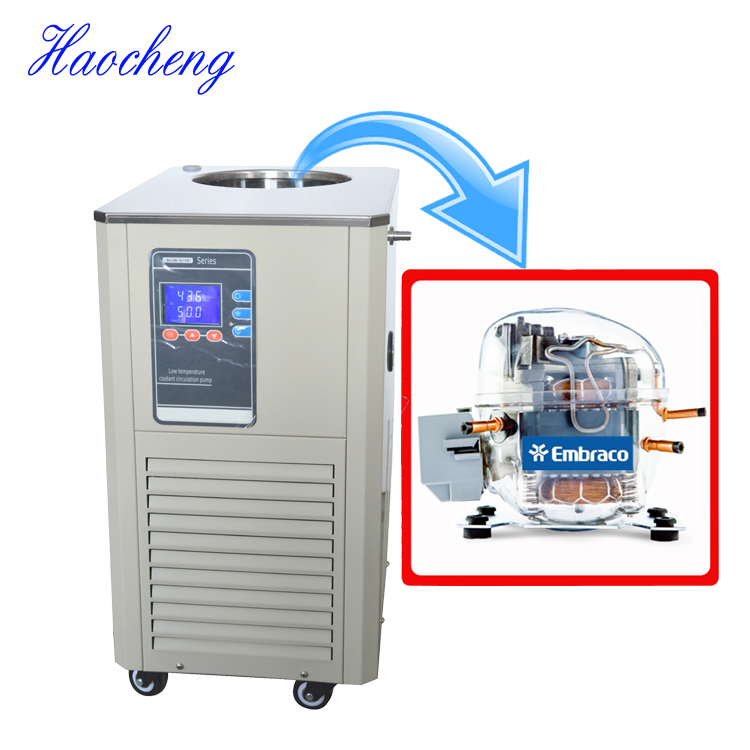

◎ Used imported famous cooling compressors,such as Embraco compressors and can work for a long time


◎  Combine with Rotary Evaporator and Vacuum Pump to form a complete small experimental facility.

  ◎  Digital LCD display make the temperature setting simple

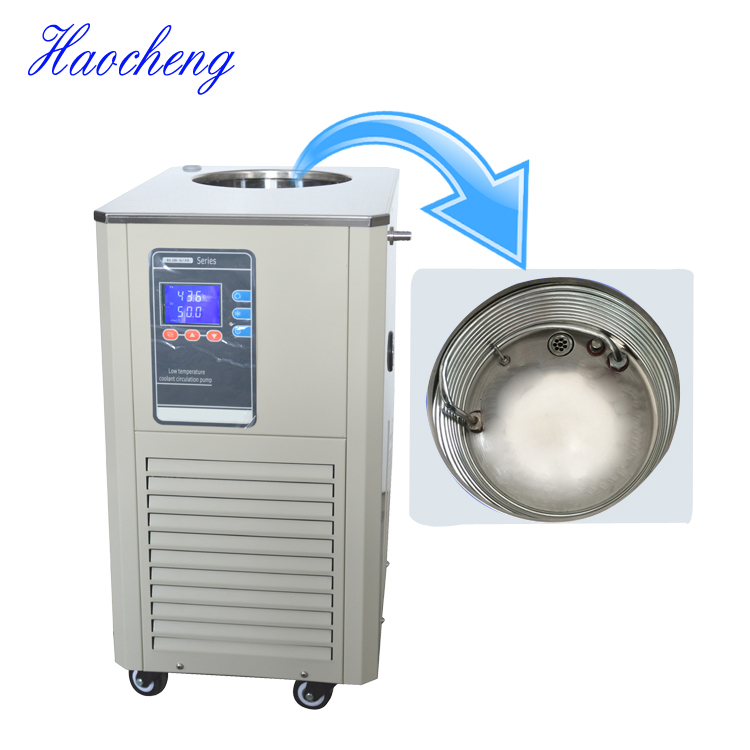

  ◎  Stainless steel reservoir facilitate user friendly operation and simple maintenance









Specification



Model

HC20/10

HC20/20

HC20/30

HC20/40

HC20/60

HC20/80

HC20/100

HC20/120

Bath Volume

20L

Working Temperature Range ( °C)

-10 to 20

-20 to 20

-30 to 20

-40 to 20

-60 to 20

-80 to 20

-100 to 20

-120 to 20

Power Supply

220V-50HZ/110V-60HZ

Temperature Controller

Digital Microprocessor PID Controlled and Thermocouple Type: PT100

Temperature Precision ( °C)

±0.2

Compressor

Imported Compressor,Such as Embraco

Cooling Capacity(W)

884-1894

813-2533

1022-2936

748-3228

510-3679

160-3979

120-4597

120-5997

Refrigerant

R404A

Reservoir

SS304

Flow rate (L/Min)

20

Lift (M)

5-7

Safety Protection

Delay time, Over-current, Overheating
