Your location:Home > Products > High and Low Temperature Circulating Heater Chiller > 5L / -25 Lab Low Constant Temperature Stirring Reaction Bath

5L / -25 Lab Low Constant Temperature Stirring Reaction Bath

Introduction:

(1) Capacity: 5L (2) Temperature: -80 ℃ to 99℃ (3)Digital LCD display (4) Heating Funcion (5)Stirring Function

Print the current page

Tel: +86-134-2513-4344

Email:hcinstrument@163.com

Share:

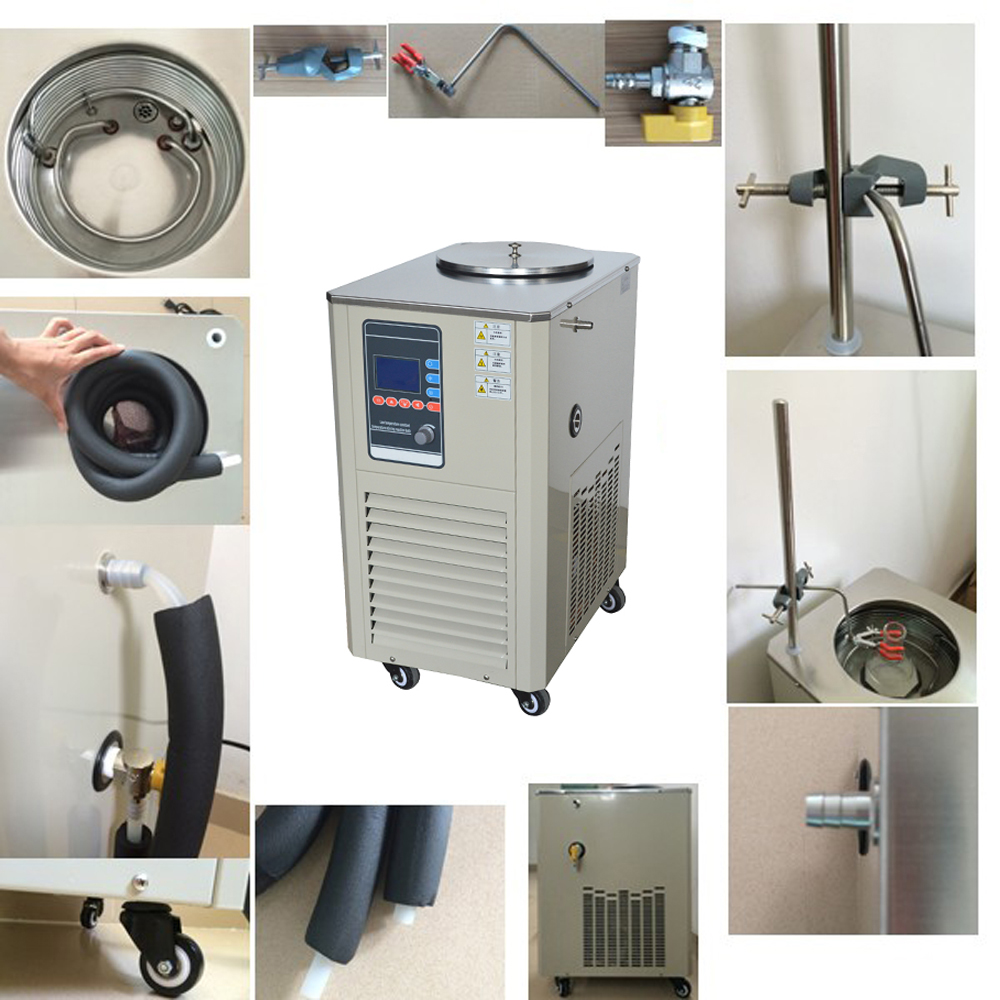

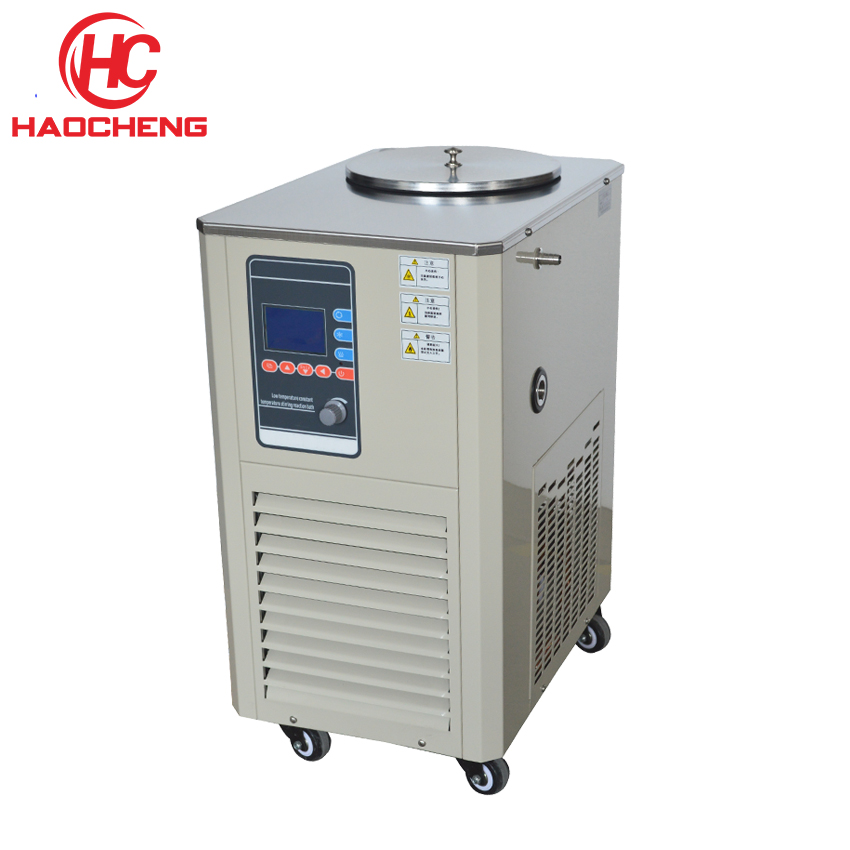

                               5L / -25 Lab Low Constant Temperature Stirring Reaction Bath



Use:



1.An innovate design according to Japan Tokyo physical and chemical equipment company at the similar products.



2.It can have low temperature reactions instead of dry ice and liquid nitrogen and has quite high precision of temp control .



3.Suitable for scientific research, biology, physics, medicine, chemical industry and other departments to do low temp experiments.



Features:

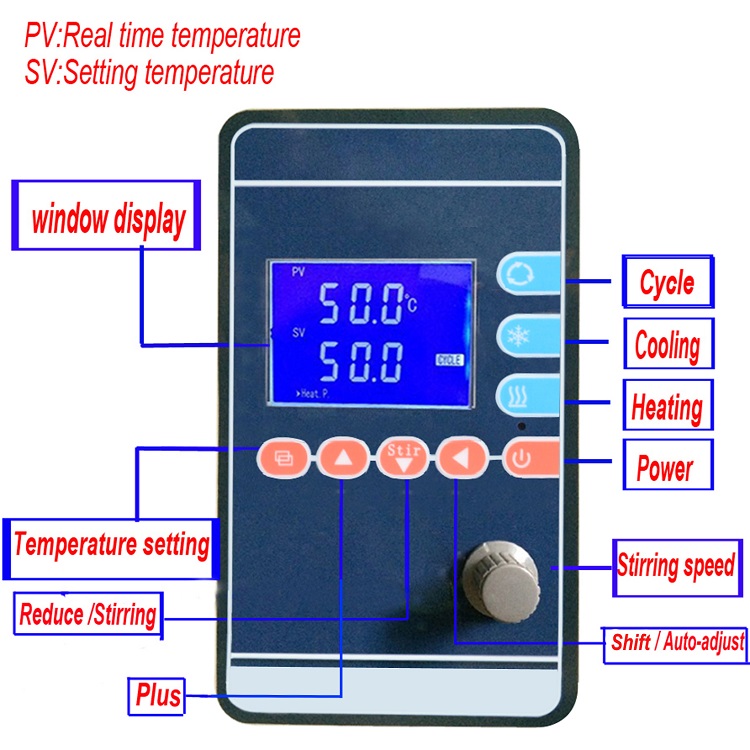

1.Temperature setting and display .Digital



2.The fully closed mixer ,guarantee the stability magnetic stir.



3. Compressor and Oil separator: both imported from Danish Danfoss original Equipment



4.Ternary compound cascade refrigeration



5. .high and low pressure control



6. The Refrigerant R50D , R13, R14



7.Selfdevelop and design controller ,the microcomputer controller,owing delay protection function



8 .Use the balance of heat to cold reactions, so that the temperature accuracy of ± 0.1 °C



9 .Shell material : cold-rolled plate , electrostatic spray







Specifications



Model

HC-R2505

Volume( L )

5L

Lowest Temp (℃)

-25 ℃

Working Temperature rang

-25~99℃

Cooling Capacity (W)

166-1100W

Flow (L/min)

14L/min

Lift (m)

4-6

Coolant Temp

-25

Temp Accuracy

+/-0.5℃

Temperature control

PID Auto control

Temperature Display

Digital Display

Thermocouple type

PT100

Voltage  Supply

110/220V

Machine Size

55 x40x 80CM

Previous: 10L / -40 Low Temperature Stirring Reaction Circulating Bath

Next: 10L / -20 Low Temperature Constant Temperature Stirring Reaction Bath
