Your location:Home > Products > High and Low Temperature Circulating Heater Chiller > 10L / -80 Lab Low Temperature Stirring Reaction Tank Bath

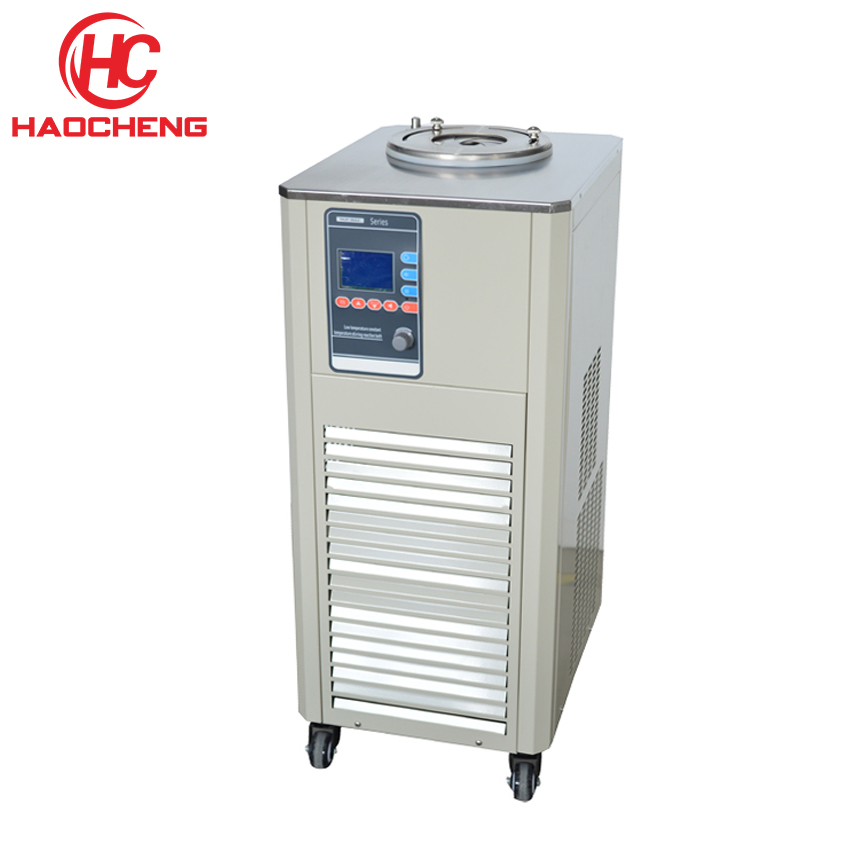

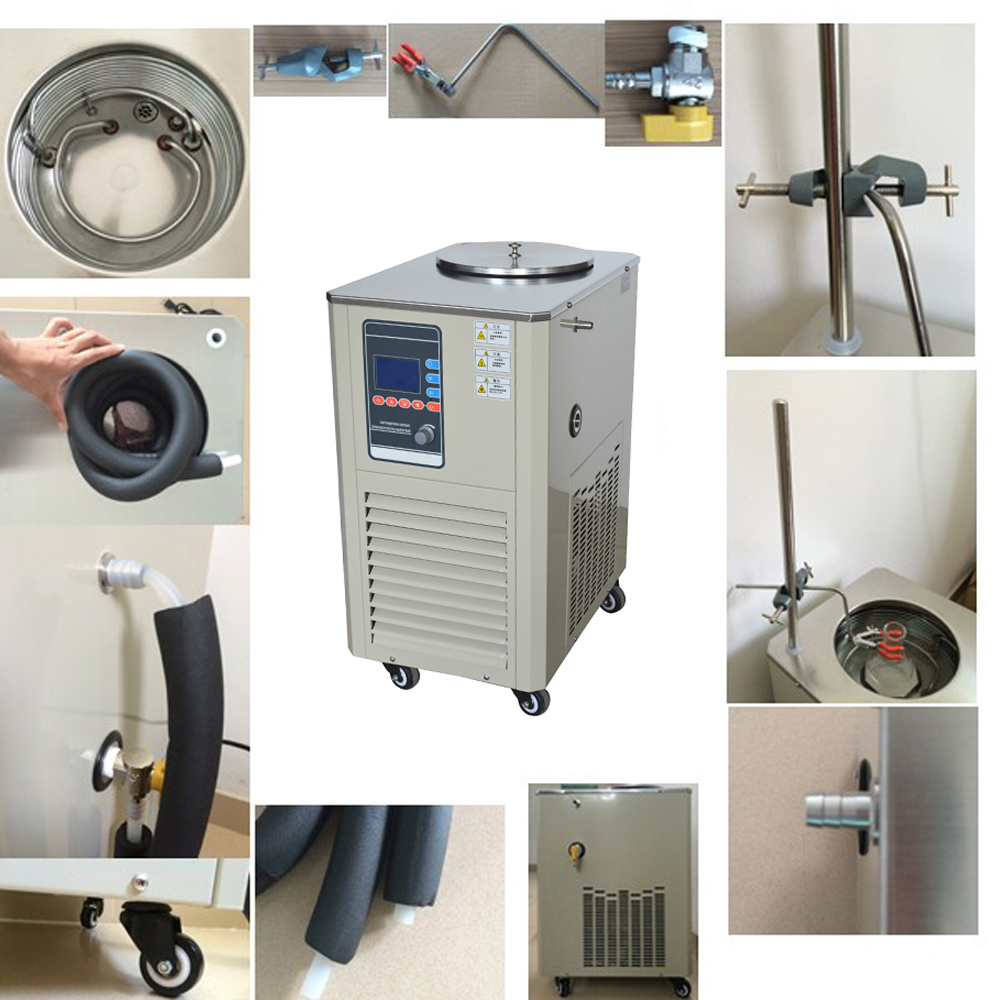

10L / -80 Lab Low Temperature Stirring Reaction Tank Bath

Introduction:

(1) Capacity: 10L (2) Temperature: -80 ℃ to 99℃ (3)Digital LCD display (4) Heating Funcion (5)Stirring Function

Print the current page

Tel: +86-134-2513-4344

Email:hcinstrument@163.com

Share:

                          10L / -80 Lab Low Temperature Stirring Reaction Tank Bath

Use:



1.An innovate design according to Japan Tokyo physical and chemical equipment company at the similar products.



2.It can have low temperature reactions instead of dry ice and liquid nitrogen and has quite high precision of temp control.



3.Suitable for scientific research, biology, physics, medicine, chemical industry and other departments to do low temp experiments



Features:

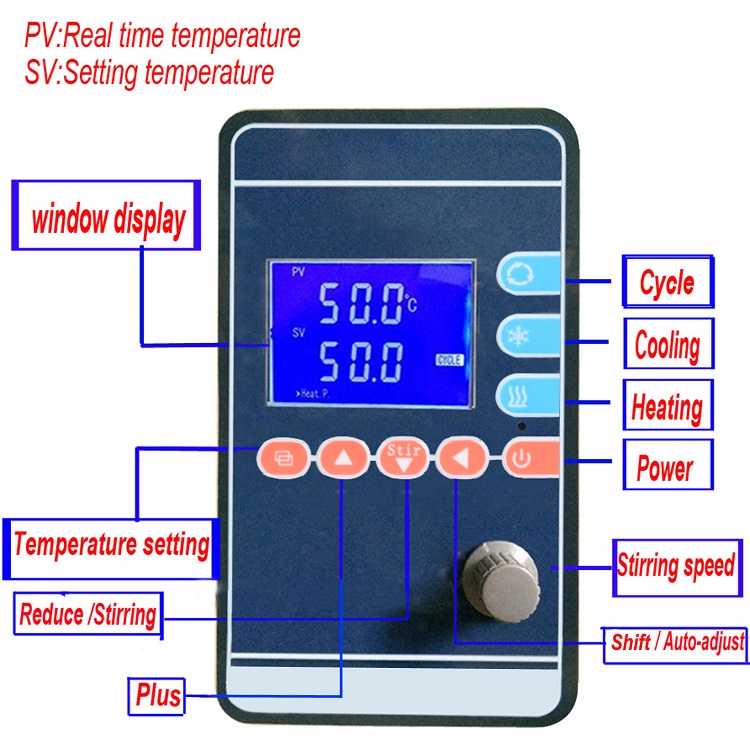

1.Temperature setting and display .Digital

2.The fully closed mixer ,guarantee the stability magnetic stir.

3. Compressor and Oil separator: both imported from Danish Danfoss original Equipment

4.Ternary compound cascade refrigeration

5. .high and low pressure control

6. The Refrigerant R404A , R23

7 .Self-develop and design controller ,the microcomputer controller,owing delay protection function

8 .Use the balance of heat to cold reactions, so that the temperature accuracy of ±2 °C

9 .Shell material : cold-rolled plate , electrostatic spray





Specifications

Model

HC-R8010

Volume( L )

10L

Lowest Temp (℃)

-80 ℃

Working Temperature rang

-80~99℃

Cooling Capacity (W)

90-2780W

Flow (L/min)

20L/min

Lift (m)

5-7

Coolant Temp

-80℃

Temp Accuracy

+/- 2℃

Temperature control

PID Auto control

Temperature Display

Digital Display

Thermocouple type

PT100

Stir speed Range

100- 1500RPM

Stir speed display

Scale , Knob control .

Voltage  Supply

208V-220V

Machine Size

57x48x 95CM

Previous: HM-P Series Programmable Overhead Stirrer with Timer

Next: 10L / -40 Low Temperature Stirring Reaction Circulating Bath
