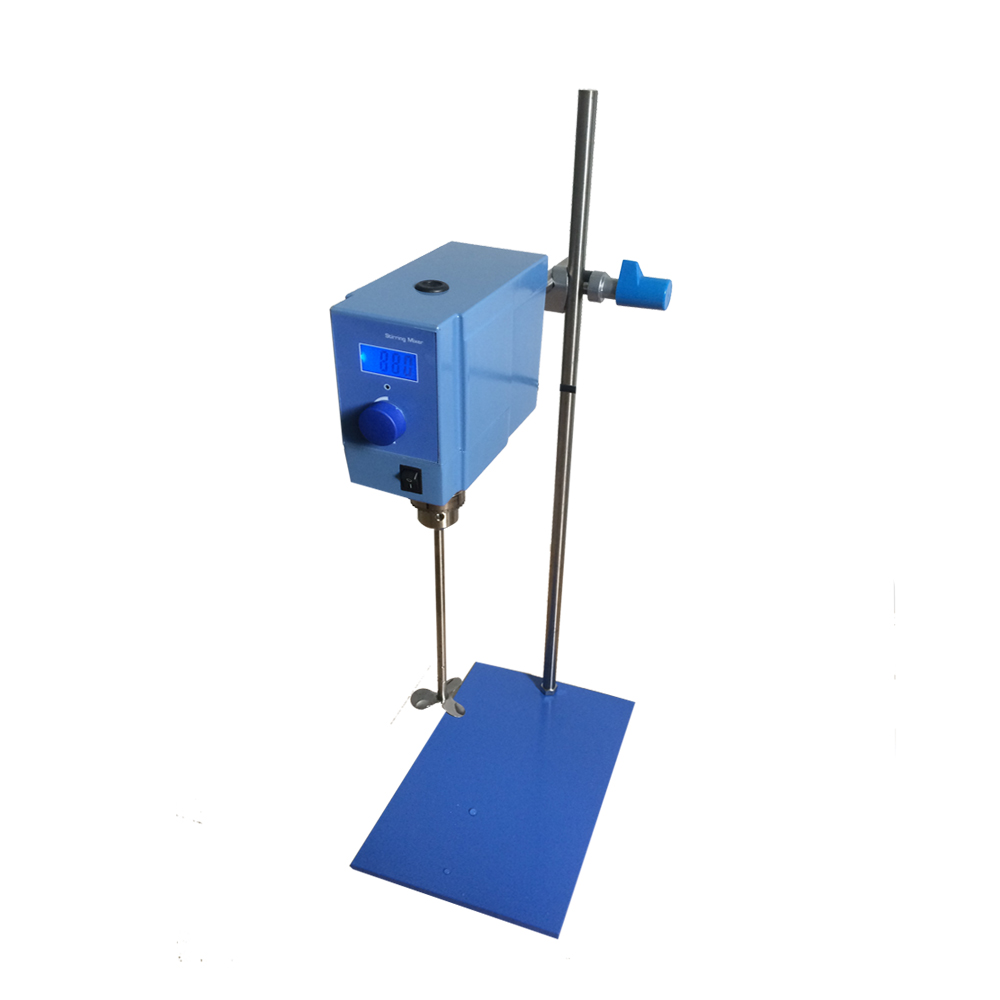

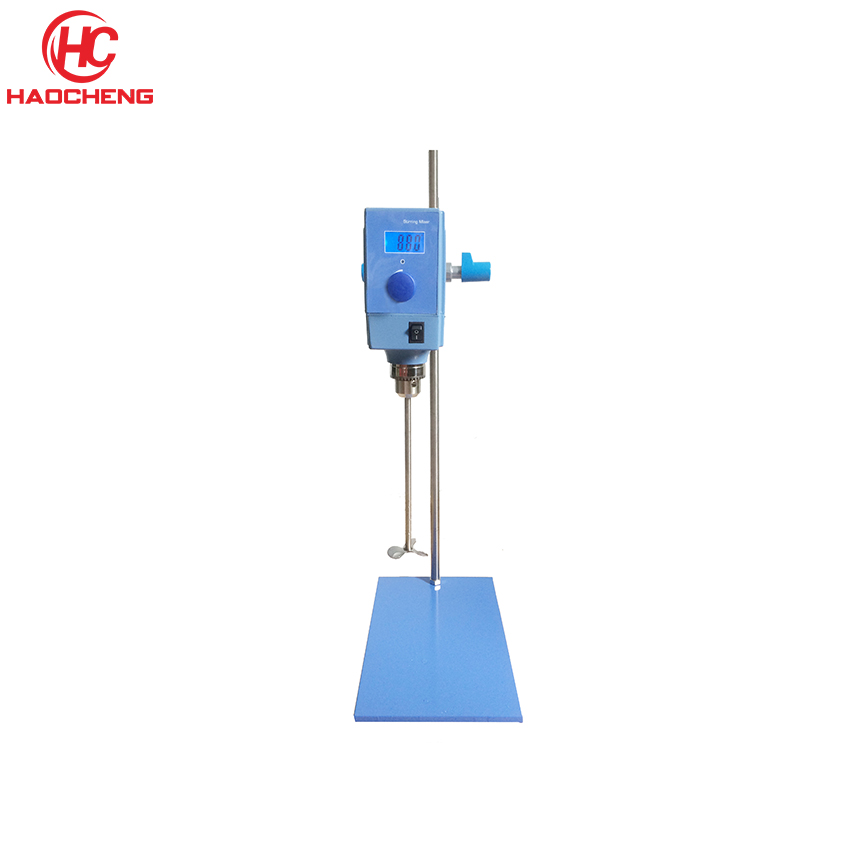

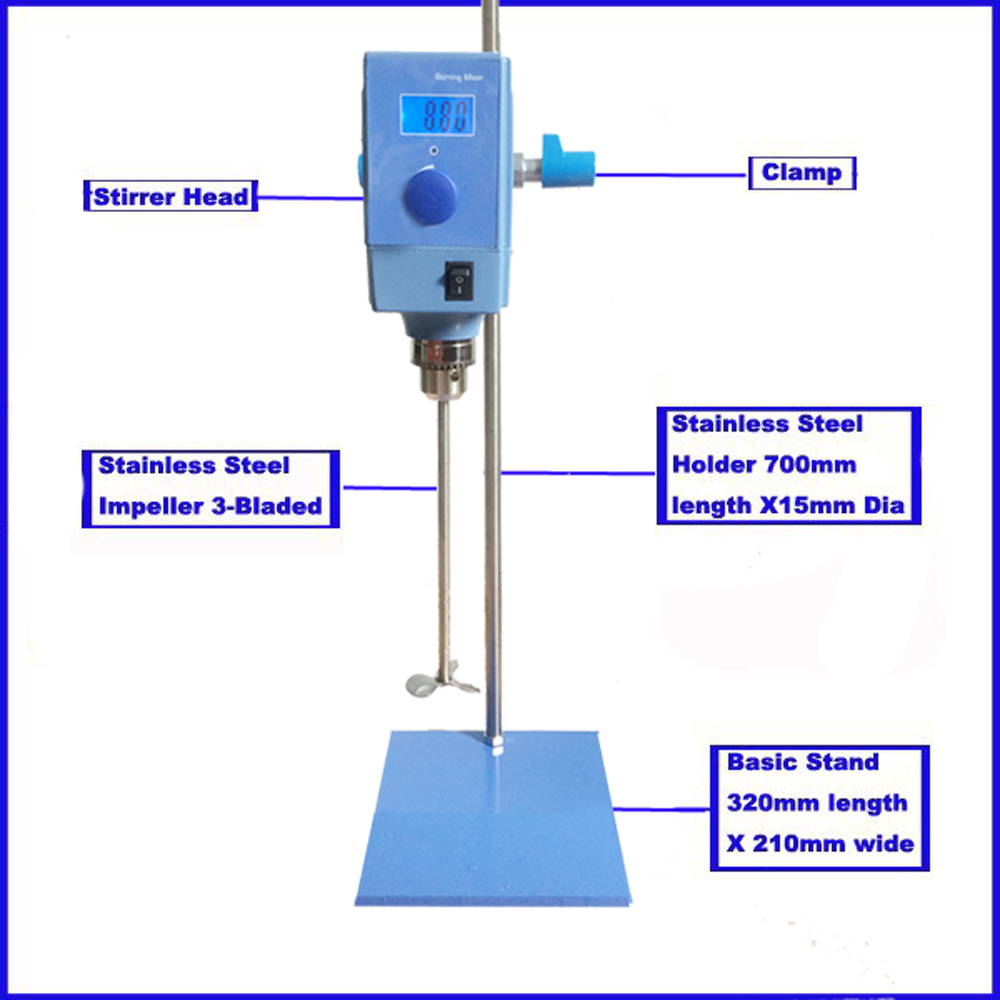

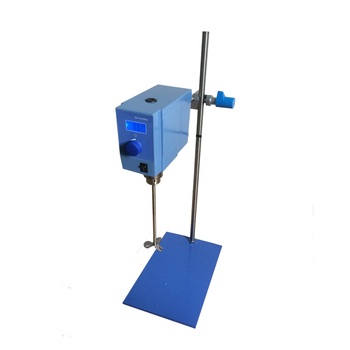

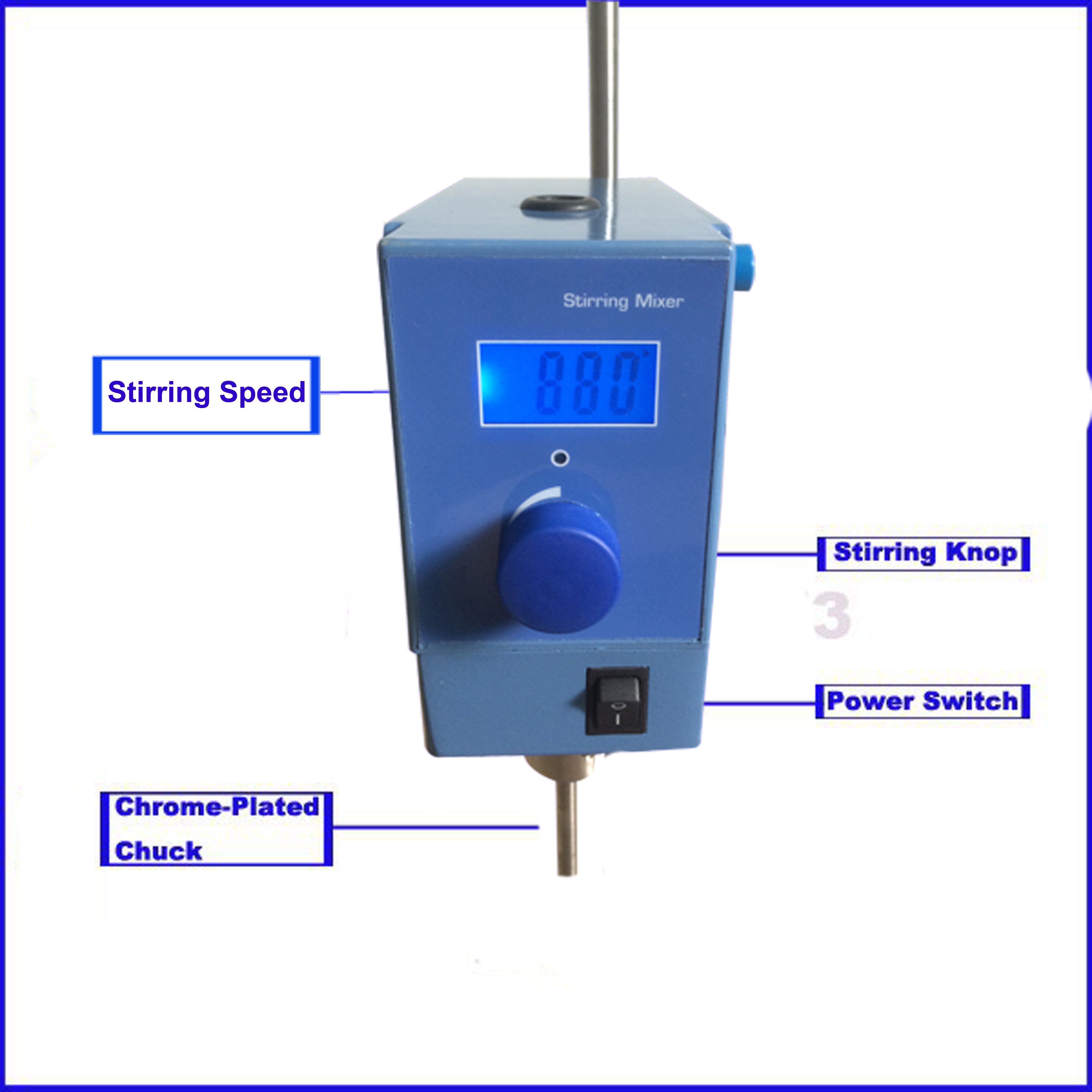

HM-C Series Overhead Stirrer with MCU Control

Introduction：

Widely used in chemical synthesis, pharmaceutical, physical and chemical analysis, petrochemical, cosmetics, health care, food, biotechnology and other fields.

Print the current page

Tel： +86-134-2513-4344

Email：hcinstrument@163.com

Share：
Order

                                                                      Two years warranty was offered

Note:



We have four different series about Overhead stirrer (HM-S series, HM-T series, HM-C series and HM-P series ).



The features as below:



HM-S series :digital LED display stirring speed, Round plate.



HM-T series: digital LCD display stirring speed and timer ,speed control with closed MCU control, Max timer set: 9999 min, Round plate.



HM-C series: digital LED display stirring speed,speed control with closed MCU control, Rotary encoder operation,Square plate,Constand stir speed



HM-P series: New model,digital display stirring speed and time,Micro-processor(Programmable)control ,FWD time 1 REV time 3 interval time Max 255sec (Max timer  set: 9999 min) , Round plate.



Characteristics:

1. High reliability, long continuous service, outstanding performance

2. The speed is accurate and controlled, easy operation

3. Brushless DC motor drive, low noise and maintenance free

4. Overload protection, motor would automatically stop in case of continuous overload

5. Constand stir speed



HM-C series is an experimental equipment for liquid mixing and agitation.It's suitable to mix kinds of liquids,

such as shampoo, shower gel,honey,paint,cosmetic and cigarette oil. It’s widely used in chemical synthesis,

pharmaceutical, physical and chemical analysis, petrochemical, cosmetics, health care, food, biotechnology

and other field.



Specifications

Model

HM-40C

HM-100C

HM-150C

HM-250C

Motor Power

5 0W

10 0W

15 0W

25 0W

Motor Type

Brushless DC Motor

Motor Torque

20 0m N.M

45 0m N.M

60 0m N.M

1 N.M

Voltage

220V/110 Optional

Stirring Volume (Water)

20 L

50L

80L

150L

Stir Speed Range

60- 1500 RPM

Speed Control System

Closed Loop MCU Control,Rotary Encoder Operation

Digital display

LCD

Stir Rod Length

3 5 0mm (Standard)

Stir Rod Material

SS 304

Holder Length

700mm

Chuck Clamping Range

Ø 1.5 -1 3

Ø 1.5 -1 3

Ø 1.5 -1 3

Ø 1.5 -1 3

Dimension ( CM )

69 x 39 x 20

Gross weight (KG )

1 1

11.5

12

12
