Your location：Home > Products > Low-temp Circulating Chiller > 4L Low Temperature Circulating Chiller for 2L ,5L Rotary Evaporator and Glass Reactor

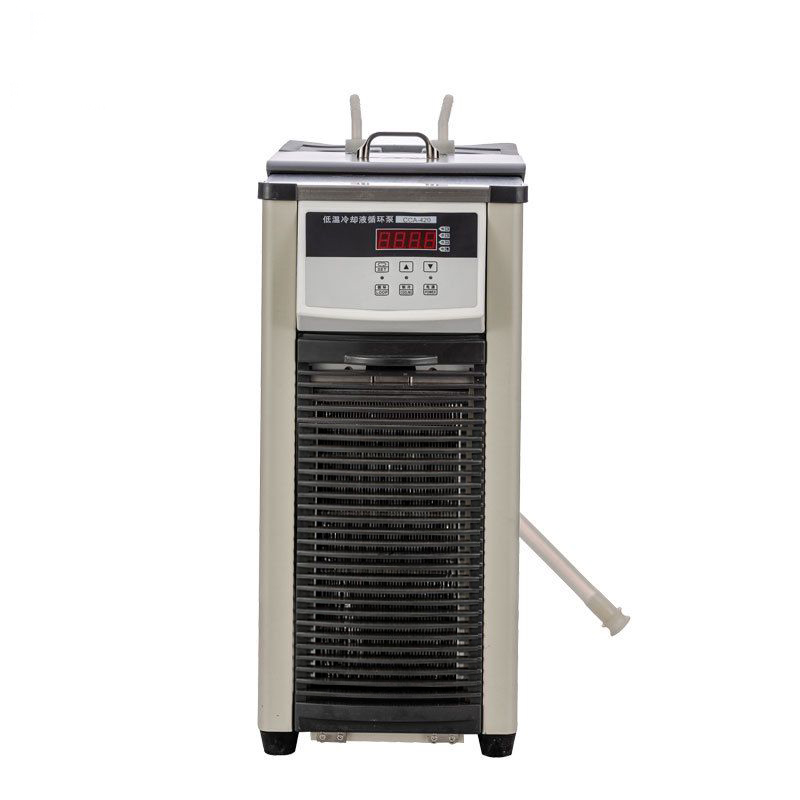

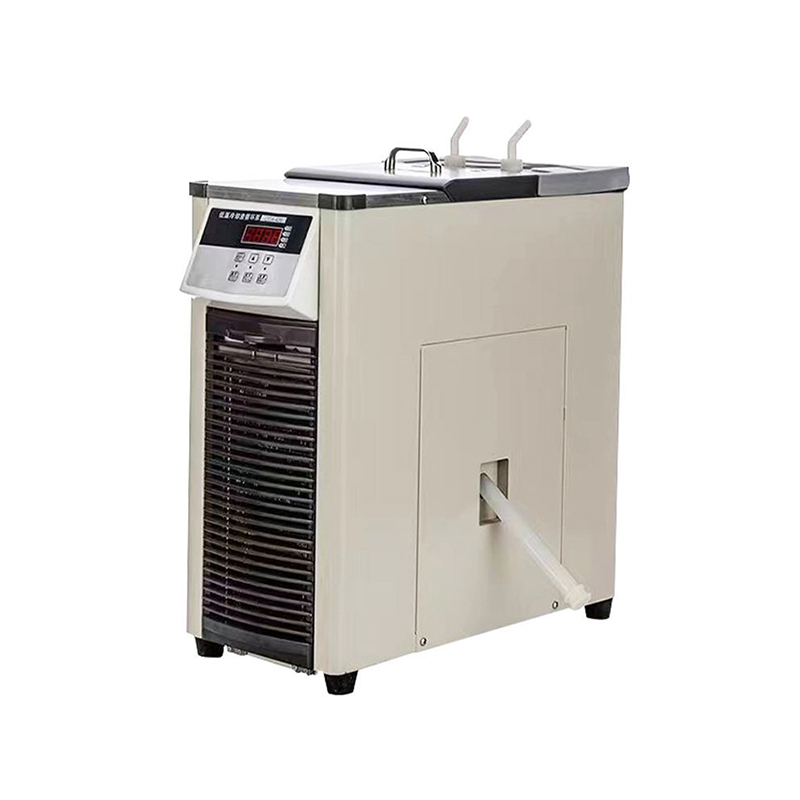

4L Low Temperature Circulating Chiller for 2L ,5L Rotary Evaporator and Glass Reactor

Introduction：

1) 4L /-20 2) Small and Less Space 3) Good Performance

Print the current page

Tel： +86-134-2513-4344

Email：hcinstrument@163.com

Share：
Order

Working principle:



This product is mechanically cooled by a totally enclosed compressor. The inner wall of the cooling tank has cooling copper coils. The refrigerant (Freon) continuously circulates through the coil on the inner wall of the water tank to cool the refrigerant in the tank. And then the refrigerant is conveyed to interlayer of the supporting equipment or the condensation coil through built-in circulation pump and external circulation pipeline. This method can cool the material in the reactor indirestly, and  also  cool & liquefie the steam in contact with condensation tube.

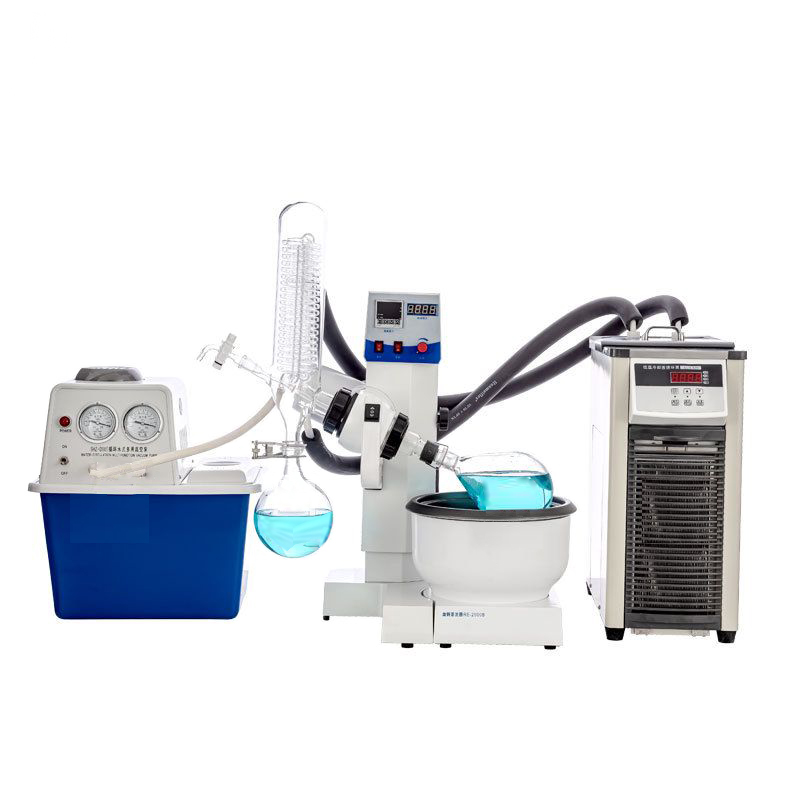

Generally speaking, this product can connect with the interlayer of a double-layer glass reactor, rotary evaporator, and condensation coil of the reactor for usage. It is also feasible to directly  put objects or containers which need to be cooled into the bath for cooling or reaction.

The outlet pipe of this product is connected to the lower inlet pipe of the kettle or condenser. The circulating liquid comes out from the upper circulation port and returns to the inlet of this product through the pipe, forming a complete circulation.

Specifications :




Name

Low temperature cooling liquid circulating pump

Model

HC-4/20

Usage temperature range

-20 ~room temperature

Environment temperature

5 ~35 ℃

Environment humidity

≤70% ventilation

Power supply

220V/50Hz, 110V/60Hz

Safety protection

Delay, over-current

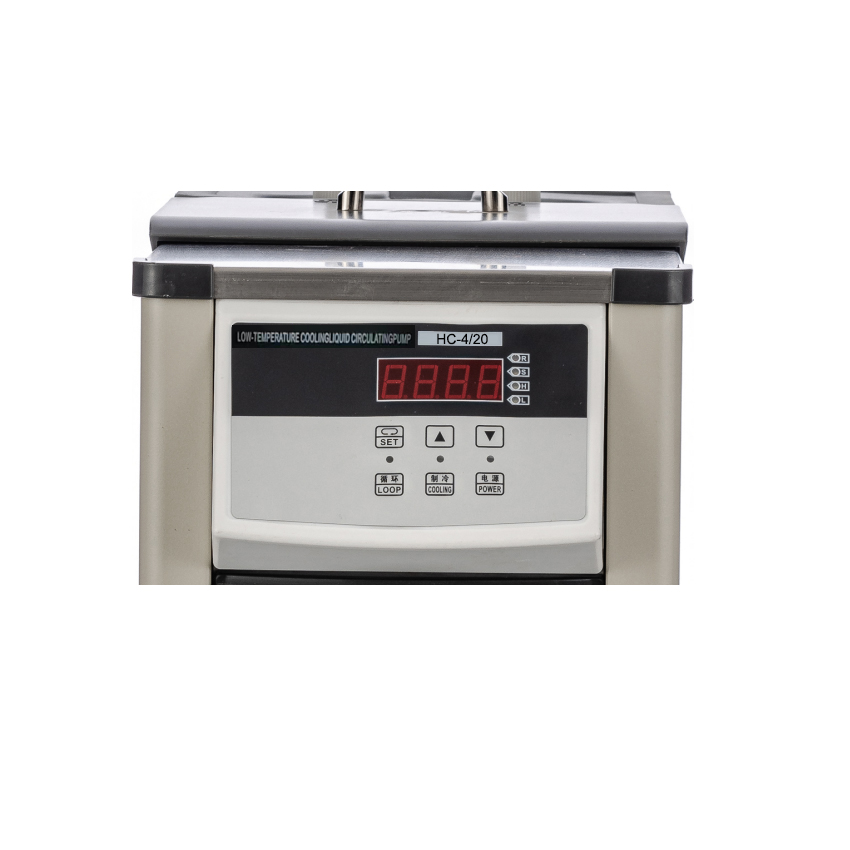

Display

LCD display, key operation

Temperature control accuracy

±0.1℃

Sensor

PT100

Total power

640W

Compressor

Specification

Small 1P

Quantity

1

Power

500W

Refrigerating capacity

1550W

Circulation pump

Power

100W

Lift

1.5-2.7M

Flow

8-16L/min

Pressure

≤0.4MPa

Air-cooling condenser

Power

40W

Heat exchange area

3.8m2

Air volume

584m³/h

Refrigerants

R134A

Condensation coil

Φ8 Nickel plated copper tube

Equipment material

Cold plate anti-corrosive spray

Water tank dimension & volume

220×155×120mm

About 4L

Cover opening

155×105mm

External circulation interface

Pagoda joint with Φ12mm outer diameter

Overall dimension(W*D*H)

250×520×560mm

Net weight

28KG

Packing dimension

580×310×560mm carton package 0.1m³

Packing weight

30KG
